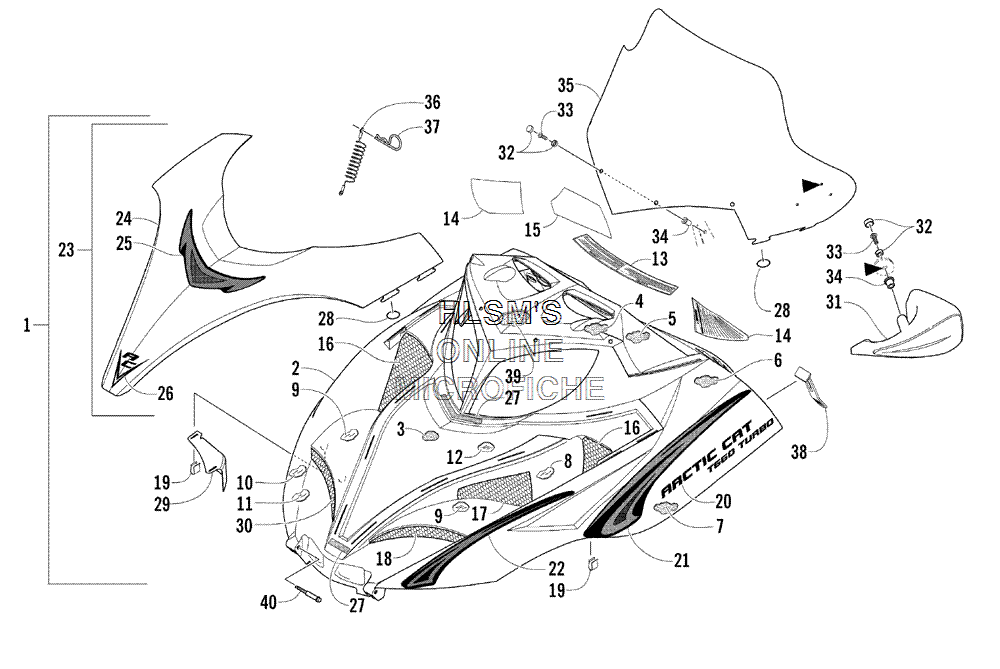

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11718-619 HOOD W/DECALS (INC. 2, 27 AND TWELVE NO. 28)HOOD W/DECALS (INC. 2, 27 AND TWELVE NO. 28)
-
21718-622 HOOD W/O DECALS (INC. 3, 18)HOOD W/O DECALS (INC. 3, 18)
-
30717-183 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
40717-186 FOAM, HOOD, GAUGE (RIGHT)FOAM, HOOD, GAUGE (RIGHT)
-
40717-187 FOAM, HOOD, GAUGE (LEFT)FOAM, HOOD, GAUGE (LEFT)
-
50717-190 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
50717-191 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
60717-188 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60717-189 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
70717-184 FOAM, HOOD (FRONT/RIGHT)FOAM, HOOD (FRONT/RIGHT)
-
70717-185 FOAM, HOOD (FRONT/LEFT)FOAM, HOOD (FRONT/LEFT)
-
83606-375 FOIL, HOOD, SIDEFOIL, HOOD, SIDE
-
93606-376 FOIL, HOOD (CENTER)FOIL, HOOD (CENTER)
-
103606-372 FOIL, HOOD (UPPER/RIGHT)FOIL, HOOD (UPPER/RIGHT)
-
103606-373 FOIL, HOOD (UPPER/LEFT)FOIL, HOOD (UPPER/LEFT)
-
112606-556 FOIL, HOODFOIL, HOOD
-
123606-374 FOIL, HOOD (LOWER/RIGHT)FOIL, HOOD (LOWER/RIGHT)
-
135611-837 DECAL, WARNING, BREAK, INNERDECAL, WARNING, BREAK, INNER
-
145611-840 DECAL, WARNING (ENGLISH)DECAL, WARNING (ENGLISH)
-
145611-841 DECAL, WARNING (FRENCH)DECAL, WARNING (FRENCH)
-
155611-836 DECAL REVERSEDECAL REVERSE
-
163606-236 SCREEN, HOOD (REAR/RIGHT)SCREEN, HOOD (REAR/RIGHT)
-
163606-237 SCREEN, HOOD (REAR/LEFT)SCREEN, HOOD (REAR/LEFT)
-
173606-928 SCREEN, HOOD (MIDDLE)SCREEN, HOOD (MIDDLE)
-
183606-235 SCREEN, HOOD (FRONT/LEFT)SCREEN, HOOD (FRONT/LEFT)
-
190123-987 CLIP, RETAININGCLIP, RETAINING
-
206611-184 EMBLEM, HOODEMBLEM, HOOD
-
216611-186 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
216611-187 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
226611-188 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
226611-189 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
231718-620 COVER, HOOD W/DECALS (INC. 24, 26)COVER, HOOD W/DECALS (INC. 24, 26)
-
243606-253 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
256611-190 DECAL, COVER (CENTER)DECAL, COVER (CENTER)
-
266611-185 EMBLEM, COVEREMBLEM, COVER
-
270619-946 TAPE, FOAM, 1 FTTAPE, FOAM, 1 FT
-
280616-032 O-RINGO-RING
-
291670-550 DEFLECTOR, AIR INTAKEDEFLECTOR, AIR INTAKE
-
303606-234 SCREEN, HOOD (FRONT/RIGHT)SCREEN, HOOD (FRONT/RIGHT)
-
312639-477 MIRROR, KIT (INC. SIX NO. 32, 34)MIRROR, KIT (INC. SIX NO. 32, 34)
-
320124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
330623-902 SCREW, MACHINESCREW, MACHINE
-
340623-845 NUT, EXPANSIONNUT, EXPANSION
-
353606-408 WINDSHIELDWINDSHIELD
-
362606-247 CABLE, HOODCABLE, HOOD
-
370623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
381606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
390717-192 FOAM, HOOD (UPPER/MIDDLE)FOAM, HOOD (UPPER/MIDDLE)
-
401623-164 SCREW, SHOULDERSCREW, SHOULDER
