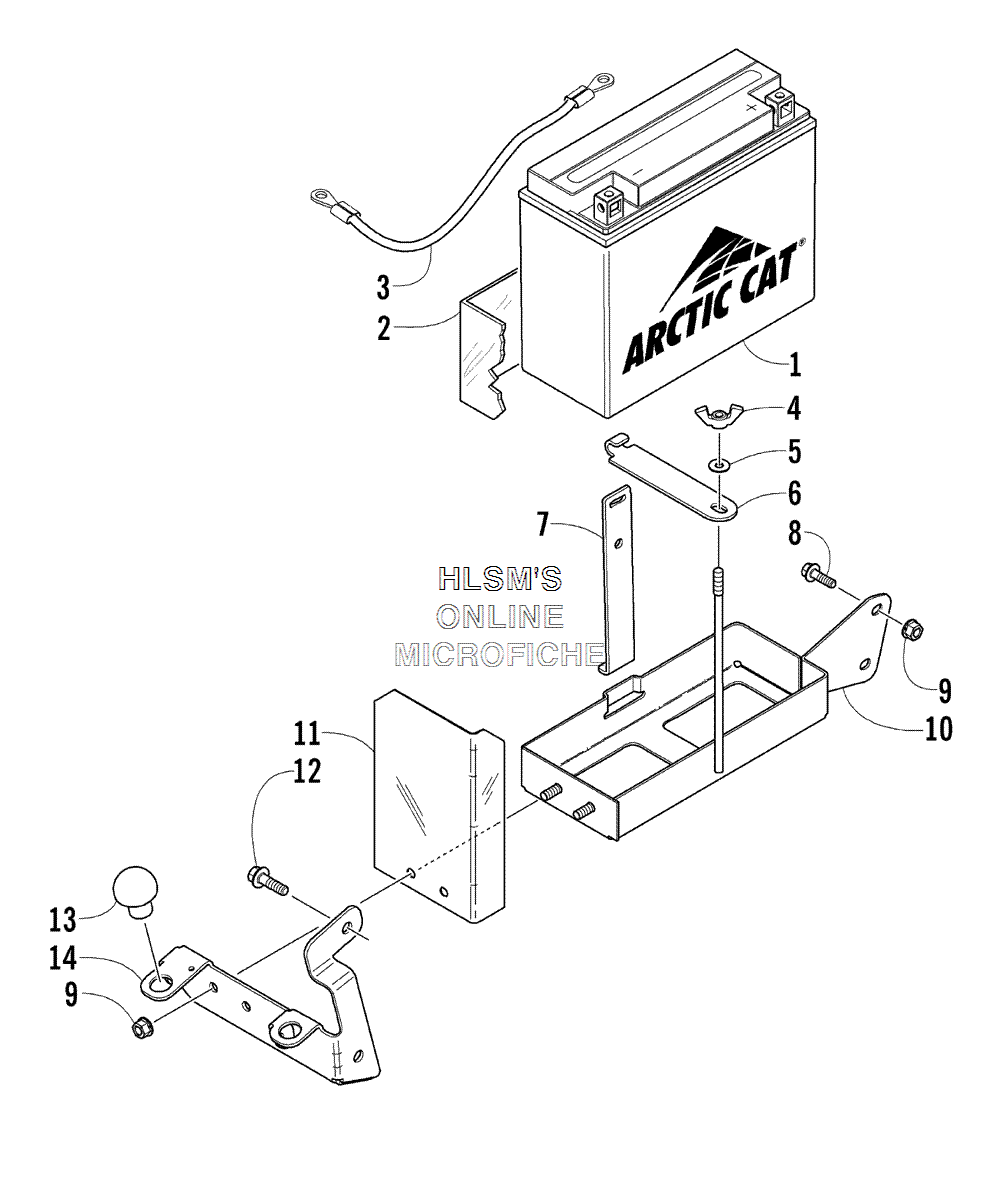

BATTERY ASSEMBLY для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
10745-230 BATTERY (INC. 2)BATTERY (INC. 2)
-
20645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
30645-476 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
40623-325 NUT, WINGNUT, WING
-
58050-217 WASHERWASHER
-
60645-243 STRAP, BATTERY HOLD, DOWN, TOPSTRAP, BATTERY HOLD, DOWN, TOP
-
70645-311 STRAP, BATTERY HOLD, DOWN, SIDESTRAP, BATTERY HOLD, DOWN, SIDE
-
88020-039 SCREW, CAPSCREW, CAP
-
98048-366 NUT, LOCKNUT, LOCK
-
100745-213 TRAY, BATTERYTRAY, BATTERY
-
110645-437 SHIELD, HEATSHIELD, HEAT
-
120623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130612-111 BUMPER, RUBBERBUMPER, RUBBER
-
140745-214 BRACKET, MOUNTING, BATTERY TRAYBRACKET, MOUNTING, BATTERY TRAY
