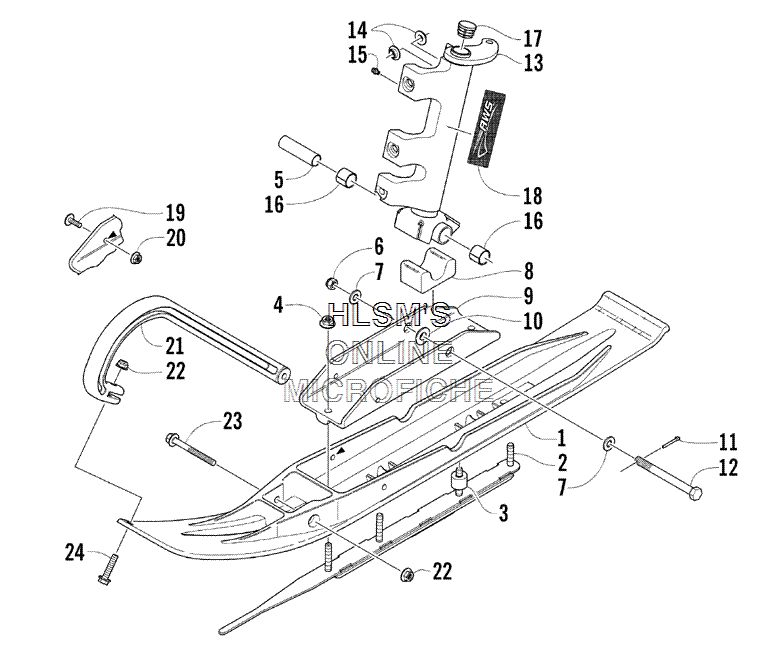

SKI AND SPINDLE ASSEMBLY для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11703-312 SKI, PLASTICSKI, PLASTIC
-
21703-212 WEARBARWEARBAR
-
30603-616 SPACERSPACER
-
48047-486 NUT, LOCKNUT, LOCK
-
50603-034 AXLE, SPINDLEAXLE, SPINDLE
-
60123-296 NUT, LOCKNUT, LOCK
-
70623-728 WASHERWASHER
-
80603-036 DAMPER, SKIDAMPER, SKI
-
90703-269 SADDLE, SKI (INC. 10)SADDLE, SKI (INC. 10)
-
100603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
110123-458 PIN, COTTERPIN, COTTER
-
120623-552 SCREW, CAPSCREW, CAP
-
130703-648 SPINDLE, STEERING (RIGHT) (INC. 14, 16)SPINDLE, STEERING (RIGHT) (INC. 14, 16)
-
130703-649 SPINDLE, STEERING (LEFT) (INC. 14, 16)SPINDLE, STEERING (LEFT) (INC. 14, 16)
-
140603-647 INSERT, SPINDLEINSERT, SPINDLE
-
150623-010 FITTING, GREASEFITTING, GREASE
-
160603-158 BEARINGBEARING
-
170623-831 CAP, SPINDLECAP, SPINDLE
-
186611-192 DECAL, "AWS", SPINDLE (RIGHT)DECAL, "AWS", SPINDLE (RIGHT)
-
186611-193 DECAL, "AWS", SPINDLE (LEFT)DECAL, "AWS", SPINDLE (LEFT)
-
198017-581 SCREW, MACHINESCREW, MACHINE
-
208048-366 NUT, LOCKNUT, LOCK
-
210603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
228048-426 NUT, LOCKNUT, LOCK
-
238020-143 SCREW, CAPSCREW, CAP
-
248020-135 SCREW, CAPSCREW, CAP
