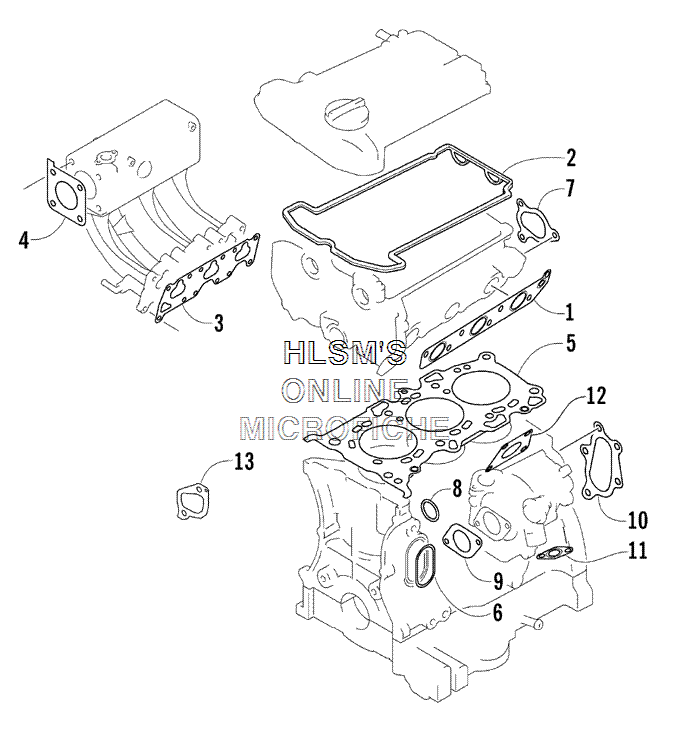

GASKET SET для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
-3006-961 COMPLETE GASKET SETCOMPLETE GASKET SET
-
13006-879 GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
23006-138 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
33006-205 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
43006-209 GASKET, THROTTLE BODYGASKET, THROTTLE BODY
-
53006-559 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
63006-953 O-RING, WATER PUMPO-RING, WATER PUMP
-
73006-232 GASKET, THERMOSTAT CASEGASKET, THERMOSTAT CASE
-
83006-234 O-RING, WATER INLET PIPEO-RING, WATER INLET PIPE
-
93006-874 GASKET, AIR INTAKE PIPEGASKET, AIR INTAKE PIPE
-
103006-833 GASKET, OUTLET PIPEGASKET, OUTLET PIPE
-
113006-872 GASKET, OIL DRAINGASKET, OIL DRAIN
-
123006-832 GASKET, EXHAUST MANIFOLD/TURBOCHARGERGASKET, EXHAUST MANIFOLD/TURBOCHARGER
-
133006-951 GASKET, ADJUSTERGASKET, ADJUSTER
