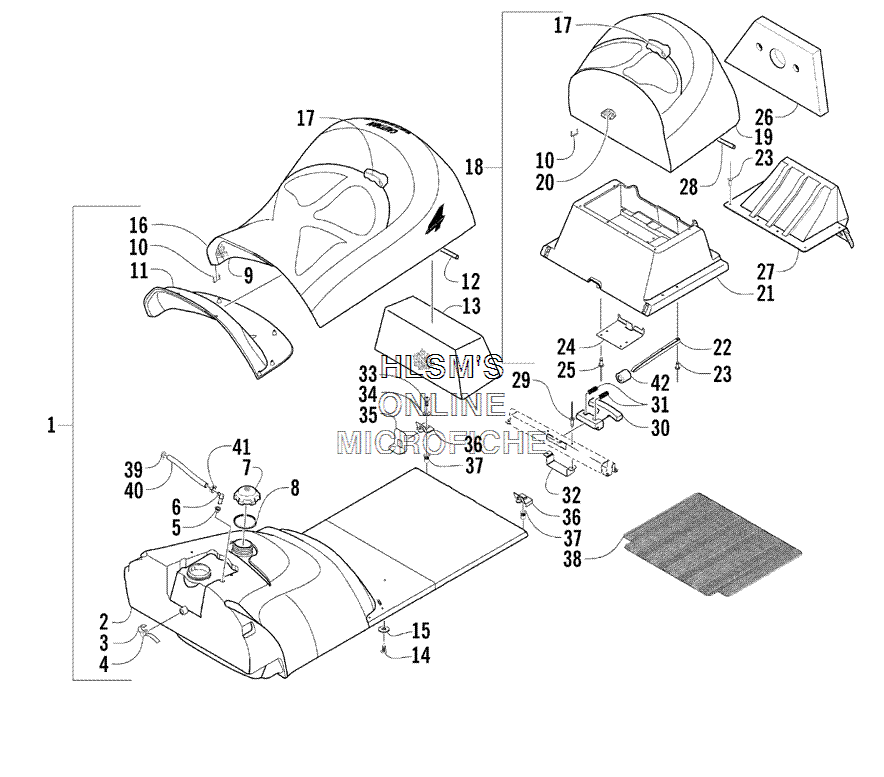

GAS TANK AND SEAT ASSEMBLY для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11718-781 COMPLETE SEAT ASSEMBLY (FRONT) (INC. 2, 16 AND ONE NO. 17)COMPLETE SEAT ASSEMBLY (FRONT) (INC. 2, 16 AND ONE NO. 17)
-
20770-589 TANK, GAS/SEAT, BASE (INC. 3, 8)TANK, GAS/SEAT, BASE (INC. 3, 8)
-
30670-289 ?TAPE, TEFLON?TAPE, TEFLON
-
40670-243 PLUG, GAS TANKPLUG, GAS TANK
-
51670-325 GROMMETGROMMET
-
61670-494 VENT, GAS TANKVENT, GAS TANK
-
70670-341 CAP, GAS TANK (INC. 8)CAP, GAS TANK (INC. 8)
-
80109-733 SEAL, TANK CAPSEAL, TANK CAP
-
91706-158 FOAM, SEAT CUSHION (FRONT)FOAM, SEAT CUSHION (FRONT)
-
100624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
111606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
122606-943 WIRE, SEATWIRE, SEAT
-
132606-133 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
140623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
158050-217 WASHERWASHER
-
162706-677 COVER, SEAT (FRONT) (INC. ONE NO. 17)COVER, SEAT (FRONT) (INC. ONE NO. 17)
-
173606-363 WIRE, SEATWIRE, SEAT
-
181718-548 COMPLETE SEAT ASSEMBLY, PASSENGER (INC. 10, 19, 28, AND ONE NO. 17)COMPLETE SEAT ASSEMBLY, PASSENGER (INC. 10, 19, 28, AND ONE NO. 17)
-
192706-352 COVER, SEAT, PASSENGER (INC. ONE NO. 17)COVER, SEAT, PASSENGER (INC. ONE NO. 17)
-
201706-159 FOAM, SEAT, PASSENGERFOAM, SEAT, PASSENGER
-
212606-066 SEAT, BASE, PASSENGERSEAT, BASE, PASSENGER
-
222606-188 BRACKET, HOLD, DOWN, SEAT (RIGHT)BRACKET, HOLD, DOWN, SEAT (RIGHT)
-
222606-189 BRACKET, HOLD, DOWN, SEAT (LEFT)BRACKET, HOLD, DOWN, SEAT (LEFT)
-
230623-853 RIVETRIVET
-
242606-161 PLATE, STRIKEPLATE, STRIKE
-
250623-778 RIVETRIVET
-
260617-098 FOAM, SEAT, BASE/TAILLIGHTFOAM, SEAT, BASE/TAILLIGHT
-
271606-191 EXTENSION, TOOLBOXEXTENSION, TOOLBOX
-
282606-942 WIRE, SEATWIRE, SEAT
-
298060-706 RIVETRIVET
-
302606-159 HANDLE, BACKREST, LATCHHANDLE, BACKREST, LATCH
-
312606-154 SPRING, COMPRESSIONSPRING, COMPRESSION
-
322706-130 BRACKET, RETAINER, LATCHBRACKET, RETAINER, LATCH
-
338017-580 SCREW, MACHINESCREW, MACHINE
-
348050-222 WASHERWASHER
-
352606-268 GUARD, SEAT (RIGHT)GUARD, SEAT (RIGHT)
-
352606-269 GUARD, SEAT (LEFT)GUARD, SEAT (LEFT)
-
362706-134 BRACKET, HOLD, DOWN, RECEIVER (RIGHT)BRACKET, HOLD, DOWN, RECEIVER (RIGHT)
-
362706-135 BRACKET, HOLD, DOWN, RECEIVER (LEFT)BRACKET, HOLD, DOWN, RECEIVER (LEFT)
-
370623-582 INSERTINSERT
-
382606-180 PAD, RUBBERPAD, RUBBER
-
390623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
406101-001 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
406101-009 HOSE, VENT (50 FT)HOSE, VENT (50 FT)
-
411623-233 CLAMP, HOSECLAMP, HOSE
-
420612-107 SPACERSPACER
