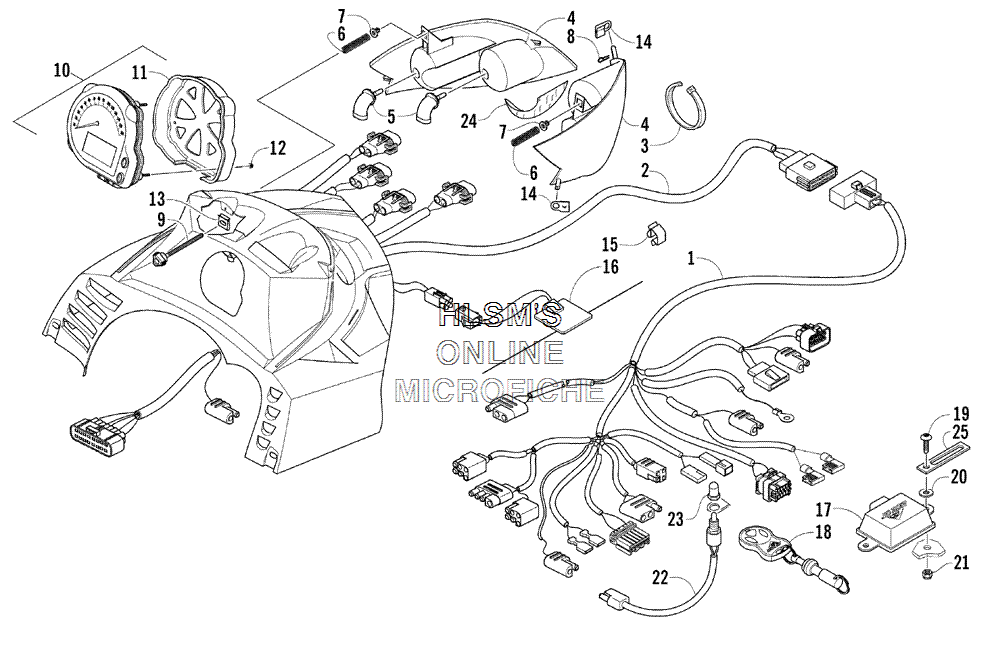

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11686-095 HARNESS, MAINHARNESS, MAIN
-
21686-075 HARNESS, HOODHARNESS, HOOD
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40609-530 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)
-
40609-531 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)
-
50609-251 BULB, HEADLIGHTBULB, HEADLIGHT
-
60623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
71623-025 INSERTINSERT
-
81623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
100620-292 TACHOMETER/SPEEDOMETER (INC. 11, 12)TACHOMETER/SPEEDOMETER (INC. 11, 12)
-
110620-281 BRACKET, RETAININGBRACKET, RETAINING
-
120620-280 NUT W/WASHERNUT W/WASHER
-
131623-189 CLIP, ADJUSTER SCREWCLIP, ADJUSTER SCREW
-
141623-202 CLIP, HEADLIGHT (RIGHT)CLIP, HEADLIGHT (RIGHT)
-
141623-201 CLIP, HEADLIGHT (LEFT)CLIP, HEADLIGHT (LEFT)
-
151623-200 CLIP, WIRECLIP, WIRE
-
160630-189 ANTENNA, CONTROL MODULEANTENNA, CONTROL MODULE
-
170630-186 MODULE, CONTROL, REMOTE STARTMODULE, CONTROL, REMOTE START
-
180630-187 CONTROL REMOTECONTROL REMOTE
-
198017-397 SCREW, MACHINESCREW, MACHINE
-
200123-802 WASHERWASHER
-
218041-246 NUT, LOCKNUT, LOCK
-
220630-011 SWITCH, HOODSWITCH, HOOD
-
230630-013 BOOT, SWITCHBOOT, SWITCH
-
243606-370 FOIL, HEADLIGHT (RIGHT)FOIL, HEADLIGHT (RIGHT)
-
243606-371 FOIL, HEADLIGHT (LEFT)FOIL, HEADLIGHT (LEFT)
-
253002-964 CLAMP, WIRECLAMP, WIRE
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- ALTERNATOR ASSEMBLY
- BACKREST AND TAILLIGHT ASSEMBLY
- BATTERY ASSEMBLY
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CAM CHAIN ASSEMBLY
- CAMSHAFT/VALVE ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKSHAFT ASSEMBLY
- CYLINDER BLOCK/BASE ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- DELIVERY PIPE ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/REVERSE DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- DROPCASE AND CHAIN TENSION ASSEMBLY
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- EXHAUST MANIFOLD ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- FUEL PUMP ASSEMBLY
- GAS TANK AND SEAT ASSEMBLY
- GASKET SET
- HANDLEBAR AND CONTROLS
- • HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HITCH ASSEMBLY
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- INTAKE MANIFOLD ASSEMBLY
- INTERCOOLER ASSEMBLY
- OIL PAN ASSEMBLY
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION REAR ARM ASSEMBLY
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STARTER MOTOR ASSEMBLY
- STEERING POST ASSEMBLY
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TIMING CHAIN COVER/OIL PUMP ASSEMBLY
- TUNNEL AND REAR BUMPER
- TURBOCHARGER ASSEMBLY
- WATER PUMP AND THERMOSTAT ASSEMBLIES
