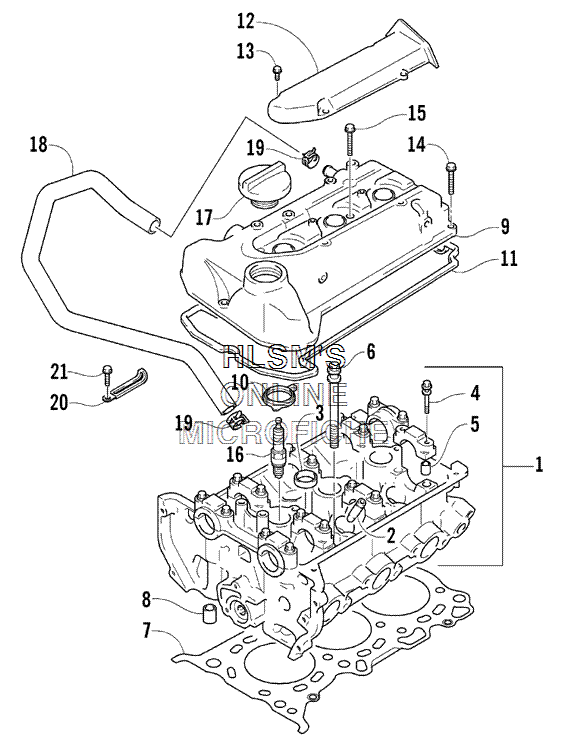

CYLINDER HEAD ASSEMBLY для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
13006-757 CYLINDER HEAD ASSEMBLY (INC. 2, 5)CYLINDER HEAD ASSEMBLY (INC. 2, 5)
-
23006-132 GUIDE, VALVEGUIDE, VALVE
-
33004-782 PLUGPLUG
-
43006-134 BOLT, CAMSHAFT CAPBOLT, CAMSHAFT CAP
-
53423-043 PIN, CAMSHAFT CAP DOWELPIN, CAMSHAFT CAP DOWEL
-
63006-133 BOLT, CAMSHAFT HOUSINGBOLT, CAMSHAFT HOUSING
-
73006-559 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
83006-115 PIN, DOWELPIN, DOWEL
-
93006-136 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
103006-137 GASKET, SPARK PLUG HOLEGASKET, SPARK PLUG HOLE
-
113006-138 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
123006-856 COVER, COILCOVER, COIL
-
133006-101 BOLT, COIL COVERBOLT, COIL COVER
-
143004-756 BOLT, CYLINDER HEAD COVERBOLT, CYLINDER HEAD COVER
-
153423-119 BOLT, CYLINDER HEAD COVERBOLT, CYLINDER HEAD COVER
-
160217-719 SPARK PLUG (NGK KR8AI)SPARK PLUG (NGK KR8AI)
-
173006-952 CAP, OIL FILLERCAP, OIL FILLER
-
183006-758 HOSE, BREATHERHOSE, BREATHER
-
193008-488 CLAMP, HOSECLAMP, HOSE
-
203006-580 CLAMP, WIRECLAMP, WIRE
-
213004-338 BOLTBOLT
