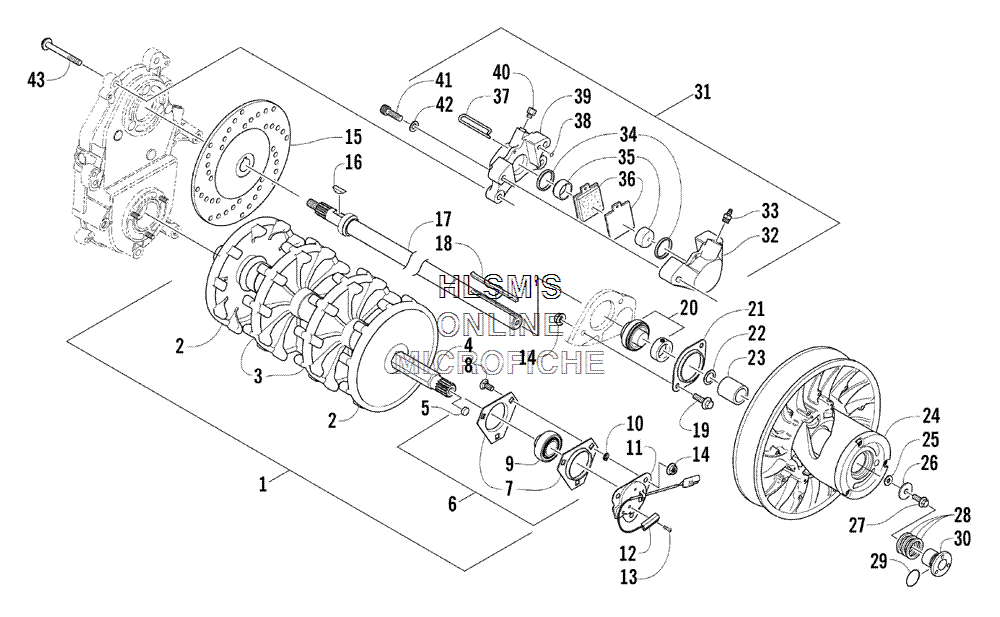

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
10728-117 TRACK DRIVE ASSEMBLY (INC. 2, 10)TRACK DRIVE ASSEMBLY (INC. 2, 10)
-
21602-203 SPROCKET, DRIVE, OUTERSPROCKET, DRIVE, OUTER
-
31602-507 SPROCKET, DRIVE, INNERSPROCKET, DRIVE, INNER
-
41602-585 DRIVESHAFTDRIVESHAFT
-
50630-167 MAGNET, DISCMAGNET, DISC
-
60702-567 PLATE, FLANGE, BEARING ASSEMBLY (INC. 7, 10)PLATE, FLANGE, BEARING ASSEMBLY (INC. 7, 10)
-
70602-198 PLATE, FLANGEPLATE, FLANGE
-
88011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
91602-374 BEARING, 1 IN.BEARING, 1 IN.
-
100623-810 RING, SOLDERRING, SOLDER
-
113606-244 BRACKET, SENSORBRACKET, SENSOR
-
120630-178 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
130623-462 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
148048-426 NUT, LOCKNUT, LOCK
-
151602-205 DISC, BRAKEDISC, BRAKE
-
160602-598 KEYKEY
-
170702-562 SHAFT, DRIVENSHAFT, DRIVEN
-
180602-170 KEYKEY
-
198020-132 SCREW, CAPSCREW, CAP
-
201602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
210602-892 PLATE, FLANGEPLATE, FLANGE
-
220623-118 WASHERWASHER
-
220623-119 WASHERWASHER
-
232604-713 SPACER, CLUTCHSPACER, CLUTCH
-
240726-199 CLUTCH, DRIVENCLUTCH, DRIVEN
-
250123-053 WASHERWASHER
-
260123-260 WASHERWASHER
-
278020-130 SCREW, CAPSCREW, CAP
-
280648-714 WASHERWASHER
-
280648-715 WASHERWASHER
-
280648-716 WASHERWASHER
-
290648-441 O-RINGO-RING
-
300648-741 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
310602-829 CALIPER, BRAKE, ASSEMBLY (INC. 32, 42)CALIPER, BRAKE, ASSEMBLY (INC. 32, 42)
-
330602-707 SCREW, BLEED, ASSEMBLYSCREW, BLEED, ASSEMBLY
-
340602-583 O-RINGO-RING
-
350602-708 PISTONPISTON
-
360702-229 PAD, BRAKE, SET (INC. 37)PAD, BRAKE, SET (INC. 37)
-
370602-706 PIN, RETAININGPIN, RETAINING
-
380602-729 O-RING, HOUSINGO-RING, HOUSING
-
400602-590 FITTING, ADAPTERFITTING, ADAPTER
-
418005-677 SCREW, CAPSCREW, CAP
-
428050-272 WASHERWASHER
-
438020-315 SCREW, CAPSCREW, CAP
