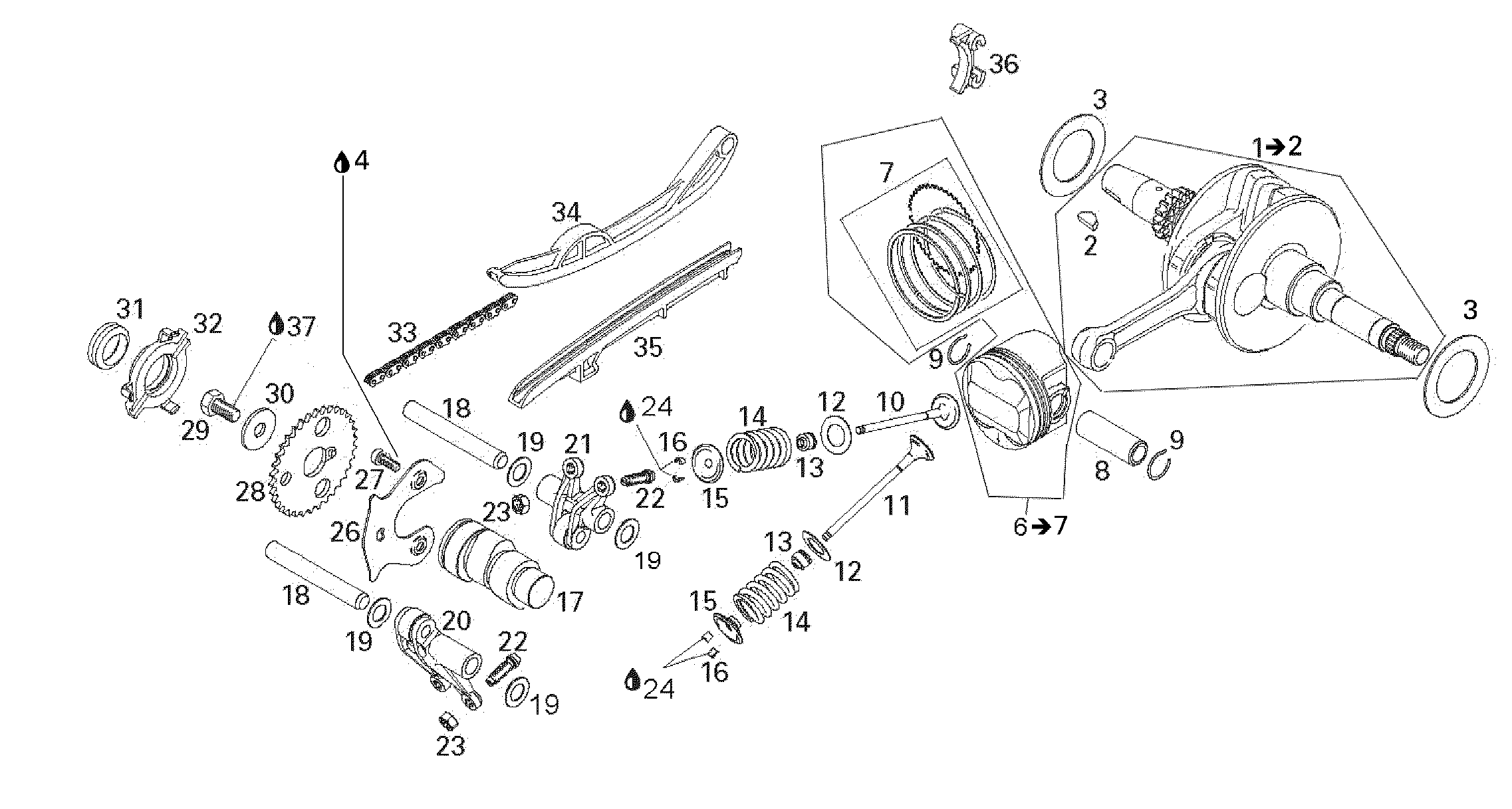

01- Crankshaft And Pistons для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1420296420 Crankshaft Ass'y. Includes 1 To 2Crankshaft Ass'y. Includes 1 To 2
-
2420246570 Woodruff KeyWoodruff Key
-
3420627110 Thrust WasherThrust Washer
-
4293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
6420296700 Piston Ass'y. Includes 6 To 7Piston Ass'y. Includes 6 To 7
-
7420296704 Piston Ring SetPiston Ring Set
-
8420216210 Piston PinPiston Pin
-
9420245805 Circlip PistonCirclip Piston
-
10A14711179000 Inlet Valve 20 mmInlet Valve 20 mm
-
11A14721179000 Exhaust Valve 18 mmExhaust Valve 18 mm
-
12420227451 Thrust WasherThrust Washer
-
13A12209179000 Seal ValveSeal Valve
-
14A14751179000 Valve SpringValve Spring
-
15A14771179000 Valve Spring RetainerValve Spring Retainer
-
16A14781179000 Valve CotterValve Cotter
-
17A14400179000 CamshaftCamshaft
-
18A14451179000 PinPin
-
19420627100 Thrust WasherThrust Washer
-
20A14434179000 Rocket Arm ExhaustRocket Arm Exhaust
-
21A14433179000 Rocket Arm InletRocket Arm Inlet
-
22420241335 Adjustment Screw M6 X 0,75''Adjustment Screw M6 X 0,75''
-
23420242910 Hex Nut M6Hex Nut M6
-
24293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
26A14456179000 Retaining PlateRetaining Plate
-
27420241841 Socket Screw M5 x 12Socket Screw M5 x 12
-
28A14321179000 Timing Gear 34TTiming Gear 34T
-
29207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
30A941050824020 WasherWasher
-
31A91420179000 V-ringV-ring
-
32A14410179000 CoverCover
-
33420297932 Camshaft ChainCamshaft Chain
-
34A14550179000 Chain Tension GuideChain Tension Guide
-
35A14500179000 Chain GuideChain Guide
-
36A14524179000 Chain GuideChain Guide
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
