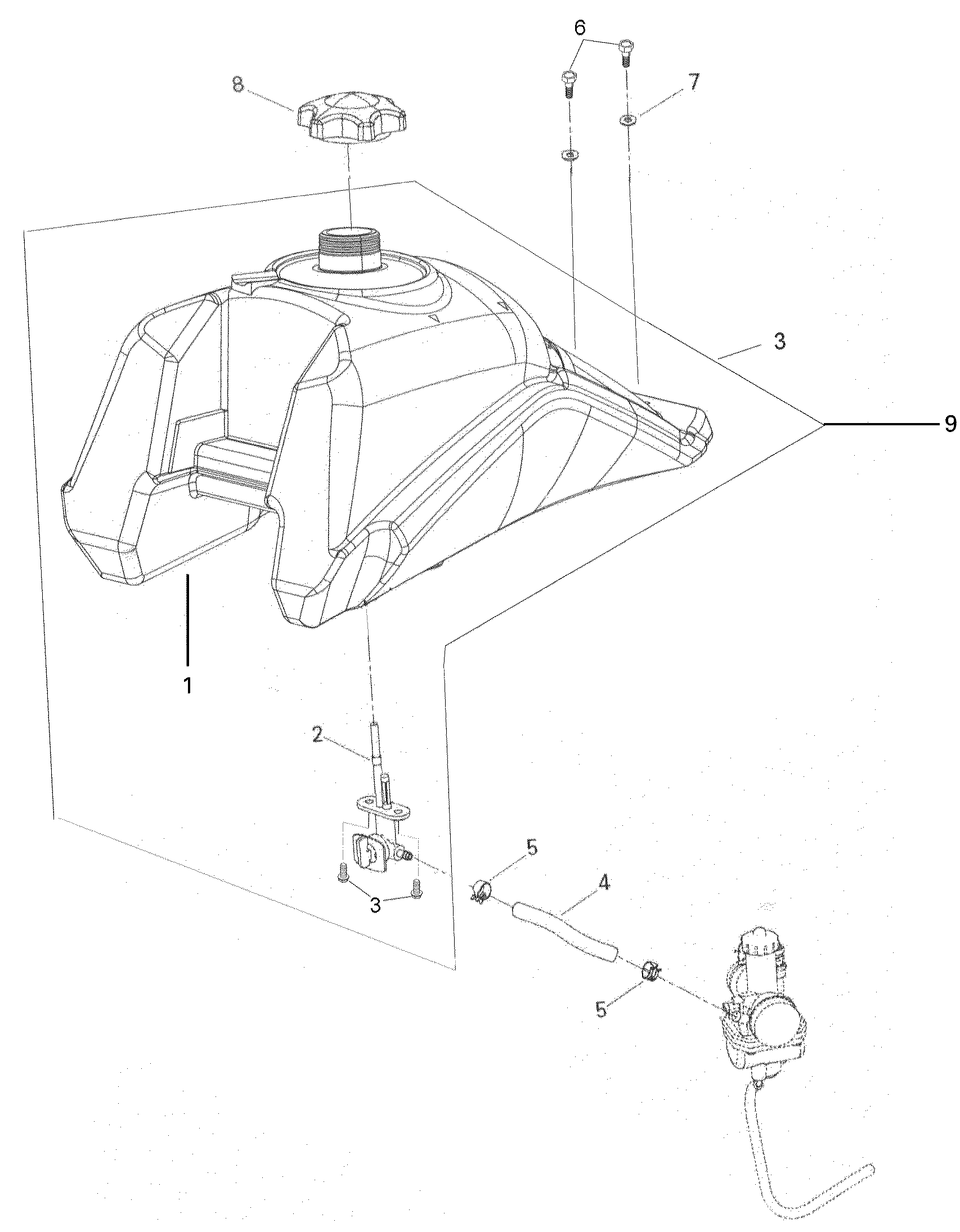

02- Fuel System для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A17500179000 Fuel TankFuel Tank
-
2709000082 Fuel ValveFuel Valve
-
3A960000601408C Hex Screw M5 X 14Hex Screw M5 X 14
-
4415079800 Hose 1/4''Hose 1/4''
-
5414415200 Universal Spring ClampUniversal Spring Clamp
-
6A9200306020 Torx Button Head Screw M6 X 25Torx Button Head Screw M6 X 25
-
7250200029 Washer M6Washer M6
-
8A17620179000 Fuel CapFuel Cap
