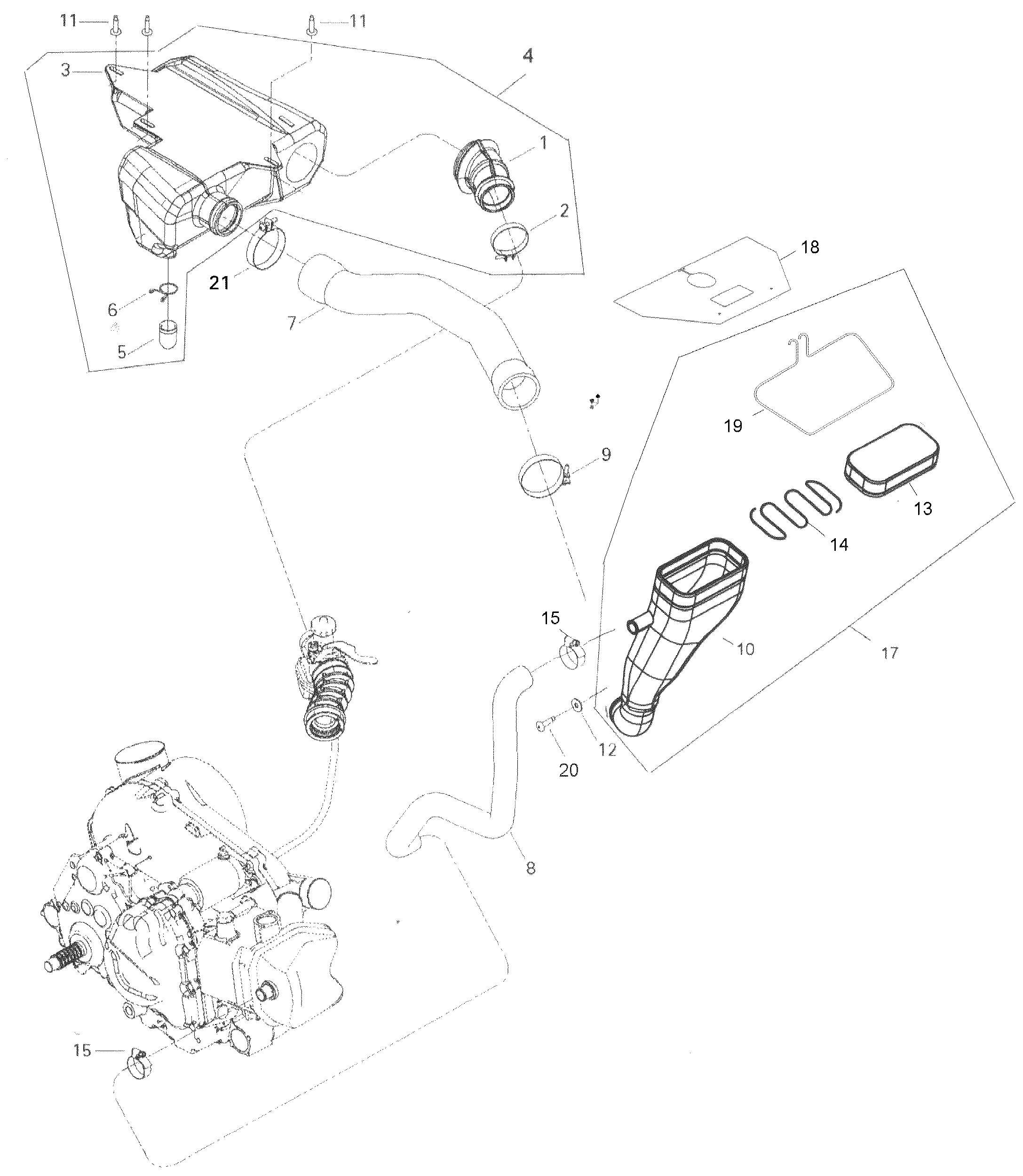

02- Air Intake Silencer для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A17100179000 Intake AdaptorIntake Adaptor
-
2293650151 Gemi ClampGemi Clamp
-
3A17206179000 Intake SilencerIntake Silencer
-
5A17219179000 Drain TubeDrain Tube
-
6A9451023000 Retainer ClipRetainer Clip
-
7A17254179000 Vent HoseVent Hose
-
8A17257179000 Vent HoseVent Hose
-
9A9451455000 Gemi ClampGemi Clamp
-
10A17260179000 Vent HoseVent Hose
-
11210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
12250200029 Washer M6Washer M6
-
13A17261179000 FoamFoam
-
14A17262179000 BracketBracket
-
15A9451430000 Hose ClampHose Clamp
-
16A941020721040 Rubber Screw. Not IllustratedRubber Screw. Not Illustrated
-
18A80115179000 Rubber SealRubber Seal
-
19A17274179001 Vent Hose BracketVent Hose Bracket
-
20A9200306020 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
21A9451458000 ClampClamp
