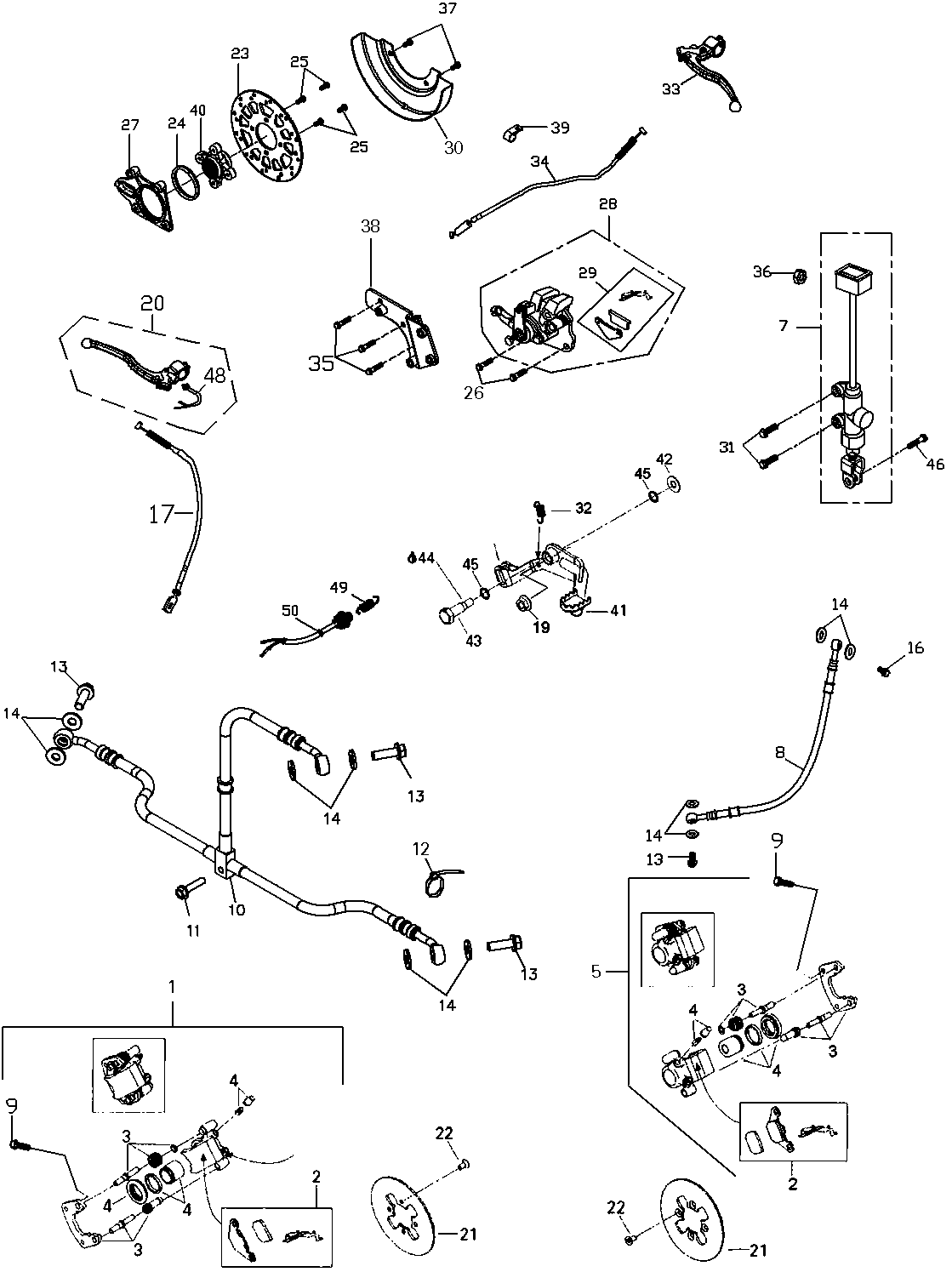

06- Hydraulic Brakes Europe для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A4500017900A Caliper-rhCaliper-rh
-
2A45120179000 Front Brake Pad SetFront Brake Pad Set
-
3705600286 Boot KitBoot Kit
-
4A4504017900A Piston-setPiston-set
-
5A4520017900A Caliper-lhCaliper-lh
-
7A4350017900A Rear Master Cylinder Ass'yRear Master Cylinder Ass'y
-
8A4346017900A Hose Brake RearHose Brake Rear
-
9A9600008016GLZ Hex Flanged Bolt M8 X 16, Scotch GripHex Flanged Bolt M8 X 16, Scotch Grip
-
10A45570179000 Flexible HoseFlexible Hose
-
11A9200306035 Socket Screw M6 X 35Socket Screw M6 X 35
-
12414115200 Tie-rap 180 mmTie-rap 180 mm
-
13A45456107000 Bolt-banjoBolt-banjo
-
14A941031015012 Copper WasherCopper Washer
-
15A4556017900A Vertical TubeVertical Tube
-
16A43501197000 Bolt-banjoBolt-banjo
-
17A43490179000 Brake CableBrake Cable
-
18207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20A53170179000 Handle-throttlHandle-throttl
-
21705600223 Brake DiscBrake Disc
-
22235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
23A4501519700A Brake DiscBrake Disc
-
24A945117800S ClipClip
-
25A45016146000 Screw-hex.flangeScrew-hex.flange
-
26A960001002814GL Hex. Flanged ScrewHex. Flanged Screw
-
27A52120179000 Rear Axle Adjuster BracketRear Axle Adjuster Bracket
-
28A4300017900A Caliper Brake RearCaliper Brake Rear
-
29A43120179000 Brake Pad KitBrake Pad Kit
-
30A45018179000 Rear Brake Disc CoverRear Brake Disc Cover
-
31207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
32705600288 Brake Pedal SpringBrake Pedal Spring
-
33A5317917900A Brake HandleBrake Handle
-
34A4347017900A Panking Brake CablePanking Brake Cable
-
35205081660 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
36A9035006000 Nylon Nut M6Nylon Nut M6
-
37207681244 Hex. Flanged ScrewHex. Flanged Screw
-
38A43502179000 Rear Master Cylinder BracketRear Master Cylinder Bracket
-
39A11352179000 Open ClampOpen Clamp
-
40A42106179000 Bushing-weldedBushing-welded
-
41A4650017900B Brake Pedal welded paintedBrake Pedal welded painted
-
42A941051225010 WasherWasher
-
43705600201 PivotPivot
-
44293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
45293300053 O-RingO-Ring
-
46A9120006041 Socket Head Screw M6 X 41Socket Head Screw M6 X 41
-
47A53178179000 LH Brake Handle LeverLH Brake Handle Lever
-
48A35350108000 Brake Light SwitchBrake Light Switch
-
49A35357197000 Stop Switch SpringStop Switch Spring
-
50A3534016900A Brake Switch WireBrake Switch Wire
