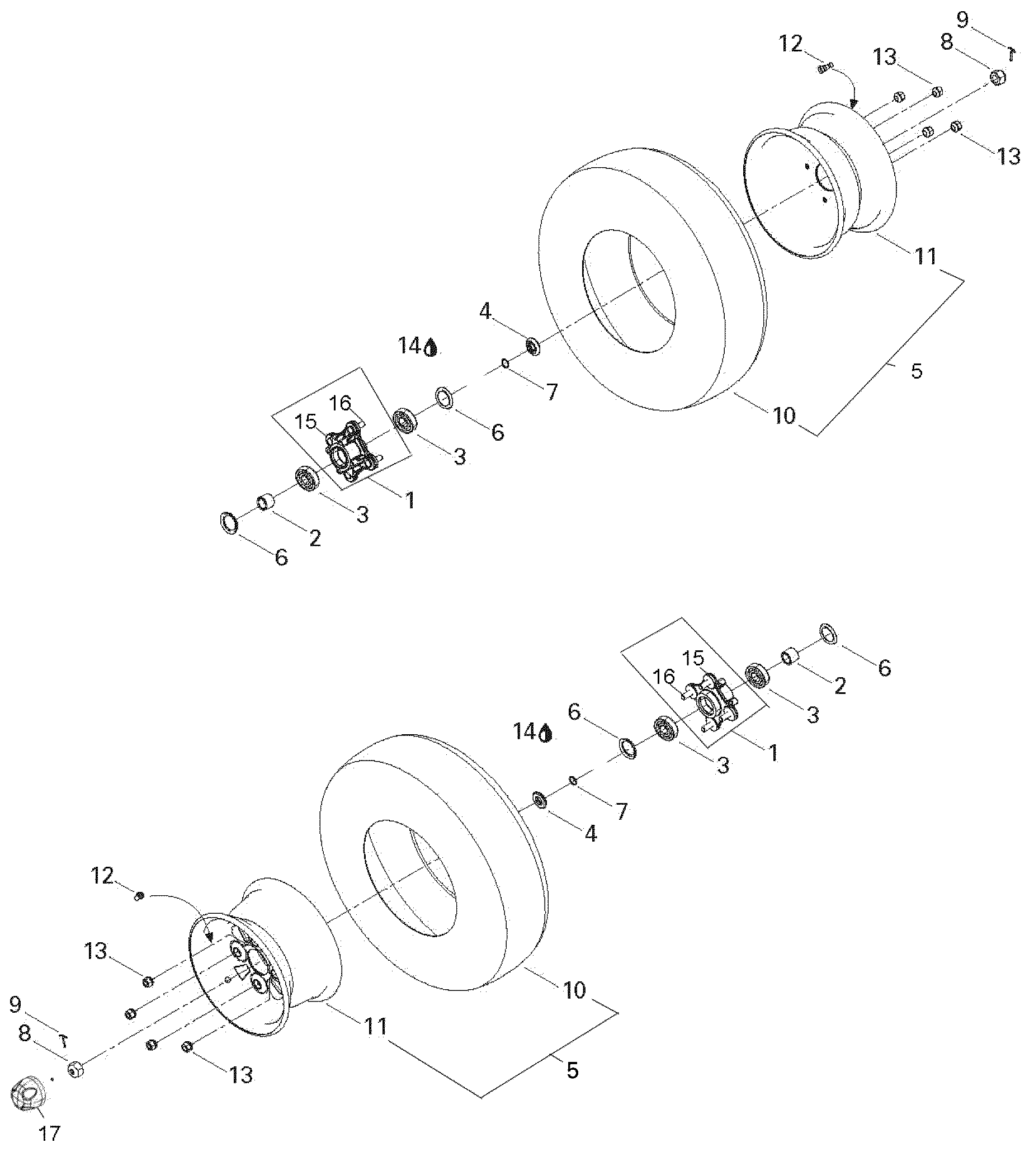

07- Drive System, Front для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A42709179000 Wheel Hub Ass'yWheel Hub Ass'y
-
2705400113 Inside BushingInside Bushing
-
3293350049 Ball BearingBall Bearing
-
4705400235 Outside BushingOutside Bushing
-
6293250094 SealSeal
-
7293300058 O-RingO-Ring
-
8232591414 Hex Elastic Nut M18Hex Elastic Nut M18
-
9250400016 Cotter PinCotter Pin
-
10705400240 Front TireFront Tire
-
11705400242 Front RimFront Rim
-
12705400193 Rim ValveRim Valve
-
13250100042 Wheel NutWheel Nut
-
14293550010 Synthetic GreaseSynthetic Grease
-
16250300013 Hex. Bolt M10Hex. Bolt M10
-
17705400012 Wheel CapWheel Cap
