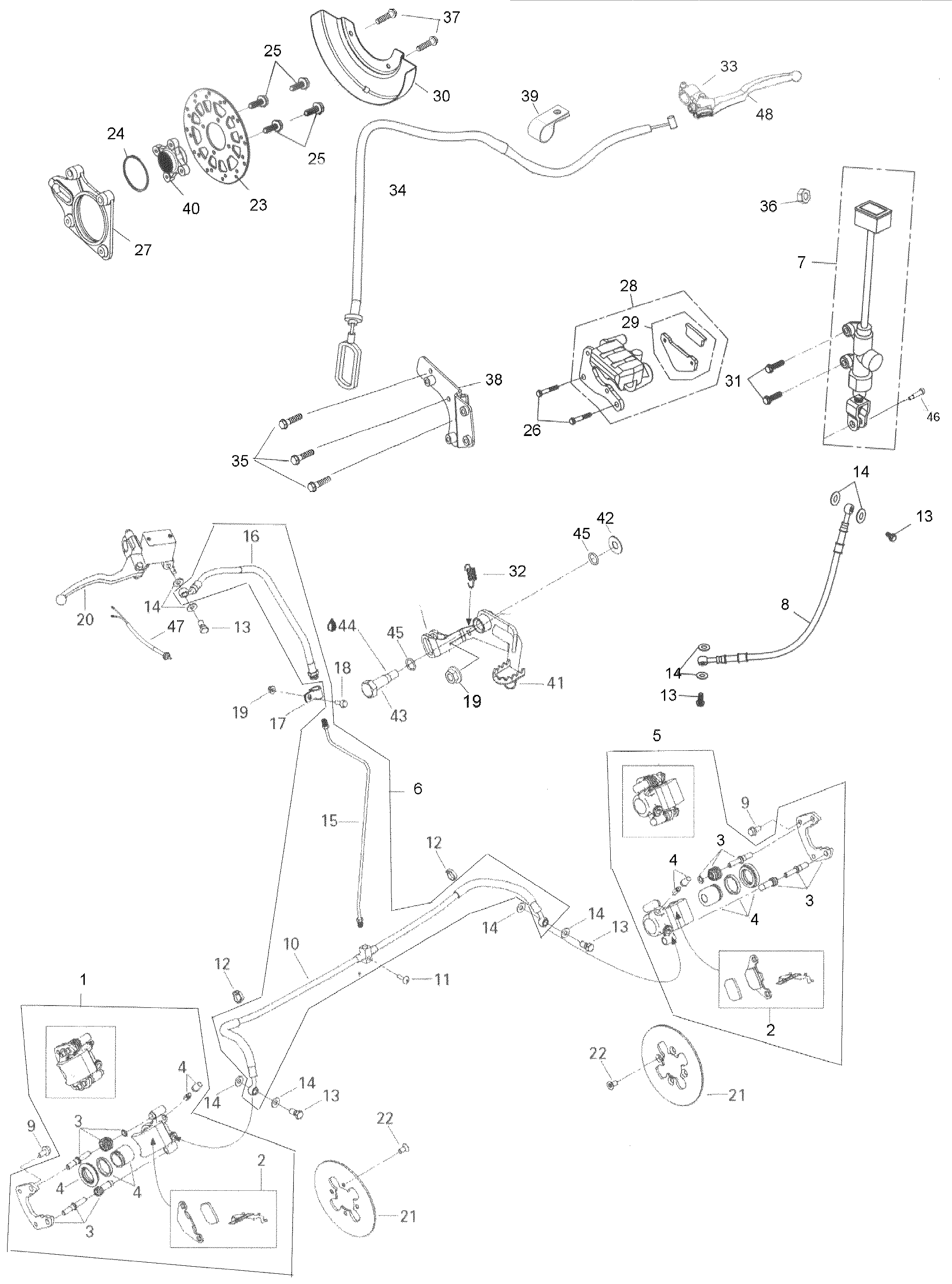

06- Hydraulic Brake для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1705600364 R.H. Caliper Ass'y. Includes 1 To 4R.H. Caliper Ass'y. Includes 1 To 4
-
2A45120179000 Front Brake Pad SetFront Brake Pad Set
-
3705600286 Boot KitBoot Kit
-
4705600287 Piston SetPiston Set
-
5705600365 L.H. Caliper Ass'y. Includes 2 To 5L.H. Caliper Ass'y. Includes 2 To 5
-
7A43500179000 Rear Master Cylinder Ass'yRear Master Cylinder Ass'y
-
8A43460179000 Rear Brake HoseRear Brake Hose
-
9A9600008016GLZ Hex Flanged Screw M8 X 16, Scotch GripHex Flanged Screw M8 X 16, Scotch Grip
-
10A45570179000 Flexible HoseFlexible Hose
-
11A9200306035 Torx Button Head Screw M6 X 25Torx Button Head Screw M6 X 25
-
12414115200 Tie-RapTie-Rap
-
13A45456107000 Banjo BoltBanjo Bolt
-
14A941031015012 Washer For Hose ConnectionWasher For Hose Connection
-
15A45560179000 Vertical TubeVertical Tube
-
16A45550179000 Brake Handle HoseBrake Handle Hose
-
17705600040 Open ClampOpen Clamp
-
18207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20A45500179000 Master CylinderMaster Cylinder
-
21705600223 Brake DiscBrake Disc
-
22235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
23A45015197000 Brake DiscBrake Disc
-
24A945117800S ClipClip
-
25A45016146000 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
26A960001002814GL Hex. Flanged ScrewHex. Flanged Screw
-
27A52120179000 Rear Axle Adjuster BracketRear Axle Adjuster Bracket
-
28A43000179000 Rear Caliper Ass'yRear Caliper Ass'y
-
29A45120168000 Rear Brake Pad SetRear Brake Pad Set
-
30A45018179000 Rear Brake Disc CoverRear Brake Disc Cover
-
31207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
32705600288 Brake Pedal SpringBrake Pedal Spring
-
33A53179179000 Brake HandleBrake Handle
-
34A43470179000 Brake CableBrake Cable
-
35205081660 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
36A9035006000 Nylon Nut M6Nylon Nut M6
-
37207681244 Hex. Flanged ScrewHex. Flanged Screw
-
38A43502179000 Rear Master Cylinder BracketRear Master Cylinder Bracket
-
39A11352179000 Brake HandleBrake Handle
-
40A42106179000 Welded BushingWelded Bushing
-
41A46500179000 Brake PedalBrake Pedal
-
42A941051225010 WasherWasher
-
43705600201 PivotPivot
-
44293550010 Synthetic GreaseSynthetic Grease
-
45293300053 O-RingO-Ring
-
46A9120006041 Socket Screw M6 x 25Socket Screw M6 x 25
-
47A35340169000 Brake Switch WireBrake Switch Wire
-
48A53178179000 L.h. Brake Handle LeverL.h. Brake Handle Lever
