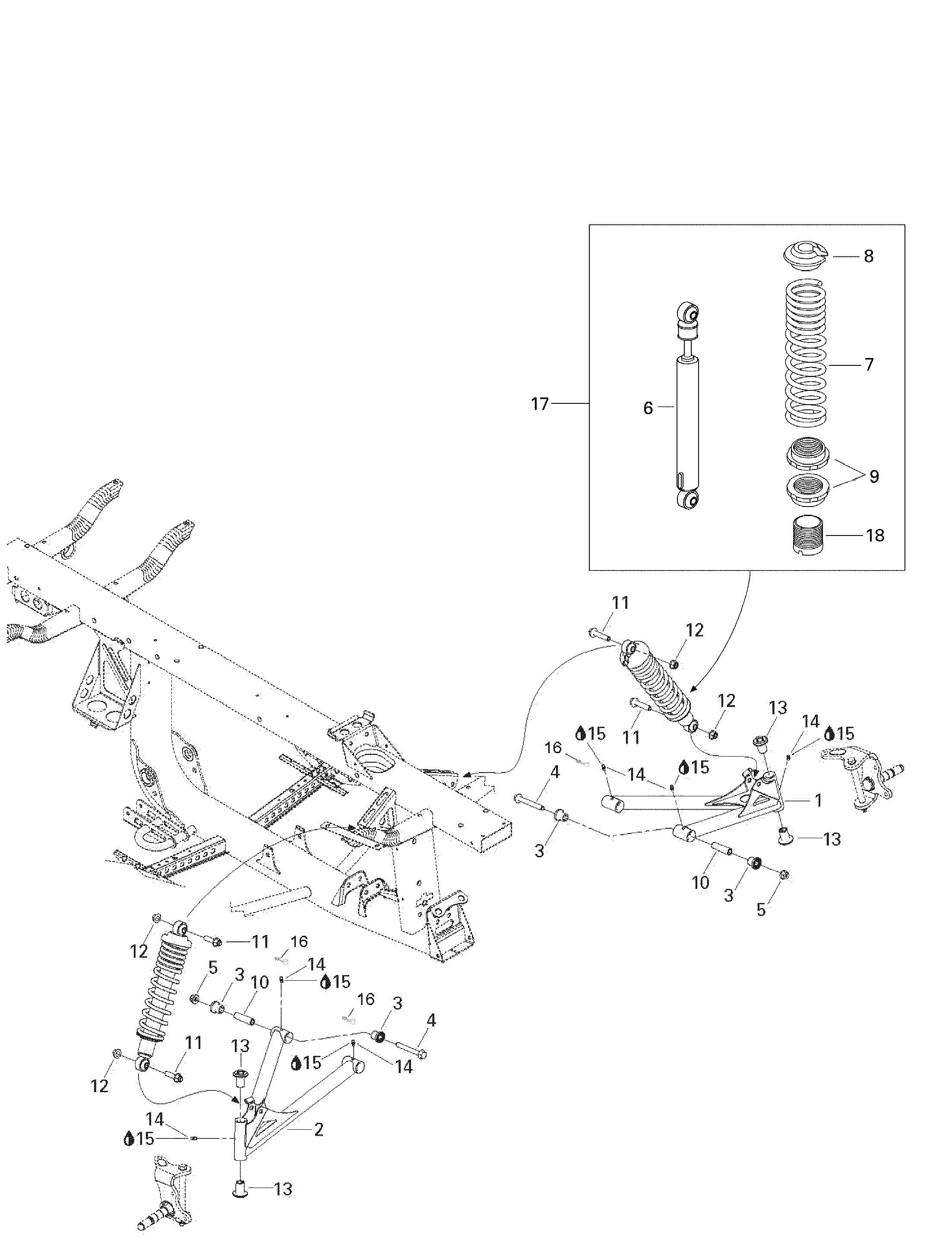

07- Front Suspension для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1706200175 L.H. ArmL.H. Arm
-
2706200176 R.H. ArmR.H. Arm
-
3706200063 CushionCushion
-
4A9600010080 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
5A9035110000 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
6A51411179000 Front ShockFront Shock
-
7A51401179000 Front SpringFront Spring
-
8A51402179000 Spring StopperSpring Stopper
-
9706000197 Spring SeatSpring Seat
-
10706200177 Inner BushingInner Bushing
-
11A9600010050 Hex Flanged Screw M10 X 50Hex Flanged Screw M10 X 50
-
12A9035110000L Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
13706200169 CushionCushion
-
14408200700 Grease FittingGrease Fitting
-
15293550010 Synthetic GreaseSynthetic Grease
-
16A9650206000 Grease Valve CapGrease Valve Cap
-
17A51400179000 Front Shock Ass'yFront Shock Ass'y
-
18A51422179000 Shock AdjusterShock Adjuster
