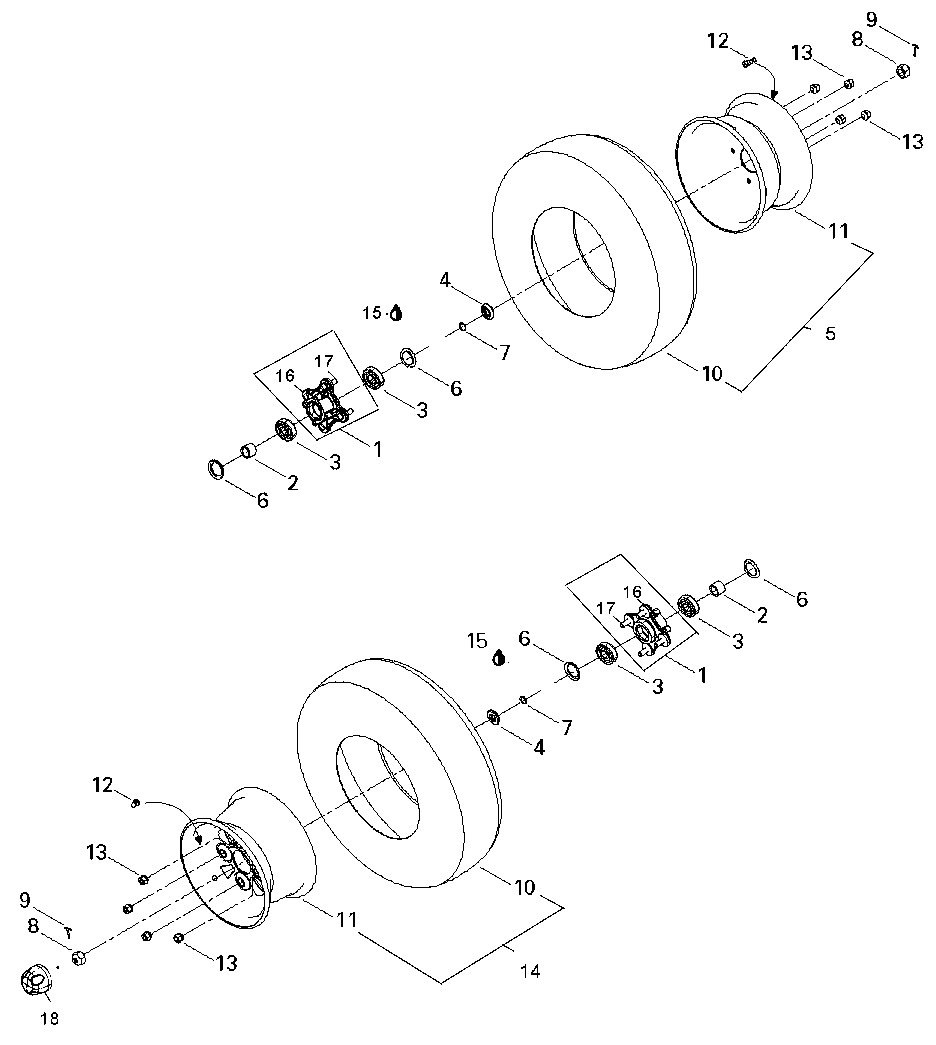

07- Drive System, Front EUROPE для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A42709179000 Wheel Hub Ass'yWheel Hub Ass'y
-
2705400113 Inside BushingInside Bushing
-
3293350049 Ball BearingBall Bearing
-
4705400235 Outside BushingOutside Bushing
-
6293250094 SealSeal
-
7293300058 O-RingO-Ring
-
8232591414 Hex Elastic Nut M18Hex Elastic Nut M18
-
9250400016 Cotter PinCotter Pin
-
10A42711223000 Tire-frontTire-front
-
11705400242 Front RimFront Rim
-
12705400193 Rim ValveRim Valve
-
13250100042 Wheel NutWheel Nut
-
15293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
17250300013 Hex. Bolt M10Hex. Bolt M10
-
18705400012 Wheel CapWheel Cap
