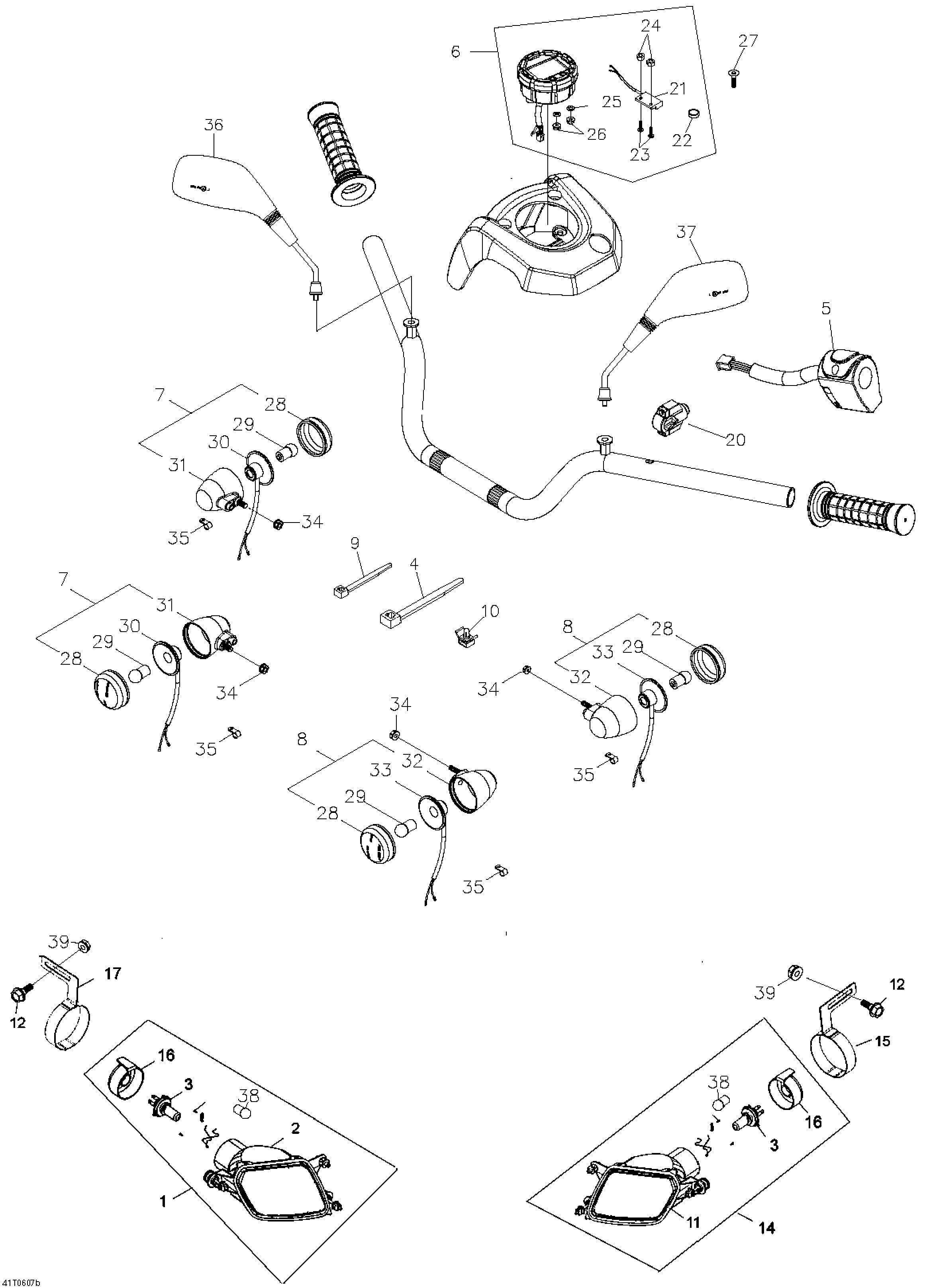

10- Electrical Accessories EUROPE для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A3310017900A RH front Light AssyRH front Light Assy
-
3A34901179000 Bulb-Bulb-
-
4414115200 Tie-rap 180 mmTie-rap 180 mm
-
5A3520017900A Switch LeftSwitch Left
-
6A37200179000 SpeedometerSpeedometer
-
7A3340015900A Turn Signal Light RTurn Signal Light R
-
8A3345015900A Turn Signal Light LTurn Signal Light L
-
9414115200 Tie-rap 180 mmTie-rap 180 mm
-
10293730018 Mount DartMount Dart
-
113311217900A Lamp HousingLamp Housing
-
12A901120601610 Flanged Hex Screw M6 X 16Flanged Hex Screw M6 X 16
-
13205453546 Socket Screw M5 x 35Socket Screw M5 x 35
-
14A3320017900A LH front Light AssyLH front Light Assy
-
15A33154179000 LH Head Light BracketLH Head Light Bracket
-
17A33155179000 R.h. Head Light BracketR.h. Head Light Bracket
-
19A9390206012 Flat Head Phillips BoltFlat Head Phillips Bolt
-
20A35115179000 SwitchSwitch
-
21A37218169000 SensorSensor
-
22A37217169000 MagnetMagnet
-
23A9350003010 Pan Head Phillips BoltPan Head Phillips Bolt
-
24A9400103000 Nut HexNut Hex
-
25A941010615010 Plain Washer (6 X 15 X 1)Plain Washer (6 X 15 X 1)
-
26233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
27A9370106015G Pan Flat Head Phillips Bolt M6 X 15Pan Flat Head Phillips Bolt M6 X 15
-
28A3341014500A Signal CoverSignal Cover
-
29A3490511800A BulbBulb
-
30A33401145000 Socket SignalSocket Signal
-
31A3342515900A Socket Signal RHSocket Signal RH
-
32A33451145000 Socket Signal LHSocket Signal LH
-
33A3343515900A Socket SignalSocket Signal
-
34A9370106012G Pan Flat Head Phillips Bolt M6 X 12Pan Flat Head Phillips Bolt M6 X 12
-
35A90667179000 ClipClip
-
36A88120145000 Mirror RH.Mirror RH.
-
37A88110145000 Mirror LH.Mirror LH.
-
38A34909179000 Bulb-positionBulb-position
-
39233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
