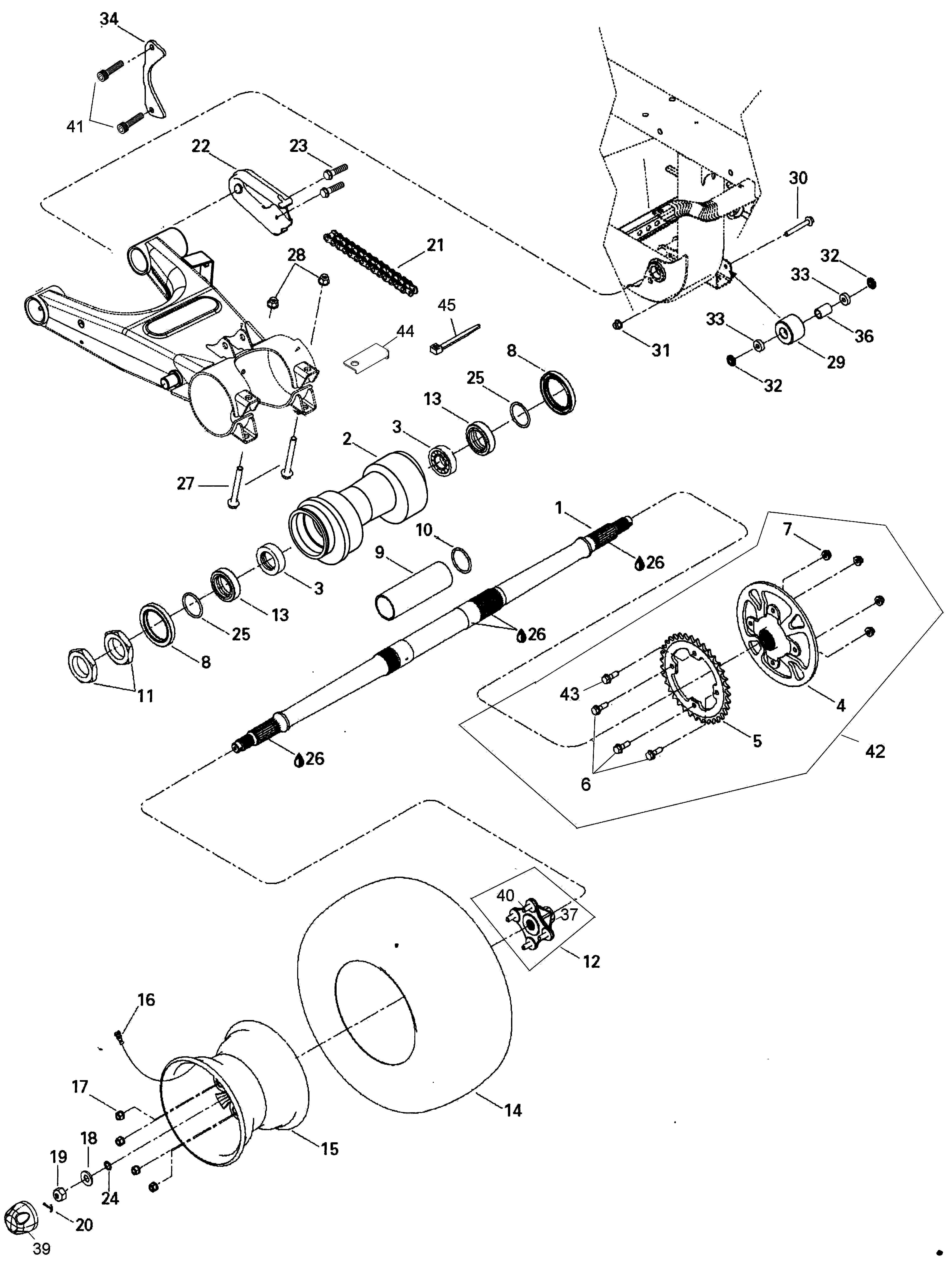

08- Drive System, Rear EUROPE для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A42301179001 Rear AxleRear Axle
-
2A52200179000 Chain TensionnerChain Tensionner
-
3A961006007LLU Ball BearingBall Bearing
-
4A42610179001 Welded HubWelded Hub
-
5705500219 SprocketSprocket
-
6207582586 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
7233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
8A96500506810 Oil SealOil Seal
-
9705500291 SpacerSpacer
-
10705500292 Retainer RingRetainer Ring
-
11A904723300L Locking-nutLocking-nut
-
12A42035179000 Hub-wheel Ass'yHub-wheel Ass'y
-
13A52109179000 Wear RingWear Ring
-
14A4281117900A Rear TireRear Tire
-
15705500295 Rear RimRear Rim
-
16705400193 Rim ValveRim Valve
-
17250100042 Wheel NutWheel Nut
-
18705500481 Formed WasherFormed Washer
-
19232591414 Hex Elastic Nut M18Hex Elastic Nut M18
-
20250400016 Cotter PinCotter Pin
-
21A40530179000 ChainChain
-
22A40533179000 Slider-shoeSlider-shoe
-
23207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
24293300082 O-RingO-Ring
-
25293300089 O-RingO-Ring
-
26293550030 Grease, Super LubeGrease, Super Lube
-
27A9600010090 Screw-hex.flangeScrew-hex.flange
-
28A9035110000 Nut-flange Elastic Din.6926Nut-flange Elastic Din.6926
-
29A40537179000 Chain-rollerChain-roller
-
30207686044 Hex Flanged Screw M8 X 60Hex Flanged Screw M8 X 60
-
31233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
32705500398 SpacerSpacer
-
33293350039 Ball BearingBall Bearing
-
34A40516179000 Chain GuideChain Guide
-
36A40539179000 SpacerSpacer
-
39705400012 Wheel CapWheel Cap
-
40250300013 Hex. Bolt M10Hex. Bolt M10
-
41A9600008016G Hex. Flanged Screw M8 X 16Hex. Flanged Screw M8 X 16
-
43A960090802514L Screw-hex.flangeScrew-hex.flange
-
44A37219179000 BracketBracket
-
45A90669179000 Tie RapTie Rap
