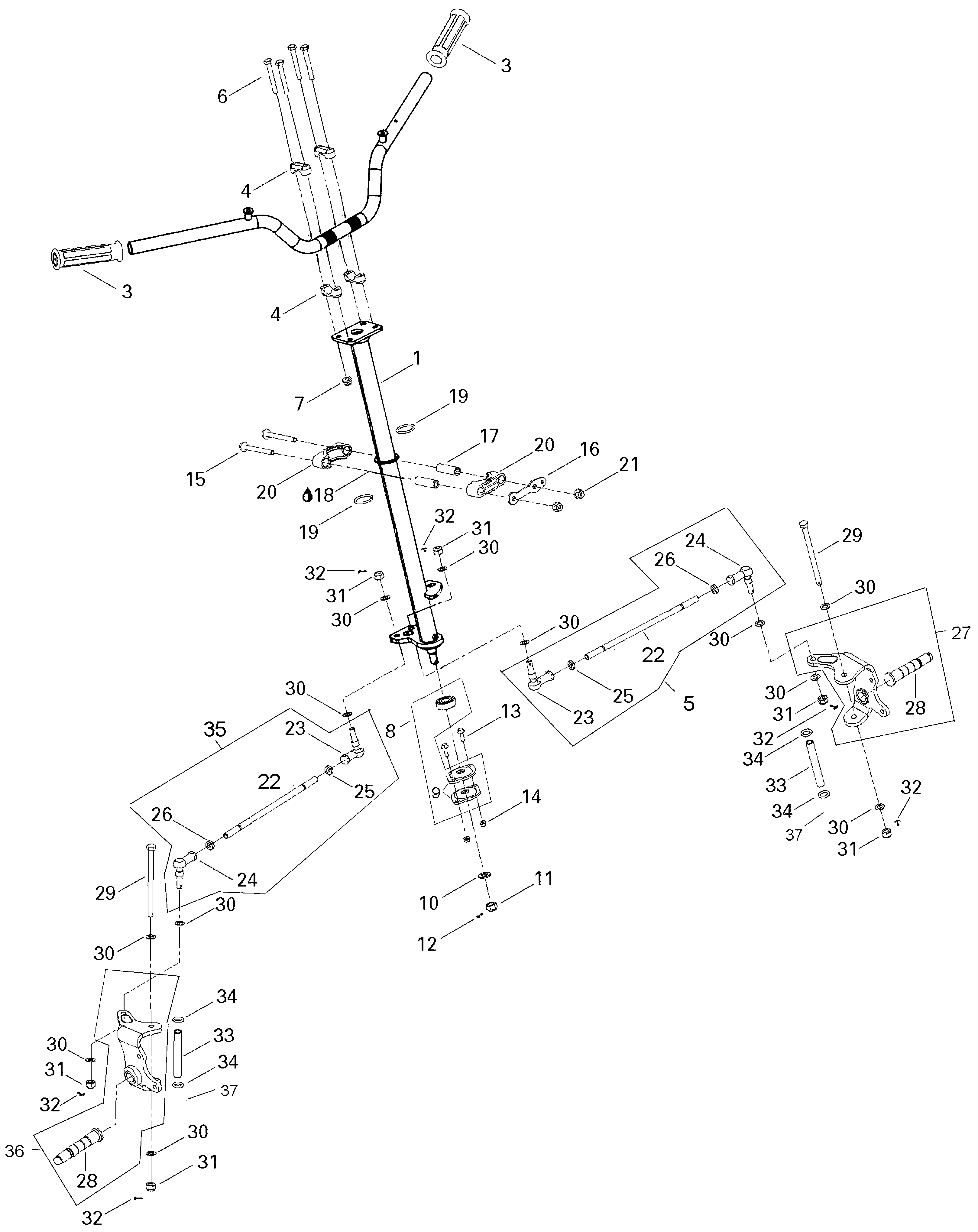

07- Steering System EUROPE для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A5110917900B Tube-mainTube-main
-
2A5310017900C Handle BarHandle Bar
-
3A53165179000 Grip-blackGrip-black
-
4506151622 Steering SupportSteering Support
-
6207085544 Hex. Bolt M8 X 55Hex. Bolt M8 X 55
-
7233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
8709400224 Thrust BearingThrust Bearing
-
9709400152 Thrust WasherThrust Washer
-
10234021410 Flat Washer 12 mmFlat Washer 12 mm
-
11A9035012000 Nut-hexagonal M12Nut-hexagonal M12
-
12211400017 Cotter PinCotter Pin
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
15207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
16709400053 Stopper PlateStopper Plate
-
17709400072 BushingBushing
-
18293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
19293300068 O-RingO-Ring
-
20709400052 Half BushingHalf Bushing
-
21233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
22715900006 Tie RodTie Rod
-
23709400148 RH Ball JointRH Ball Joint
-
24709400149 LH Ball JointLH Ball Joint
-
25732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
26250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
27709400108 LH KnuckleLH Knuckle
-
28709400135 Wheel AxleWheel Axle
-
29709400150 Axle Screw M10 X 145Axle Screw M10 X 145
-
30503175800 WasherWasher
-
31232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32211400013 Cotter PinCotter Pin
-
33709400110 Pivot BushingPivot Bushing
-
34414549700 O-RingO-Ring
-
36709400109 RH KnuckleRH Knuckle
-
37A941051030008 WasherWasher
