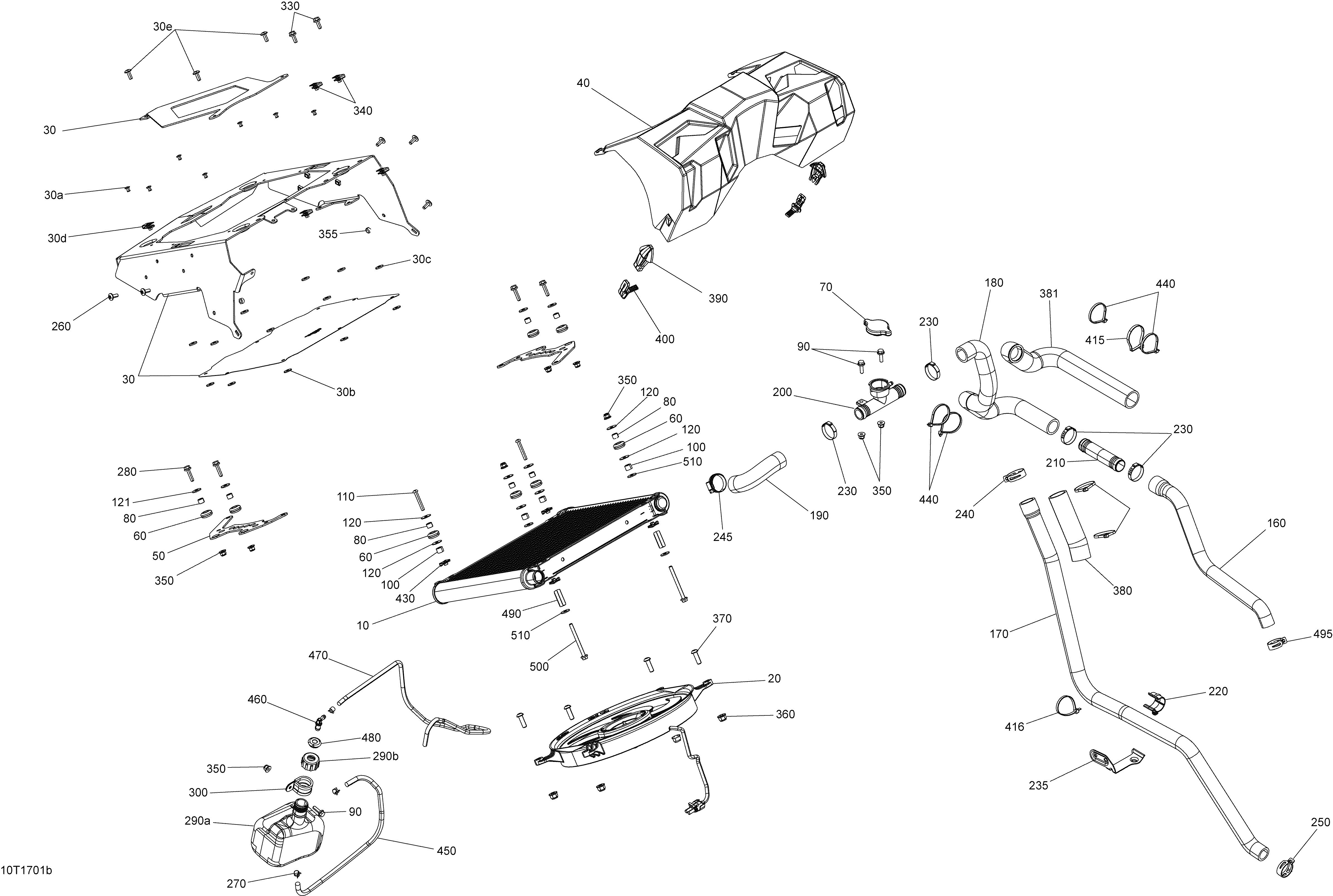

01- Cooling System - XMR для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10709200286 RadiatorRadiator
-
20709200567 Fan Ass'yFan Ass'y
-
30>30e709200556 Ass Support. Includes 30 to 30eAss Support. Includes 30 to 30e
-
30a293150102 Rivet 3/16''Rivet 3/16''
-
30b517124300 WasherWasher
-
30c250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
30d250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
30e250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
40703100399 Protection Cover KitProtection Cover Kit
-
50709200495 SupportSupport
-
60293720062 GrommetGrommet
-
70709200207 Pressure CapPressure Cap
-
80707000058 SpacerSpacer
-
90207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100708001129 BushingBushing
-
110235563054 Torx Screw M6 X 30Torx Screw M6 X 30
-
120250200040 Flat WasherFlat Washer
-
121234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
160709200561 Hose, PolyurethaneHose, Polyurethane
-
170709200635 Radiator Outlet HoseRadiator Outlet Hose
-
180709200559 Hose, PolyurethaneHose, Polyurethane
-
190709200426 HoseHose
-
200709200422 Filler NeckFiller Neck
-
210709200448 Nipple Tube 1''Nipple Tube 1''
-
220275500526 RetainerRetainer
-
230509000162 Gear ClampGear Clamp
-
235709200641 Hose SupportHose Support
-
236207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
237233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
240293650166 Norma Spring ClampNorma Spring Clamp
-
245293650098 Norma Gear ClampNorma Gear Clamp
-
250293650108 Norma Spring ClampNorma Spring Clamp
-
260250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
270414554800 Spring ClampSpring Clamp
-
280207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
290a709200504 Coolant TankCoolant Tank
-
290b709200586 CapCap
-
300709200036 Hose AnchorHose Anchor
-
330207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
340250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
350233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
355232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
360233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
370250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
380515176260 Tubing 35 mmTubing 35 mm
-
381515176260 Tubing 35 mmTubing 35 mm
-
390517304075 End Piece LatchEnd Piece Latch
-
400517303981 Panel LatchPanel Latch
-
415293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
416293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
430715900148 Clip Nut M6 X 1Clip Nut M6 X 1
-
440414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
450415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
460414580700 Male ConnectorMale Connector
-
470415080200 Hose, PolyurethaneHose, Polyurethane
-
480705003264 GrommetGrommet
-
490705202499 BushingBushing
-
495293650109 Norma Spring ClampNorma Spring Clamp
-
500207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
510234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
