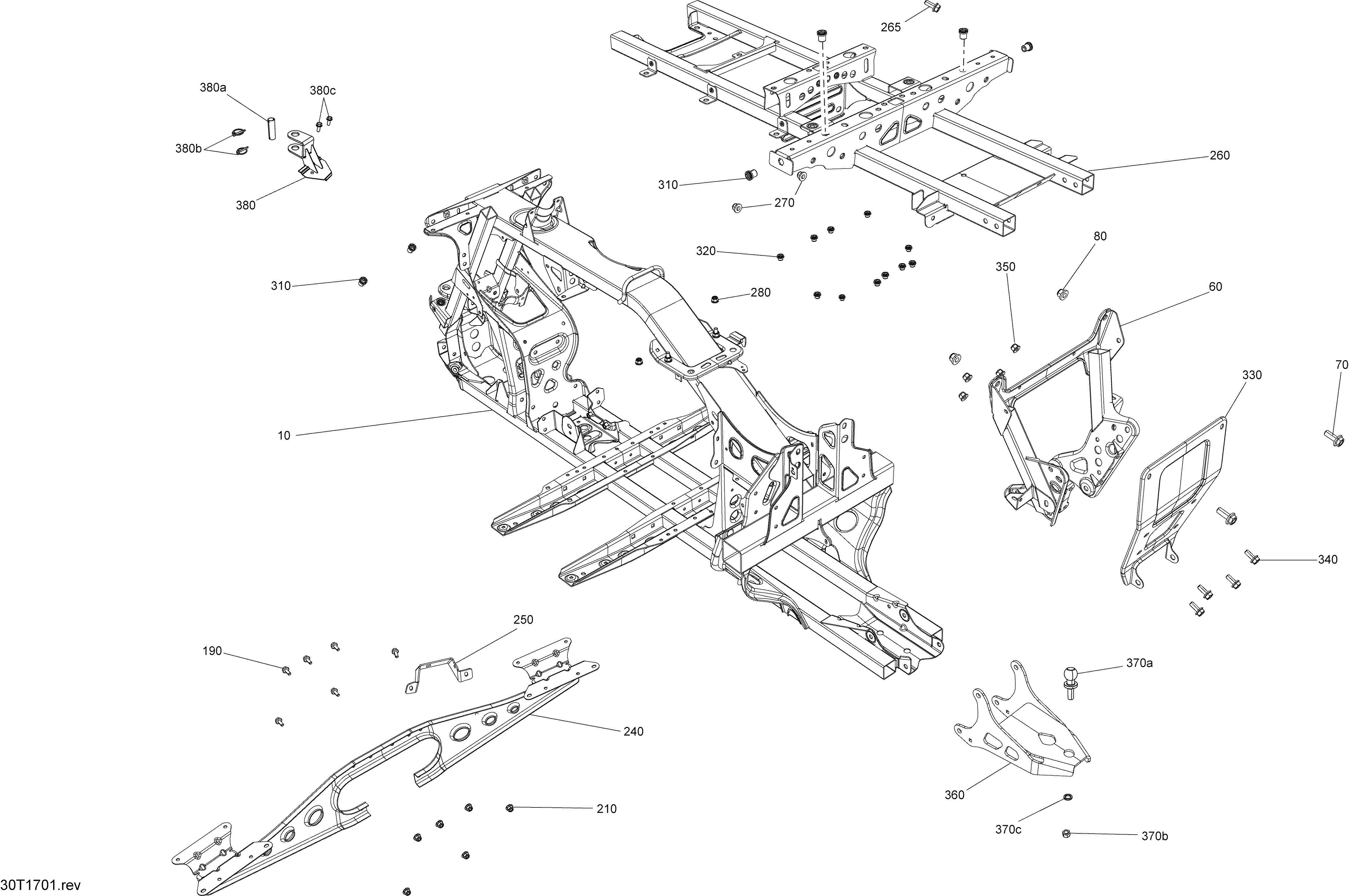

09- Frame - All Models для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10705205310 Black Frame. OutlanderBlack Frame. Outlander
-
10705205312 Black Frame. Outlander MaxBlack Frame. Outlander Max
-
60705203387 Black Rear SupportBlack Rear Support
-
70207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
80233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
190207661644 Hex. Flanged Screw M6 X 16. Outlander MaxHex. Flanged Screw M6 X 16. Outlander Max
-
210233261414 Hex. Flanged Elastic Nut M6. Outlander MaxHex. Flanged Elastic Nut M6. Outlander Max
-
240705202947 Footrest Support. Outlander MaxFootrest Support. Outlander Max
-
250705203874 Master Cylinder Bracket. Outlander MaxMaster Cylinder Bracket. Outlander Max
-
260705203362 Black Frame Extension. OutlanderBlack Frame Extension. Outlander
-
260705203427 Black Frame Extension. Outlander MaxBlack Frame Extension. Outlander Max
-
265207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
270233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
280233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
310293450307 InsertInsert
-
320293450232 InsertInsert
-
330705203541 Rear SupportRear Support
-
340207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
350233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
360715001925 Black Trailer Hitch KitBlack Trailer Hitch Kit
-
370a705204974 Coupling Ball Ass'y. T3Coupling Ball Ass'y. T3
-
370b250100104 Elastic Flanged Nut M20. T3Elastic Flanged Nut M20. T3
-
370c250200161 Lock Washer. T3Lock Washer. T3
-
380705204970 Front Coupling device. T3 Package DPSFront Coupling device. T3 Package DPS
-
380705206484 Front Coupling device. T3 Package XTFront Coupling device. T3 Package XT
-
380a605456511 Pin. T3Pin. T3
-
380b605456518 Pin. T3Pin. T3
-
380c207682046 Hex. Flanged Screw M8 X 20. T3Hex. Flanged Screw M8 X 20. T3
