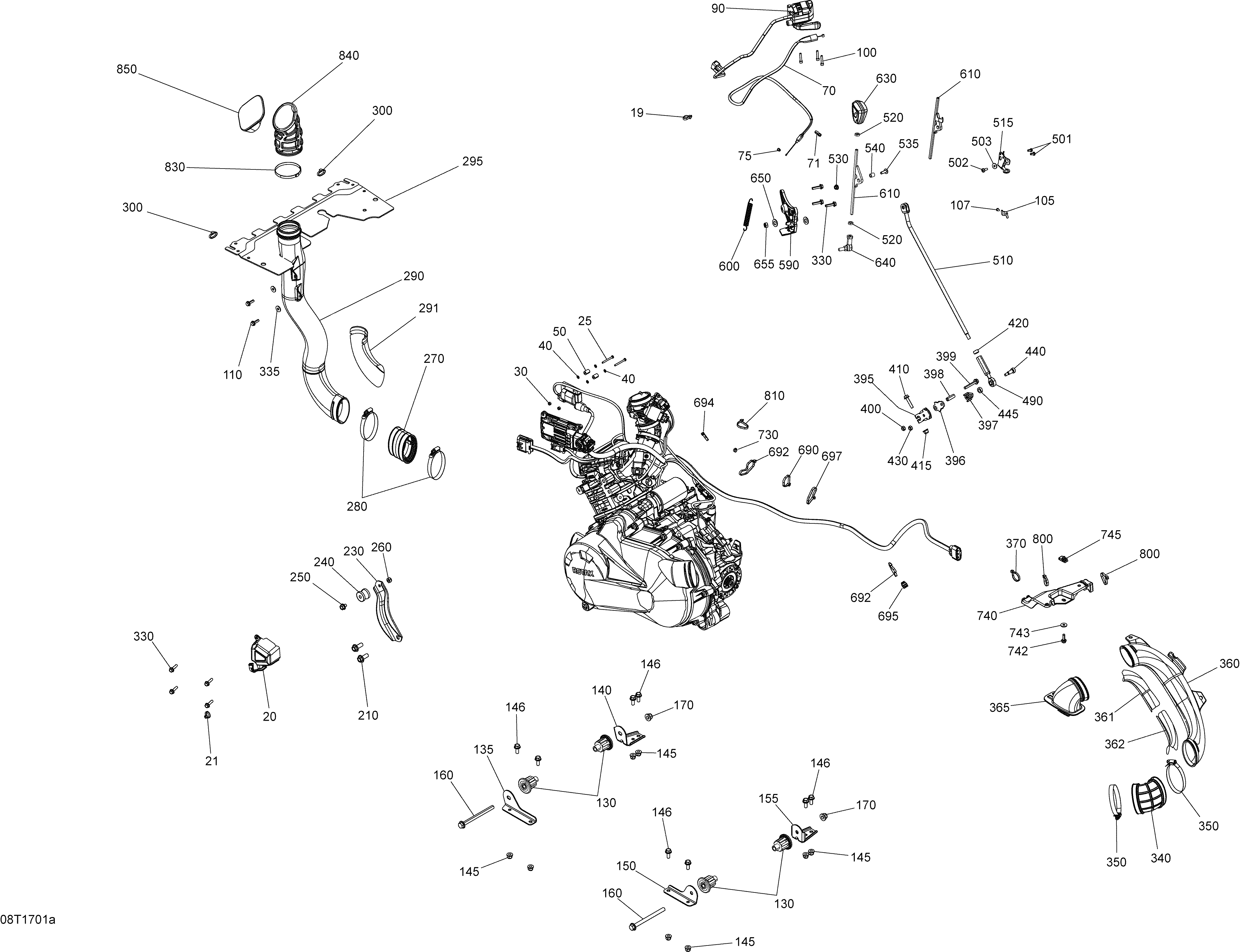

01- Engine And Engine Support - 450 EFI для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20707000945 CoverCover
-
21293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
25207144044 Hex. Cap ScrewHex. Cap Screw
-
30232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
40234040600 Flat Washer 4 mmFlat Washer 4 mm
-
50293900117 BushingBushing
-
70707000955 Throttle CableThrottle Cable
-
71414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
75707000434 Cable GuideCable Guide
-
90707000595 Throttle HandleThrottle Handle
-
100205052588 Socket Head Screw M5 X 25. Model EuropeSocket Head Screw M5 X 25. Model Europe
-
105707000573 Speed Limiter. Model EuropeSpeed Limiter. Model Europe
-
107250000332 Torx Screw M4 X 8Torx Screw M4 X 8
-
110207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
130707001169 DamperDamper
-
135707001407 LH Front Engine BracketLH Front Engine Bracket
-
140707001408 RH Front Engine BracketRH Front Engine Bracket
-
145233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
146207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
150707001409 LH Rear Engine BracketLH Rear Engine Bracket
-
155707001410 RH Rear Engine BracketRH Rear Engine Bracket
-
160230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
170233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
210207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
230707001411 Upper Engine BracketUpper Engine Bracket
-
240707000949 Rubber IsolatorRubber Isolator
-
250207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
260232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
270707001467 Flexible AdaptorFlexible Adaptor
-
280293650091 Norma ClampNorma Clamp
-
290707001412 CVT Air InletCVT Air Inlet
-
291707001638 Heat ShieldHeat Shield
-
295707001124 Upper Water DeflectorUpper Water Deflector
-
300414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
330207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
335234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
340707001425 CVT Air Outlet AdaptorCVT Air Outlet Adaptor
-
350293650091 Norma ClampNorma Clamp
-
360707001413 CVT Air OutletCVT Air Outlet
-
361707001639 Heat ShieldHeat Shield
-
362707001641 Heat ShieldHeat Shield
-
365706600024 Air OutletAir Outlet
-
370414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
395707000503 LeverLever
-
396707000507 Pivot PlatePivot Plate
-
397707000310 SpringSpring
-
398293900079 BushingBushing
-
399207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
400232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
410207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
415233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
420250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
430232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
440250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
445293900028 BushingBushing
-
490707000966 Ball Joint Ass'y. Model EuropeBall Joint Ass'y. Model Europe
-
501205951046 Socket Head Screw M5 X 10. Model Europe, T3Socket Head Screw M5 X 10. Model Europe, T3
-
502250000720 Torx Screw K50 X 16. Model Europe, T3Torx Screw K50 X 16. Model Europe, T3
-
503391301600 Washer. Model Europe, T3Washer. Model Europe, T3
-
510707001414 Shifter Rod. Model EuropeShifter Rod. Model Europe
-
515707001042 Fixing PlateFixing Plate
-
520232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
530233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
535250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
540293900019 BushingBushing
-
590707000971 Shift Arm BaseShift Arm Base
-
600707000577 Spring. Except Model EuropeSpring. Except Model Europe
-
610707000840 Shift Arm. Model EuropeShift Arm. Model Europe
-
610707001003 Shift ArmShift Arm
-
630707000965 Lever ButtonLever Button
-
640707001959 RH Ball JointRH Ball Joint
-
650506151252 WasherWasher
-
655232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
690414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
692414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
692414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
694414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
695710002896 Tie-Rap ClipTie-Rap Clip
-
697414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
730293650100 Oetiker ClampOetiker Clamp
-
740707001262 Air Outlet SupportAir Outlet Support
-
742207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
743234062410 Flat Washer 6 mmFlat Washer 6 mm
-
745250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
800414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
810414115200 Tie-Rap 180 mm. Model ProTie-Rap 180 mm. Model Pro
-
830293650240 Crimp Clamp. Model ProCrimp Clamp. Model Pro
-
840707001864 CVT Inlet. Model ProCVT Inlet. Model Pro
-
850707001786 CVT FilterCVT Filter
