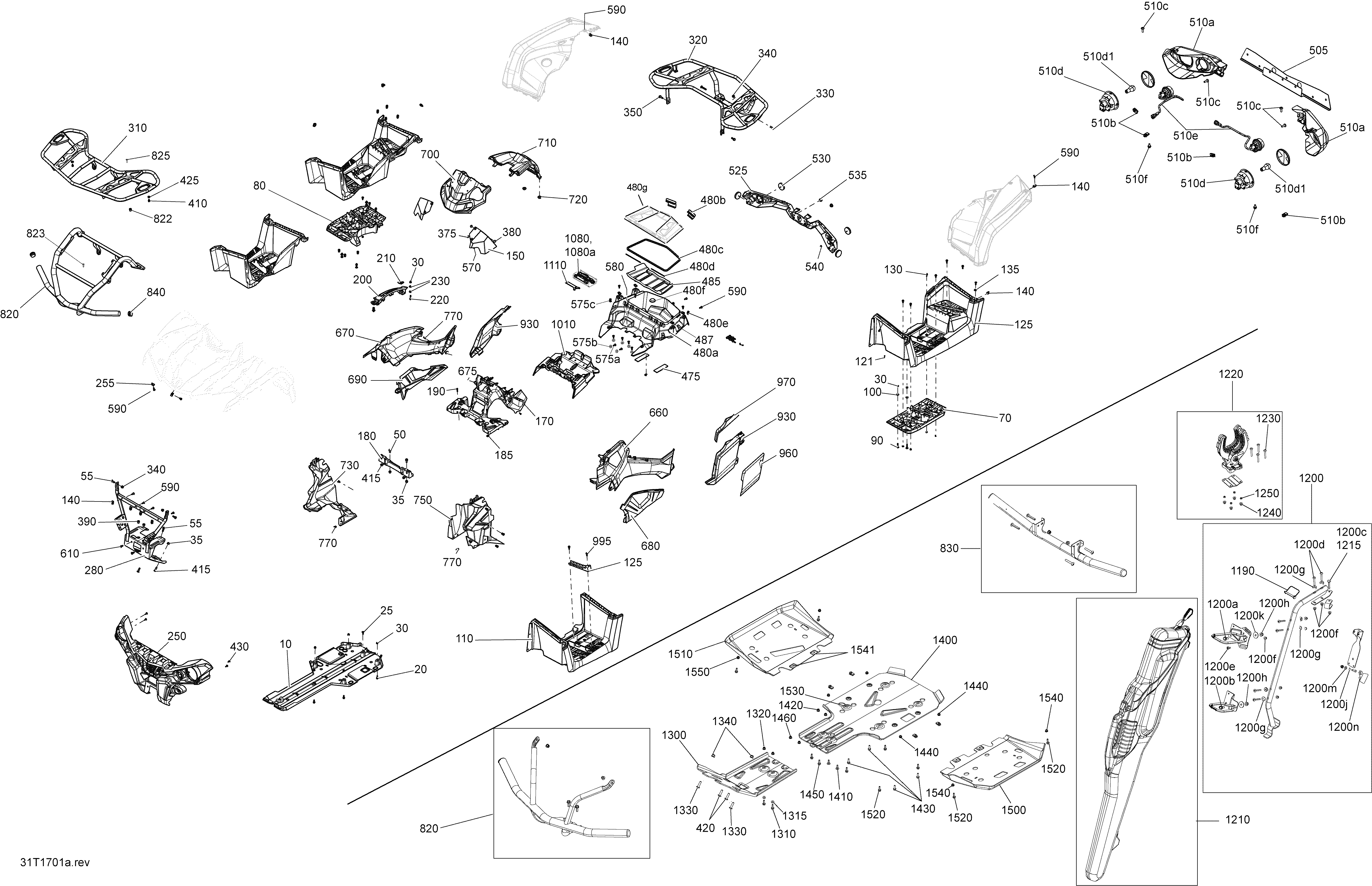

09- Body And Accessories - Without Fenders, All Models для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10715002374 Protective Plate Kit. Except Model Hunter, StandardProtective Plate Kit. Except Model Hunter, Standard
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20. Except Model Hunter, StandardCarriage Bolt M6 X 20. Except Model Hunter, Standard
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705005254 LH. FootboardLH. Footboard
-
80705005253 RH. FootboardRH. Footboard
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705007040 LH Footrest. Model OutlanderLH Footrest. Model Outlander
-
110705003525 LH Footrest, Max. Model Outlander MaxLH Footrest, Max. Model Outlander Max
-
110705007723 RH Footrest. Model Outlander 450RH Footrest. Model Outlander 450
-
110705007039 RH Footrest. Model Outlander 570RH Footrest. Model Outlander 570
-
110705007724 RH Footrest. Model Outlander Max 450RH Footrest. Model Outlander Max 450
-
110705003521 RH Footrest, Max. Model Outlander Max 570RH Footrest, Max. Model Outlander Max 570
-
121250000720 Torx Screw K50 X 16. Model XMRTorx Screw K50 X 16. Model XMR
-
125705004352 LH Footrest. Model XMRLH Footrest. Model XMR
-
125705005395 RH Footrest. Model XMRRH Footrest. Model XMR
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
135224061201 Flat WasherFlat Washer
-
140250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
150705006134 LH Air Deflector. Model XMR, PROLH Air Deflector. Model XMR, PRO
-
150705006135 RH Air Deflector. Model XMR, PRORH Air Deflector. Model XMR, PRO
-
170715003984 Dash Support. North AmericaDash Support. North America
-
170715003984 Dash Support. Except North AmericaDash Support. Except North America
-
180705010406 Console Support InsertConsole Support Insert
-
185234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
190241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
-
200715003975 Indicator. Engine 450 Europe, T3Indicator. Engine 450 Europe, T3
-
200715003973 Indicator. Engine 450 Except Europe, T3Indicator. Engine 450 Except Europe, T3
-
200715003979 Indicator. Engine 570 Europe, T3Indicator. Engine 570 Europe, T3
-
200715003977 Indicator. Engine 570 Except Europe, T3Indicator. Engine 570 Except Europe, T3
-
210705005003 Shiftgate Trim. Model EuropeShiftgate Trim. Model Europe
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705009335 Front Facia. Model EuropeFront Facia. Model Europe
-
250705009334 Front Facia. Except Model EuropeFront Facia. Except Model Europe
-
255250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
280705009256 Front StructureFront Structure
-
310705006887 Black Front Luggage Rack. Except Model XMRBlack Front Luggage Rack. Except Model XMR
-
320715002785 Black Rear Luggage Rack. North AmericaBlack Rear Luggage Rack. North America
-
320715002787 Black Rear Luggage Rack. Except North AmericaBlack Rear Luggage Rack. Except North America
-
330250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
340233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
350207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
375293150104 Pop Rivet 3/16''. Model XMR, PROPop Rivet 3/16''. Model XMR, PRO
-
380517124300 Washer. Model XMR, PROWasher. Model XMR, PRO
-
390293450307 InsertInsert
-
410210261250 Hex. Flanged Screw M6 X 12. Except Model XMRHex. Flanged Screw M6 X 12. Except Model XMR
-
415207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
425234062670 Flat Washer, Stainless. Except Model XMRFlat Washer, Stainless. Except Model XMR
-
430250000725 Screw M4 X 16Screw M4 X 16
-
475293830163 Rubber PadRubber Pad
-
480a705007136 Rear Box. Except Max ModelRear Box. Except Max Model
-
480a715002727 Rear Box Ass'y. Max North AmericaRear Box Ass'y. Max North America
-
480a715002729 Rear Box Ass'y. Max InternationalRear Box Ass'y. Max International
-
480a715002729 Rear Box Ass'y. Max EuropeRear Box Ass'y. Max Europe
-
480a715002729 Rear Box Ass'y. Max T3Rear Box Ass'y. Max T3
-
480b705007448 LH Box Rear LatchLH Box Rear Latch
-
480b705007921 RH Box Rear LatchRH Box Rear Latch
-
480c293250312 Neoprene SealNeoprene Seal
-
480d705007531 Retaining RodRetaining Rod
-
480e250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
480f414859400 CapCap
-
480g715002724 Rear Cover Box Ass'y. North America Except XMRRear Cover Box Ass'y. North America Except XMR
-
480g715003308 Rear Cover Box Ass'y. North America XMRRear Cover Box Ass'y. North America XMR
-
480g715002726 Rear Cover Box Ass'y. EuropeRear Cover Box Ass'y. Europe
-
480g715002726 Rear Cover Box Ass'y. T3Rear Cover Box Ass'y. T3
-
480g715002726 Rear Cover Box Ass'y. International Except XMRRear Cover Box Ass'y. International Except XMR
-
480g715003310 Rear Cover Box Ass'y. International XMRRear Cover Box Ass'y. International XMR
-
485705007487 Heat Deflector SheetHeat Deflector Sheet
-
487250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
505708002041 Cable Housing. Model T3Cable Housing. Model T3
-
510a705010329 LH Support. Model T3LH Support. Model T3
-
510a705010330 RH Support. Model T3RH Support. Model T3
-
510b250100113 Panel Nut, M6 X 1.0. Model T3Panel Nut, M6 X 1.0. Model T3
-
510c250000722 Torx Screw M6 X 20. Model T3Torx Screw M6 X 20. Model T3
-
510d710001645 Tail Light. Model T3Tail Light. Model T3
-
510d1520000758 Bulb. Model T3Bulb. Model T3
-
510e710002964 Flasher. Model T3Flasher. Model T3
-
510f207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. Model T3Hex. Flanged Screw M6 X 12, Scotch Grip. Model T3
-
525705005576 Rear Facia. Except Model EuropeRear Facia. Except Model Europe
-
525705007445 Rear Facia. Model EuropeRear Facia. Model Europe
-
530705002408 Red Reflector. Except Model EuropeRed Reflector. Except Model Europe
-
535705003666 Rubber GrommetRubber Grommet
-
540233251434 Flanged Elastic Nut M5. Except Model EuropeFlanged Elastic Nut M5. Except Model Europe
-
570732610072 Push Nut. Model XMR, PROPush Nut. Model XMR, PRO
-
575a250000841 Screw Hex Flange M6 X 25. Model Outlander MaxScrew Hex Flange M6 X 25. Model Outlander Max
-
575b234062670 Flat Washer, Stainless. Model Outlander MaxFlat Washer, Stainless. Model Outlander Max
-
575c293150089 Tuflok Plastic Rivet. Model Outlander MaxTuflok Plastic Rivet. Model Outlander Max
-
580250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
610236282054 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
660705009914 Bright White LH Lateral Panel. Model XMRBright White LH Lateral Panel. Model XMR
-
660705009915 Bright White RH Lateral Panel . Model XMRBright White RH Lateral Panel . Model XMR
-
660705009903 Camo LH Lateral Pannel. Model CamoCamo LH Lateral Pannel. Model Camo
-
660705009912 Camo RH Lateral Pannel. Model CamoCamo RH Lateral Pannel. Model Camo
-
660705009760 Green LH Lateral Panel. Model GreenGreen LH Lateral Panel. Model Green
-
660705009764 Green RH Lateral Panel. Model Green Except T3Green RH Lateral Panel. Model Green Except T3
-
660715003983 Green RH Lateral Panel. Model Green T3Green RH Lateral Panel. Model Green T3
-
660705005239 Magnesium LH Lateral Pannel. Model MagnesiumMagnesium LH Lateral Pannel. Model Magnesium
-
660705009308 Magnesium RH Lateral Panel. Model MagnesiumMagnesium RH Lateral Panel. Model Magnesium
-
660705005237 Red LH Lateral Pannel. Model RedRed LH Lateral Pannel. Model Red
-
660705009115 Red RH Lateral Panel. Model Red Except T3Red RH Lateral Panel. Model Red Except T3
-
660715003981 Red RH Lateral Panel. Model Red T3Red RH Lateral Panel. Model Red T3
-
660705003446 Yellow LH Lateral Panel. Model YellowYellow LH Lateral Panel. Model Yellow
-
660705009019 Yellow RH Lateral Panel. Model Yellow Except T3Yellow RH Lateral Panel. Model Yellow Except T3
-
660715003982 Yellow RH Lateral Panel. Model Yellow T3Yellow RH Lateral Panel. Model Yellow T3
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705004147 LH Extension PannelLH Extension Pannel
-
690705003444 Engine CoverEngine Cover
-
700705007066 Gage Support. Except Model XMR, PROGage Support. Except Model XMR, PRO
-
700705010139 Gage Support. Model XMR, PROGage Support. Model XMR, PRO
-
710715001765 Dash KitDash Kit
-
720705003264 GrommetGrommet
-
730705010714 RH Inner FenderRH Inner Fender
-
730705007999 LH Inner FenderLH Inner Fender
-
770293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
820715001910 Front Bumper kit. Model XT, HunterFront Bumper kit. Model XT, Hunter
-
820705009433 Front Bumper. Model XMRFront Bumper. Model XMR
-
822233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
823207582544 Hex. Flanged Screw M8 X 25, Scotch Grip. Model XT, Hunter, XMRHex. Flanged Screw M8 X 25, Scotch Grip. Model XT, Hunter, XMR
-
825250000898 Screw Pan Torx M8 X 25Screw Pan Torx M8 X 25
-
830715001911 Rear Bumper kit. Model XT, HunterRear Bumper kit. Model XT, Hunter
-
840705202455 Cap. Model XT, HunterCap. Model XT, Hunter
-
840705202455 Cap. Model XMRCap. Model XMR
-
930715001897 LH Extension Panel. Model Outlander MaxLH Extension Panel. Model Outlander Max
-
930705004348 RH Extension Panel. Model Outlander MaxRH Extension Panel. Model Outlander Max
-
960705006870 Heat Shield. Model Outlander MaxHeat Shield. Model Outlander Max
-
970705006871 Heat Shield. Model Outlander MaxHeat Shield. Model Outlander Max
-
995207662034 Hex. Flanged Screw M6 X 20. Model XMRHex. Flanged Screw M6 X 20. Model XMR
-
1010705007948 Seat Holder. Model Outlander MaxSeat Holder. Model Outlander Max
-
1080>1080a704700168 Tool Kit. Includes 1080 to 1080aTool Kit. Includes 1080 to 1080a
-
1080a529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
1110529000035 Adjustement WrenchAdjustement Wrench
-
1190516006405 Protector Decal. Model HunterProtector Decal. Model Hunter
-
1200>1200h715001918 Boot Bracket kit. Model Hunter. Includes 1200 to 1200hBoot Bracket kit. Model Hunter. Includes 1200 to 1200h
-
1200a207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
1200b207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
1200c207764550 Carriage Bolt M6 X 45Carriage Bolt M6 X 45
-
1200d250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
1200e250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
1200f233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1200g705202223 Offset WasherOffset Washer
-
1200h250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
1200j250000135 Hex. Nut M6Hex. Nut M6
-
1200k250200128 Flat Washer 8 mmFlat Washer 8 mm
-
1200m250200039 Flat WasherFlat Washer
-
1200n291003688 Rubber BumperRubber Bumper
-
1210715001419 Gun Boot kit. Model HunterGun Boot kit. Model Hunter
-
1215207664536 Hex. Flange Screw M6 X 45. Model HunterHex. Flange Screw M6 X 45. Model Hunter
-
1220715001421 Kit Gear Crip. Model HunterKit Gear Crip. Model Hunter
-
1230250000748 Torx Screw M6 X 45. Model HunterTorx Screw M6 X 45. Model Hunter
-
1240233261494 Hex. Elastic Flanged Nut M6. Model HunterHex. Elastic Flanged Nut M6. Model Hunter
-
1250506152156 Bushing. Model HunterBushing. Model Hunter
-
1300705205019 Front Skid Plate. Model HunterFront Skid Plate. Model Hunter
-
1310250000712 Torx Screw M6 X 20. Model HunterTorx Screw M6 X 20. Model Hunter
-
1315234062670 Flat Washer, Stainless. Model HunterFlat Washer, Stainless. Model Hunter
-
1320233261434 Flanged Elastic Nut M6. Model HunterFlanged Elastic Nut M6. Model Hunter
-
1330236282054 Hex. Screw M8 X 20. Model HunterHex. Screw M8 X 20. Model Hunter
-
1340233281434 Hex. Flanged Elastic Nut M8. Model HunterHex. Flanged Elastic Nut M8. Model Hunter
-
1400705204031 Central Skid Plate. Model HunterCentral Skid Plate. Model Hunter
-
1410207762044 Carriage Bolt M6 X 20. Model HunterCarriage Bolt M6 X 20. Model Hunter
-
1420233261434 Flanged Elastic Nut M6. Model HunterFlanged Elastic Nut M6. Model Hunter
-
1430207662054 Hex. Flanged Screw M6 X 20. Model HunterHex. Flanged Screw M6 X 20. Model Hunter
-
1440293450232 Insert. Model HunterInsert. Model Hunter
-
1450207682534 Hex. Flanged Screw M8 X 25. Model HunterHex. Flanged Screw M8 X 25. Model Hunter
-
1460233281434 Hex. Flanged Elastic Nut M8. Model HunterHex. Flanged Elastic Nut M8. Model Hunter
-
1500705010659 LH Skid Plate. Model HunterLH Skid Plate. Model Hunter
-
1510705010660 RH Skid Plate. Model HunterRH Skid Plate. Model Hunter
-
1520207662054 Hex. Flanged Screw M6 X 20. Model HunterHex. Flanged Screw M6 X 20. Model Hunter
-
1530705007171 Cup. Model HunterCup. Model Hunter
-
1540293450232 Insert. Model HunterInsert. Model Hunter
-
1541250000048 Panel Nut M6 X 1.0. Model HunterPanel Nut M6 X 1.0. Model Hunter
-
1550293450232 Insert. Model HunterInsert. Model Hunter
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System - Except XMR
- 01- Cooling System - XMR
- 01- Crankcase - 450 EFI
- 01- Crankcase - 570 EFI
- 01- Crankcase - 570 EFI (Package PRO)
- 01- Crankshaft and Pistons - 450 EFI
- 01- Crankshaft and Pistons - 570 EFI
- 01- Cylinder Head - 450 EFI
- 01- Cylinder Head, Front - 570 EFI
- 01- Cylinder Head, Rear - 570 EFI
- 01- Engine And Engine Support - 450 EFI
- 01- Engine And Engine Support - 570 EFI Except XMR
- 01- Engine And Engine Support - 570 EFI XMR
- 01- Engine Cooling - 450 EFI
- 01- Engine Cooling - 570 EFI
- 01- Engine Lubrication - 450 EFI
- 01- Engine Lubrication - 570 EFI
- 01- Engine Lubrication - 570 EFI (Package PRO)
- 01- Exhaust System - All Models
- 01- Gear Box and Components - 570 EFI
- 01- Gear Box Assy - 570 EFI
- 01- Gear Box Output Shaft - 570 EFI
- 02- Air Intake Manifold and Throttle Body - 450 EFI
- 02- Air Intake Manifold and Throttle Body - 570 EFI
- 02- Air Intake Silencer - All Models
- 02- Fuel System - All Models
- 03- Magneto - 450 EFI
- 03- Magneto and Electric Starter - 570 EFI (Package XMR)
- 03- Magneto and Electric Starter - 570 EFI (With DPS)
- 03- Magneto and Electric Starter - 570 EFI (Without DPS)
- 05- Gear Shift - 450 EFI
- 05- Transmission - 450 EFI
- 05- Transmission - 570 EFI
- 05- Transmission - 570 EFI (Package PRO)
- 06- Brakes - All Models
- 07- Drive System, Front - All Models
- 07- Front Suspension - All Models
- 07- Steering - All Models
- 08- Drive Shaft - 570 EFI
- 08- Drive System, Rear - All Models
- 08- Rear Suspension - All Models
- 09- Accessories - Police Package
- 09- Body And Accessories - with Fenders All Models
- • 09- Body And Accessories - Without Fenders, All Models
- 09- Decals - All Models
- 09- Frame - All Models
- 09- Seat - All Models
- 10- Electrical Harness - 710004331 Europe
- 10- Electrical Harness - 710004898 DPS
- 10- Electrical Harness - 710004957 Except DPS
- 10- Electrical System - All Models
- 10- Engine Harness and Electronic Module - 450 EFI
- 10- Engine Harness and Electronic Module - 570 EFI (Except Package XMR)
- 10- Engine Harness and Electronic Module - 570 EFI (Package XMR)
