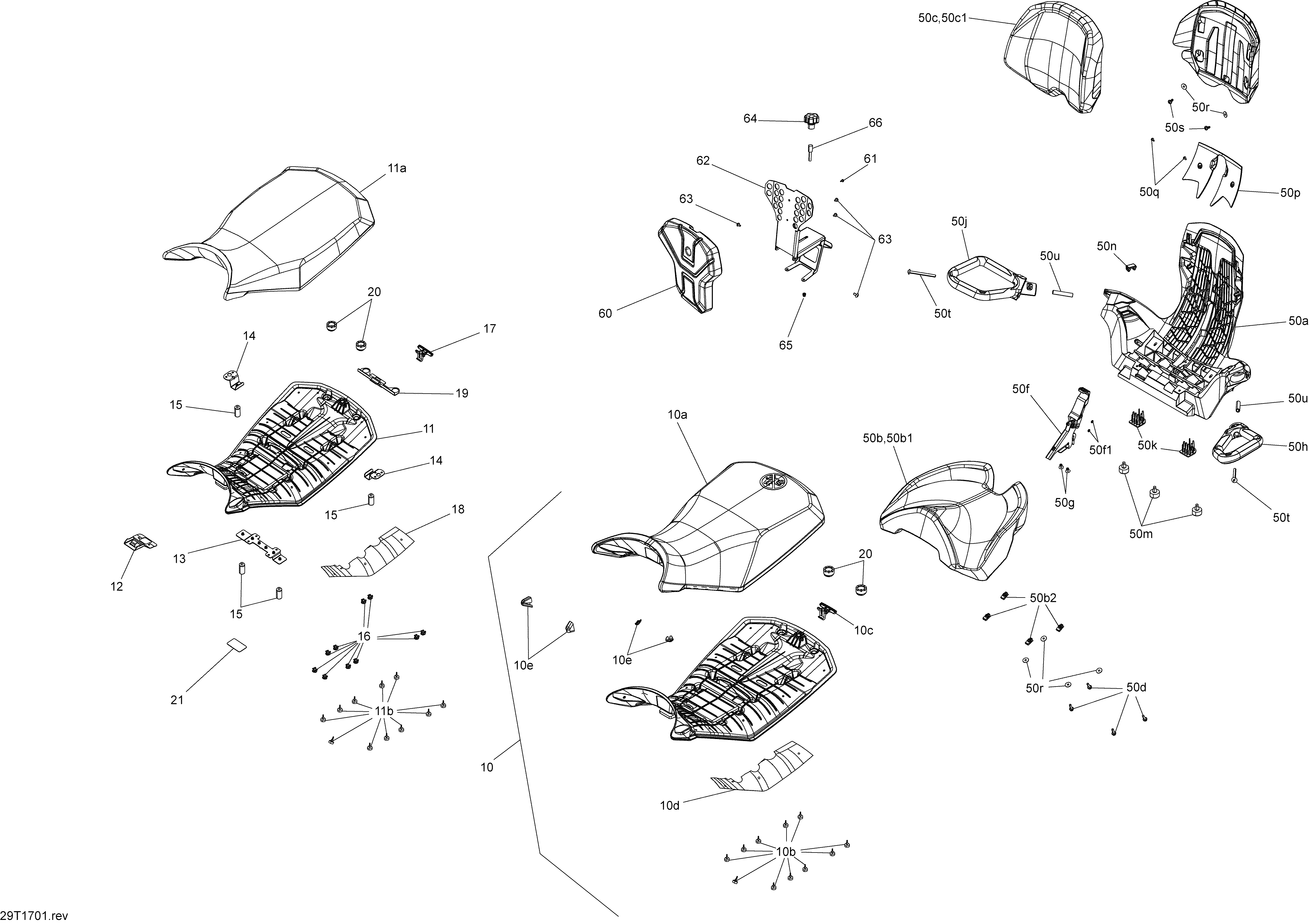

09- Seat - All Models для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10>10d708002146 Seat Ass'y. Model STD, DPS. Includes 10 to 10dSeat Ass'y. Model STD, DPS. Includes 10 to 10d
-
10>10d708002146 Seat Ass'y. Model Hunter. Includes 10 to 10dSeat Ass'y. Model Hunter. Includes 10 to 10d
-
10>10d708002152 Seat Ass'y. Model XMR. Includes 10 to 10dSeat Ass'y. Model XMR. Includes 10 to 10d
-
10>10d708002491 Seat Ass'y. Model XT. Includes 10 to 10dSeat Ass'y. Model XT. Includes 10 to 10d
-
10>10e708002151 Seat Ass'y. Model Pro. Includes 10 to 10eSeat Ass'y. Model Pro. Includes 10 to 10e
-
10a708000724 Black Seat Cover. Model STD, DPSBlack Seat Cover. Model STD, DPS
-
10a708000724 Black Seat Cover. Model HunterBlack Seat Cover. Model Hunter
-
10a708001972 Seat Cover. Model ProSeat Cover. Model Pro
-
10a708001979 Seat Cover. Model XMRSeat Cover. Model XMR
-
10a708000724 Seat Cover. Model XTSeat Cover. Model XT
-
10b708000759 Rubber StopperRubber Stopper
-
10c708000909 LatchLatch
-
10d705005761 Heat ShieldHeat Shield
-
10e708002077 Center, Corner Seat. Model ProCenter, Corner Seat. Model Pro
-
10e269001669 RH, Corner Seat. Model ProRH, Corner Seat. Model Pro
-
10e269001670 LH, Corner Seat. Model ProLH, Corner Seat. Model Pro
-
11>11b708002208 Seat Ass'y. Model T3Seat Ass'y. Model T3
-
11a605156558 Seat Cover. Model T3Seat Cover. Model T3
-
11b708000759 Rubber Stopper. Model T3Rubber Stopper. Model T3
-
12605456520 Front Bottom Support. Model T3Front Bottom Support. Model T3
-
13510005986 Support Central Cushion. Model T3Support Central Cushion. Model T3
-
14510005988 Support Rear Cushion. Model T3Support Rear Cushion. Model T3
-
15605456546 Rubber Damper. Model T3Rubber Damper. Model T3
-
16293150067 Rivet. Model T3Rivet. Model T3
-
17708000909 Latch. Model T3Latch. Model T3
-
18705005761 Heat Shield. Model T3Heat Shield. Model T3
-
19705204621 Support Rear Seat. Model T3Support Rear Seat. Model T3
-
20708000760 Bumper RubberBumper Rubber
-
21605456593 Decal. Model T3Decal. Model T3
-
50a708001487 Seat Base. Outlander MaxSeat Base. Outlander Max
-
50b>50b2708002088 Rear Seat. Outlander Max. Includes 50b to 50b2Rear Seat. Outlander Max. Includes 50b to 50b2
-
50b1708001290 Black Seat Cover. Outlander MaxBlack Seat Cover. Outlander Max
-
50b2250000048 Panel Nut M6 X 1.0. Outlander MaxPanel Nut M6 X 1.0. Outlander Max
-
50c>50c1708002085 Back Rest. Outlander Max. Includes 50c to 50c1Back Rest. Outlander Max. Includes 50c to 50c1
-
50c1708001841 Back Rest Cover. Outlander MaxBack Rest Cover. Outlander Max
-
50d207562044 Flanged Screw M6 X 20, Scotch Grip. Outlander MaxFlanged Screw M6 X 20, Scotch Grip. Outlander Max
-
50f>50f1708001532 Latch. Outlander Max. Includes 50f to 50f1Latch. Outlander Max. Includes 50f to 50f1
-
50f1234051410 Flat Washer M5. Outlander MaxFlat Washer M5. Outlander Max
-
50g293150108 Pop Rivet 3/16''. Outlander MaxPop Rivet 3/16''. Outlander Max
-
50h703500806 LH Passenger Seat Handle Kit. Outlander MaxLH Passenger Seat Handle Kit. Outlander Max
-
50j703500807 RH Passenger Seat Handle Kit. Outlander MaxRH Passenger Seat Handle Kit. Outlander Max
-
50k708001483 Seat Support. Outlander MaxSeat Support. Outlander Max
-
50m708000758 Rubber Stopper. Outlander MaxRubber Stopper. Outlander Max
-
50n708001511 Insert. Outlander MaxInsert. Outlander Max
-
50p708001512 Cap. Outlander MaxCap. Outlander Max
-
50q250000577 Torx Truss K40 X 12. Outlander MaxTorx Truss K40 X 12. Outlander Max
-
50r224060201 Flat Washer. Outlander MaxFlat Washer. Outlander Max
-
50s250000546 Oval Head Torx Screw K60 X 16. Outlander MaxOval Head Torx Screw K60 X 16. Outlander Max
-
50t250000806 Torx Truss M8 X 90. Outlander MaxTorx Truss M8 X 90. Outlander Max
-
50u705009248 Sleeve. Outlander MaxSleeve. Outlander Max
-
60708001794 Backrest. Model T3Backrest. Model T3
-
61605454799 Rubber. Model T3Rubber. Model T3
-
62705205026 Support. Model T3Support. Model T3
-
63250000675 Torx Truss Screw M6 x 12. Model T3Torx Truss Screw M6 x 12. Model T3
-
64708002039 Backrest Holder. Model T3Backrest Holder. Model T3
-
65510003533 Handle M8 X 35. Model T3Handle M8 X 35. Model T3
-
66708002169 Bushing. Model T3Bushing. Model T3
