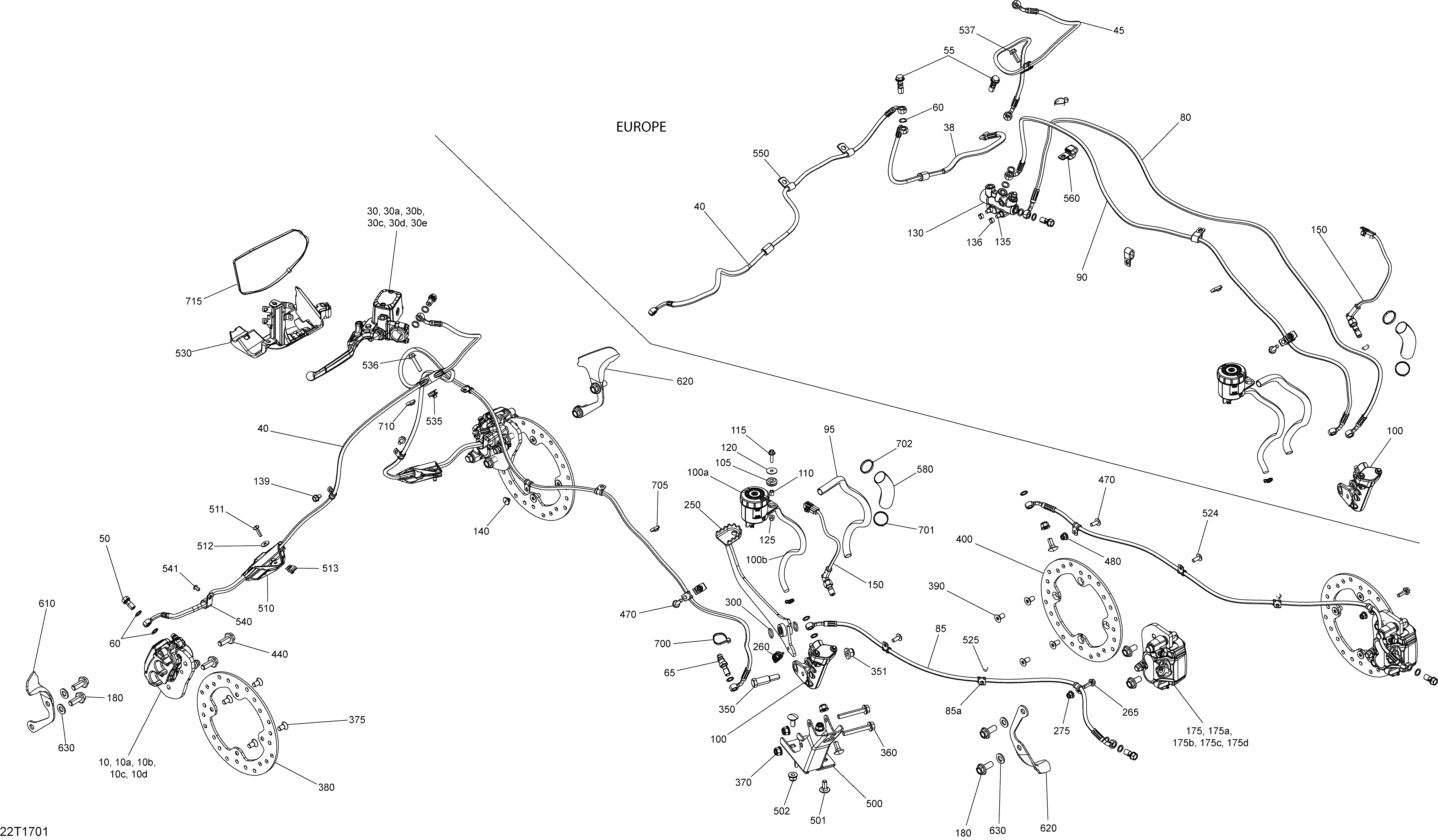

06- Brakes - All Models для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10>10d705600861 RH Front Caliper Ass'y. Except Model XMR. Includes 10 to 10d,RH Front Caliper Ass'y. Except Model XMR. Includes 10 to 10d,
-
10>10d703500967 RH Front Caliper Ass'y. Model XMR. Includes 10 to 10d,RH Front Caliper Ass'y. Model XMR. Includes 10 to 10d,
-
10>10d705600862 LH Front Caliper Ass'y. Except Model XMR. Includes 10 to 10d,LH Front Caliper Ass'y. Except Model XMR. Includes 10 to 10d,
-
10>10d703500968 LH Front Caliper Ass'y. Model XMR. Includes 10 to 10d,LH Front Caliper Ass'y. Model XMR. Includes 10 to 10d,
-
10a705601014 RH Brake Pad Kit. Except Model XMRRH Brake Pad Kit. Except Model XMR
-
10a715900249 RH Brake Pad Kit. Model XMRRH Brake Pad Kit. Model XMR
-
10a705601015 LH Brake Pad Kit. Except Model XMRLH Brake Pad Kit. Except Model XMR
-
10a715900248 LH Brake Pad Kit. Model XMRLH Brake Pad Kit. Model XMR
-
10b705601016 Pin SetPin Set
-
10c705601017 Bleeding ScrewBleeding Screw
-
10d705601018 SpringSpring
-
30>30e705601430 LH Front Master Cylinder. Includes 30 to 30eLH Front Master Cylinder. Includes 30 to 30e
-
30a705601013 Lever SetLever Set
-
30b507032477 Clamp And Screw KitClamp And Screw Kit
-
30c250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30d219800096 Cap SetCap Set
-
30e415129356 Screw M4 X 20Screw M4 X 20
-
38705601521 RH Front Hose. Model Europe, T3RH Front Hose. Model Europe, T3
-
40705601520 LH Front Hose. Model Europe, T3LH Front Hose. Model Europe, T3
-
40705601524 Front Hose. Except Model EuropeFront Hose. Except Model Europe
-
45705600967 Brake Handle Line. Model Europe, T3Brake Handle Line. Model Europe, T3
-
50705600609 Banjo BoltBanjo Bolt
-
55705600958 Banjo Bolt. Model Europe, T3Banjo Bolt. Model Europe, T3
-
60705600310 Copper WasherCopper Washer
-
65705601051 Bleeding ScrewBleeding Screw
-
80705601518 Outlet Hose, Master Cylinder. Model Europe, T3Outlet Hose, Master Cylinder. Model Europe, T3
-
85>85a705601323 RH Rear Hose. Outlander Europe, T3. Includes 85 to 85aRH Rear Hose. Outlander Europe, T3. Includes 85 to 85a
-
85>85a705601301 RH Rear Hose. Outlander Except Europe. Includes 85 to 85aRH Rear Hose. Outlander Except Europe. Includes 85 to 85a
-
85>85a705601324 RH Rear Hose. Outlander Max Europe, T3. Includes 85 to 85aRH Rear Hose. Outlander Max Europe, T3. Includes 85 to 85a
-
85>85a705601302 RH Rear Hose. Outlander Max Except Europe. Includes 85 to 85aRH Rear Hose. Outlander Max Except Europe. Includes 85 to 85a
-
85a715900250 Hose ClipHose Clip
-
90705600973 Inlet Hose, Master Cylinder. Model Europe, T3Inlet Hose, Master Cylinder. Model Europe, T3
-
95415079900 Tubing 10 mmTubing 10 mm
-
100>100b705601273 Rear Master Cylinder. Except Model Europe, T3. Includes 100 to 100bRear Master Cylinder. Except Model Europe, T3. Includes 100 to 100b
-
100>100b705601274 Rear Cylinder Master Ass'y. Model Europe, T3. Includes 100 to 100bRear Cylinder Master Ass'y. Model Europe, T3. Includes 100 to 100b
-
100a705601020 Oil TankOil Tank
-
100b705601019 Housing Oil HoseHousing Oil Hose
-
105414036300 GrommetGrommet
-
110293900112 BushingBushing
-
115207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
120224060201 Flat WasherFlat Washer
-
125233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
130705600994 Splitter. Model Europe, T3Splitter. Model Europe, T3
-
135210265040 Hex. Screw M6 X 40. Model Europe, T3Hex. Screw M6 X 40. Model Europe, T3
-
139210261640 Hex. Flanged Screw M6 X 10. Except Model Europe, T3Hex. Flanged Screw M6 X 10. Except Model Europe, T3
-
140390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601250 Brake Switch. Except Model Europe, T3Brake Switch. Except Model Europe, T3
-
150705601251 Brake Switch. Model Europe, T3Brake Switch. Model Europe, T3
-
175>175d705600859 RH Rear Caliper Ass'y. Includes 175 to 175d, Except XMRRH Rear Caliper Ass'y. Includes 175 to 175d, Except XMR
-
175>175d703500969 RH Rear Caliper Ass'y. Includes 175 to 175d, Model XMRRH Rear Caliper Ass'y. Includes 175 to 175d, Model XMR
-
175a705601016 Pin SetPin Set
-
175b705601017 Bleeding ScrewBleeding Screw
-
175c705601018 SpringSpring
-
175d705601014 RH Brake Pad Kit. Except Model XMRRH Brake Pad Kit. Except Model XMR
-
175d715900249 RH Brake Pad Kit. Model XMRRH Brake Pad Kit. Model XMR
-
180207502046 Hex. Flanged Screw M10 X 20. Except Model XMRHex. Flanged Screw M10 X 20. Except Model XMR
-
180207502546 Hex. Flanged Screw M10 X 25. Model XMRHex. Flanged Screw M10 X 25. Model XMR
-
250705601155 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
275233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300293300144 O-RingO-Ring
-
350250000513 Shoulder Screw M10Shoulder Screw M10
-
351233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
360207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
370233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
375235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
380705600999 Dics BrakeDics Brake
-
390235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
400705600999 Dics BrakeDics Brake
-
440207502546 Hex. Flanged Screw M10 X 25. Except Model XMRHex. Flanged Screw M10 X 25. Except Model XMR
-
440207503046 Hex. Flanged Screw M10 X 30, Scotch Grip. Model XMRHex. Flanged Screw M10 X 30, Scotch Grip. Model XMR
-
480233261414 Hex. Flanged Elastic Nut M6. Outlander MaxHex. Flanged Elastic Nut M6. Outlander Max
-
500705202000 Bracket Brake PedalBracket Brake Pedal
-
501207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
510705600962 Front Hose ProtectorFront Hose Protector
-
511250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
512250200025 Washer M5Washer M5
-
513250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
524250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
525390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
530705600983 Front Hose BracketFront Hose Bracket
-
535250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
536207563044 Hex. Flanged Screw M6 X 30, Scotch Grip. Except Model EuropeHex. Flanged Screw M6 X 30, Scotch Grip. Except Model Europe
-
537207562044 Flanged Screw M6 X 20, Scotch Grip. Model Europe, T3Flanged Screw M6 X 20, Scotch Grip. Model Europe, T3
-
540518321570 Open ClampOpen Clamp
-
541390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
550293650219 Clamp. Model Europe, T3Clamp. Model Europe, T3
-
560293650220 Clamp. Model Europe, T3Clamp. Model Europe, T3
-
580409902200 Tubing 25 mmTubing 25 mm
-
610705601214 LH Deflector. Model XMRLH Deflector. Model XMR
-
620705601215 RH Deflector. Model XMRRH Deflector. Model XMR
-
630234001410 Flat Washer 10 mm. Model XMRFlat Washer 10 mm. Model XMR
-
700414115200 Tie-Rap 180 mm. OutlanderTie-Rap 180 mm. Outlander
-
701414115200 Tie-Rap 180 mm. Outlander MaxTie-Rap 180 mm. Outlander Max
-
702414115200 Tie-Rap 180 mm. Outlander MaxTie-Rap 180 mm. Outlander Max
-
705414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
710414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
715293750047 Tie Rap, 533 mmTie Rap, 533 mm
