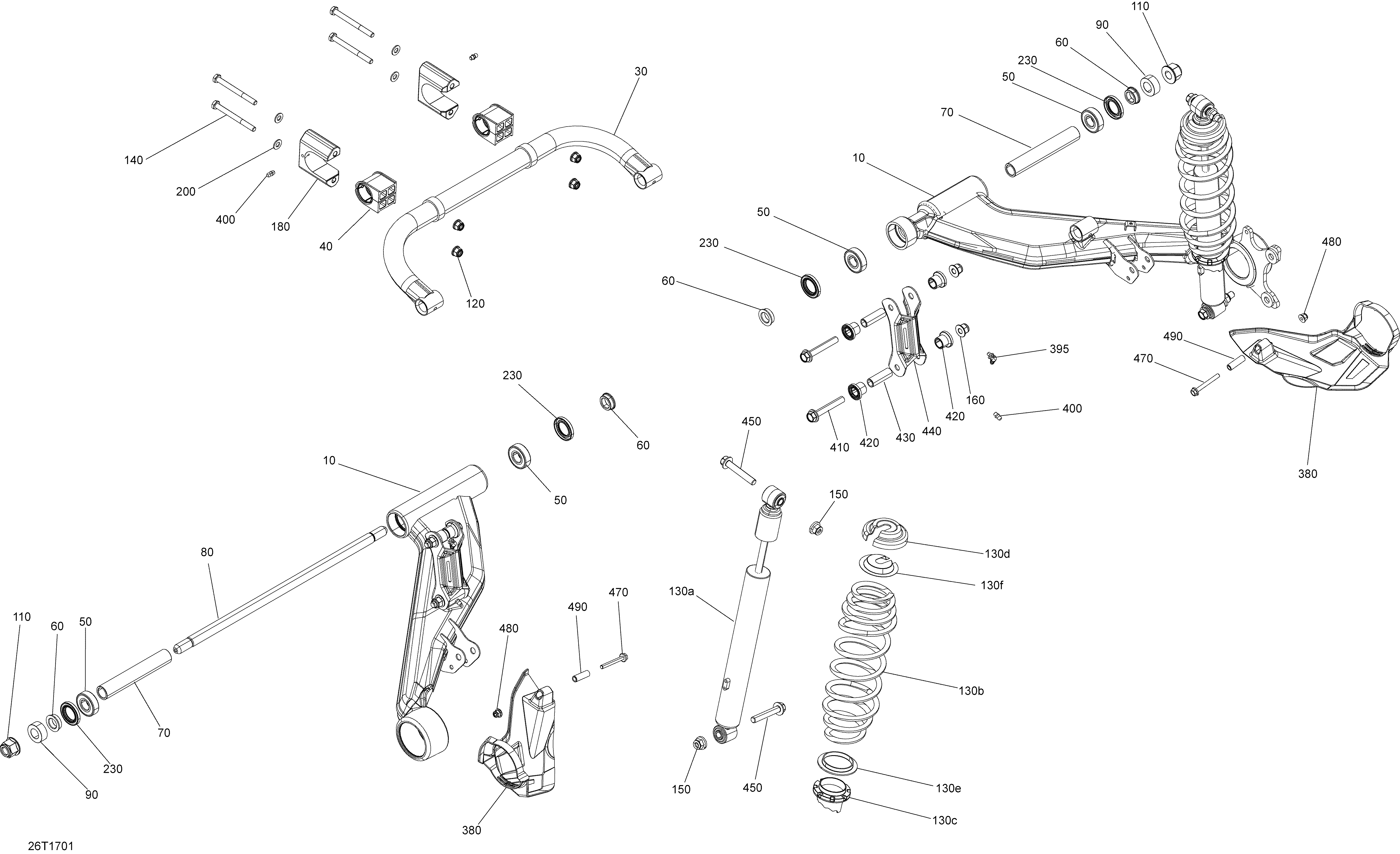

08- Rear Suspension - All Models для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10706001646 Black LH Swing ArmBlack LH Swing Arm
-
10706001647 Black RH Swing ArmBlack RH Swing Arm
-
30706001678 Sway BarSway Bar
-
40706002246 CushionCushion
-
50706000826 Ball BearingBall Bearing
-
60706001282 SpacerSpacer
-
70706002258 SpacerSpacer
-
80706001664 Axial Pivot M16Axial Pivot M16
-
90250200112 Flat Washer M17Flat Washer M17
-
110233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
120233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130a706001524 Rear Shock. Model STD, DPS, XTRear Shock. Model STD, DPS, XT
-
130a706000958 Shock. Model Pro, XMR, HunterShock. Model Pro, XMR, Hunter
-
130b706002475 Black Spring. Model Outlander STD, DPS, XTBlack Spring. Model Outlander STD, DPS, XT
-
130b706001577 Black Spring. Model Outlander MaxBlack Spring. Model Outlander Max
-
130b706002427 Black Spring. Model Pro , HunterBlack Spring. Model Pro , Hunter
-
130b706002494 Red Spring. Model XMRRed Spring. Model XMR
-
130c706002356 Adjuster Ring. Model STD, DPS, XTAdjuster Ring. Model STD, DPS, XT
-
130c505073625 Adjustment Cam. Model Pro, XMR, HunterAdjustment Cam. Model Pro, XMR, Hunter
-
130d706200881 Spring StopperSpring Stopper
-
130e503187500 Spring Guide. Model Pro, XMR, HunterSpring Guide. Model Pro, XMR, Hunter
-
130f706200785 Cap. Model STD, DPS, XTCap. Model STD, DPS, XT
-
130f706200785 Cap. Model Pro, XMR, HunterCap. Model Pro, XMR, Hunter
-
140207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
150233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
160233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
180706001099 Bushing HolderBushing Holder
-
200234081430 Flat Washer M8Flat Washer M8
-
230293200144 SealSeal
-
380706002482 LH ProtectorLH Protector
-
380706002483 RH ProtectorRH Protector
-
395293550056 Grease Fitting 90°Grease Fitting 90°
-
400250000315 Grease FittingGrease Fitting
-
410207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
420706200181 BushingBushing
-
430706201587 SleeveSleeve
-
440706001020 Swaybar LinkageSwaybar Linkage
-
450207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
470207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
480233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
490707001376 BushingBushing
