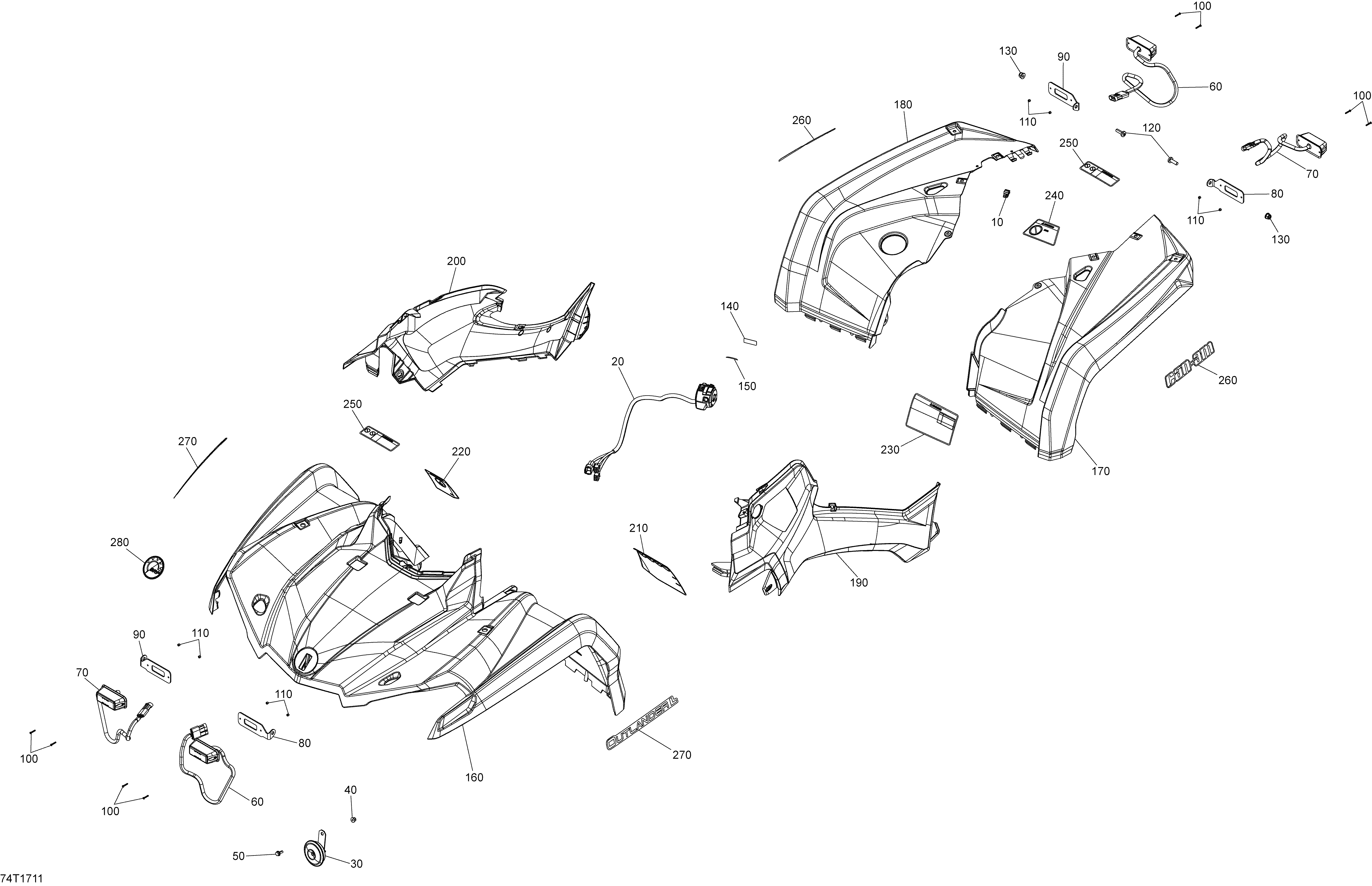

09- Accessories - Police Package для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10293750058 Locking Tie RapLocking Tie Rap
-
20710004654 Multi-Function HandleMulti-Function Handle
-
30710000983 HornHorn
-
40233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
50207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
60710005303 Blue Flasher Ass'yBlue Flasher Ass'y
-
70710005300 Red Flasher Ass'yRed Flasher Ass'y
-
80710004958 LH Front Flasher BracketLH Front Flasher Bracket
-
90710004959 RH Front Flasher BracketRH Front Flasher Bracket
-
100710004811 Socket Screw M3 X 14Socket Screw M3 X 14
-
110232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
120250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
130233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
140704905095 Label, Multi-Function HandleLabel, Multi-Function Handle
-
150704905157 Label Police HandleLabel Police Handle
-
160705009746 Black Mat Front FenderBlack Mat Front Fender
-
170705009744 Black Mat LH Rear FenderBlack Mat LH Rear Fender
-
180705009745 Black Mat RH Rear FenderBlack Mat RH Rear Fender
-
190705009293 Black Mat LH Side PanelBlack Mat LH Side Panel
-
200705009294 Black Mat RH Side PanelBlack Mat RH Side Panel
-
210704902787 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
220704902775 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
230704903236 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
240704902785 Warning Decal, PassengerWarning Decal, Passenger
-
250704904404 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
260704905079 CAN-AM DecalCAN-AM Decal
-
270704905077 Outlander DecalOutlander Decal
-
280516006888 BRP Logo, 68 mmBRP Logo, 68 mm
