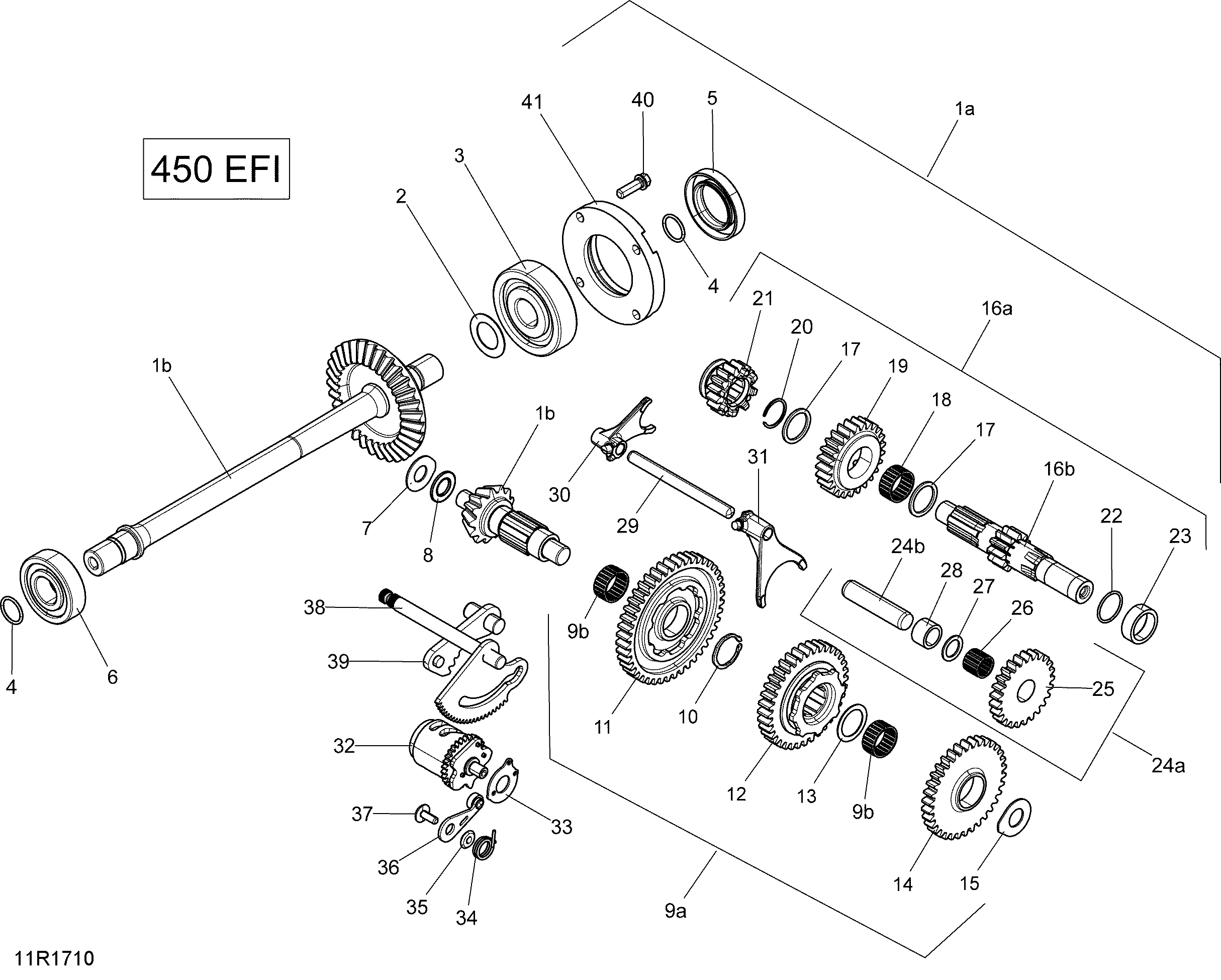

05- Gear Shift - 450 EFI для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
1a420684227 Drive Ass'y. Includes 1a to 28Drive Ass'y. Includes 1a to 28
-
1b420635558 Bevel Gear Ass'yBevel Gear Ass'y
-
2420281300 Washer Thrust SetWasher Thrust Set
-
3420632280 Ball Bearing 6405Ball Bearing 6405
-
4420430370 O-RingO-Ring
-
5420650683 Oil SealOil Seal
-
6420932825 Ball BearingBall Bearing
-
7420281306 Thrust Washer Set, MAG SideThrust Washer Set, MAG Side
-
8420632300 Axial Needle BearingAxial Needle Bearing
-
9a420281285 Gear Wheel Set. Includes 9a to 14Gear Wheel Set. Includes 9a to 14
-
9b420632070 Needle BearingNeedle Bearing
-
10420245850 Retaining RingRetaining Ring
-
11420635582 Sliding Gear, 44 TeethSliding Gear, 44 Teeth
-
12420635572 Gear Pinion, 36 TeethGear Pinion, 36 Teeth
-
13420427010 Thrust WasherThrust Washer
-
14420635572 Gear Pinion, 34 TeethGear Pinion, 34 Teeth
-
15420281302 Thrust Washer Set, CVT SideThrust Washer Set, CVT Side
-
16a420620441 Countershaft Ass'y, 11 Teeth. Includes 16a to 23Countershaft Ass'y, 11 Teeth. Includes 16a to 23
-
16b420220972 Countershaft, 11 TeethCountershaft, 11 Teeth
-
17420227862 Thrust WasherThrust Washer
-
18420632070 Needle BearingNeedle Bearing
-
19420635602 Gear Pinion, 25 TeethGear Pinion, 25 Teeth
-
20420445300 CirclipCirclip
-
21420635214 Shift Gear, 16 TeethShift Gear, 16 Teeth
-
22420631610 O-RingO-Ring
-
23420247113 Distance RingDistance Ring
-
24a420635673 Intermediate Gear Shaft Ass'y. Includes 24a to 28Intermediate Gear Shaft Ass'y. Includes 24a to 28
-
24b420229600 Needle PinNeedle Pin
-
25420635674 Intermediate Gear, 25 TeethIntermediate Gear, 25 Teeth
-
26420432034 Needle CageNeedle Cage
-
27420944192 Thrust WasherThrust Washer
-
28420247122 Distance RingDistance Ring
-
29420229540 PinPin
-
30420257330 Shift ForkShift Fork
-
31420257340 Shift ForkShift Fork
-
32420257329 Shift DrumShift Drum
-
33420627782 Isolating WasherIsolating Washer
-
34420238290 Index SpringIndex Spring
-
35420227711 Step RingStep Ring
-
36703500254 Index Lever KitIndex Lever Kit
-
37420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
38420620135 Shift Shaft Ass'yShift Shaft Ass'y
-
39420257315 Parking Lock Lever Ass'yParking Lock Lever Ass'y
-
40420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
41420610243 Bearing CoverBearing Cover
