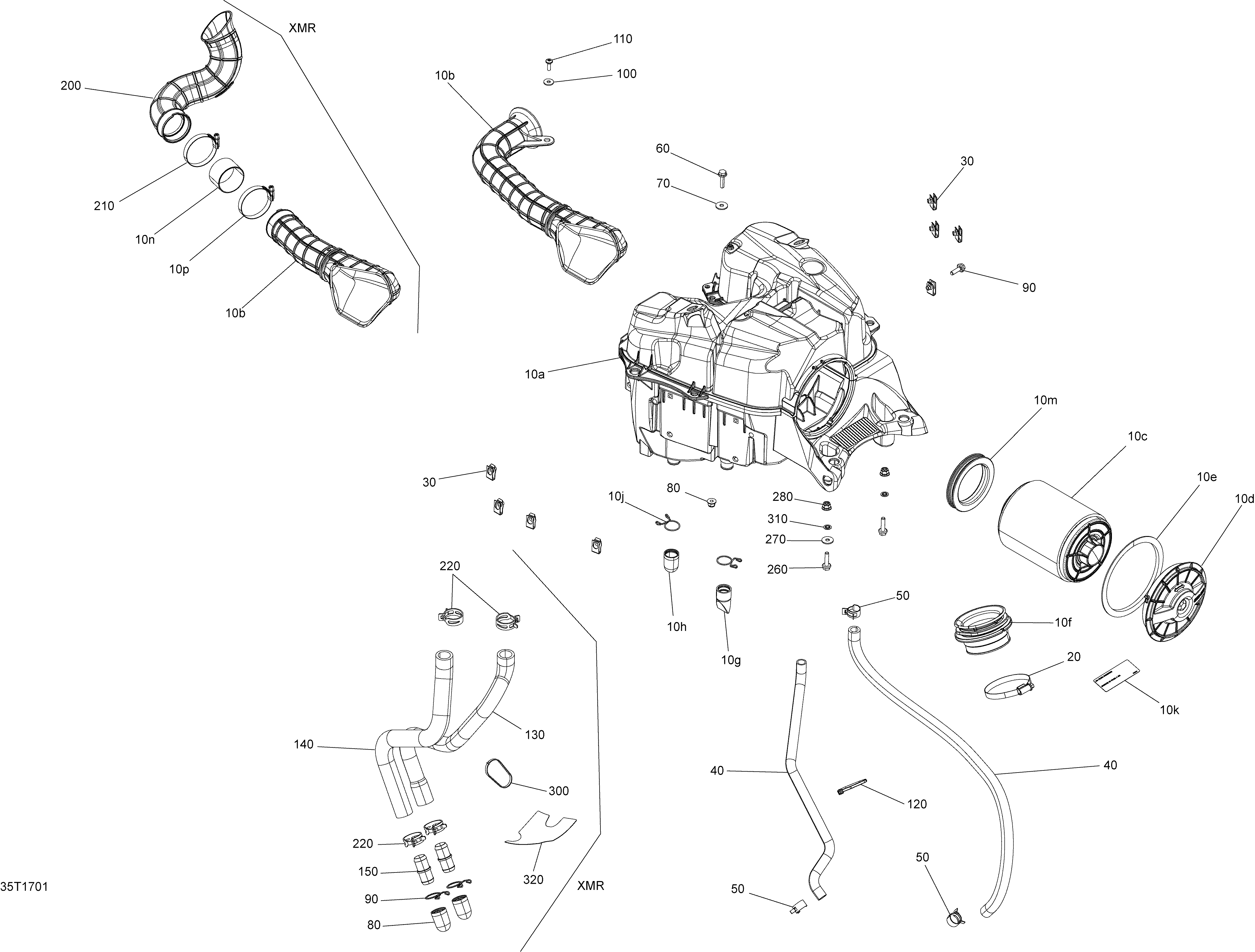

02- Air Intake Silencer - All Models для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10a707800599 Welded Air BoxWelded Air Box
-
10b707800375 Air Intake Hose. Except Package XMRAir Intake Hose. Except Package XMR
-
10b707800501 Air Intake Hose. Package XMRAir Intake Hose. Package XMR
-
10c707800371 Air FilterAir Filter
-
10d715002174 Intake Silencer Cap Ass'yIntake Silencer Cap Ass'y
-
10e293300175 GasketGasket
-
10f707800333 Intake AdaptorIntake Adaptor
-
10g707800404 Drain TubeDrain Tube
-
10h707800080 Drain TubeDrain Tube
-
10j707800278 Retainer ClipRetainer Clip
-
10k707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
10m707800470 Air Filter AdaptorAir Filter Adaptor
-
10n707800504 Ring. Package XMRRing. Package XMR
-
10p293650230 Gear Clamp. Package XMRGear Clamp. Package XMR
-
20293650091 Norma ClampNorma Clamp
-
30250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
40707800453 Vent Hose. Engine 570Vent Hose. Engine 570
-
40707800586 Hose. Engine 450Hose. Engine 450
-
50293650110 Norma ClampNorma Clamp
-
60207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
70250200082 Flat WasherFlat Washer
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
90207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100391301600 Washer. Except Package XMRWasher. Except Package XMR
-
110250000720 Torx Screw K50 X 16. Except Package XMRTorx Screw K50 X 16. Except Package XMR
-
120414115200 Tie-Rap 180 mm. Engine 570Tie-Rap 180 mm. Engine 570
-
130707800510 Formed Hose. Package XMRFormed Hose. Package XMR
-
140707800511 Formed Hose. Package XMRFormed Hose. Package XMR
-
150707800512 Straight Fitting. Package XMRStraight Fitting. Package XMR
-
200707800528 Air Intake Front. Package XMRAir Intake Front. Package XMR
-
210293650077 Norma Clamp. Package XMRNorma Clamp. Package XMR
-
220293650109 Norma Spring Clamp. Package XMRNorma Spring Clamp. Package XMR
-
260207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
270250200082 Flat WasherFlat Washer
-
280233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300414115200 Tie-Rap 180 mm. Package XMRTie-Rap 180 mm. Package XMR
-
310732610072 Push NutPush Nut
-
320707002106 Heat Shield. Package XMRHeat Shield. Package XMR
