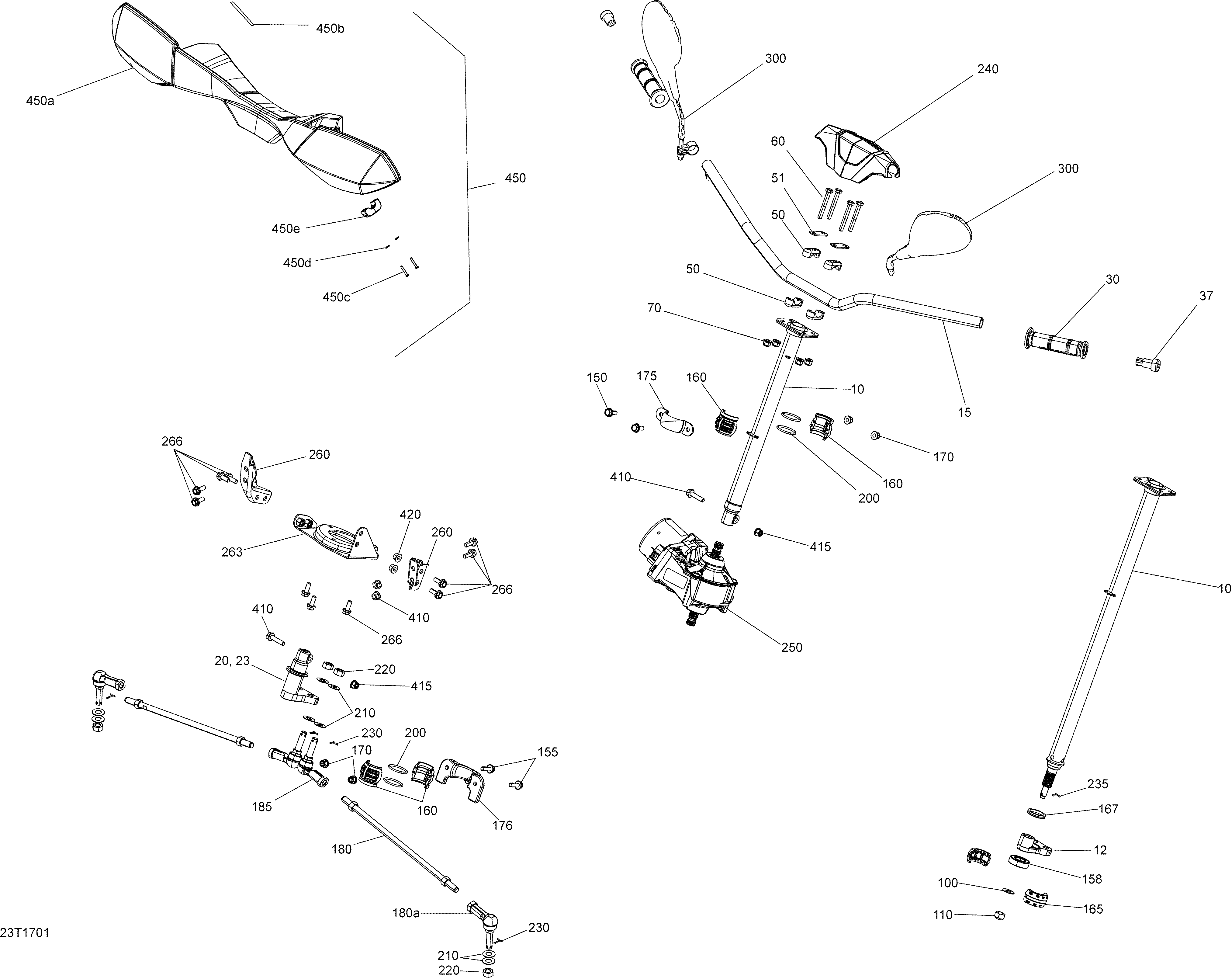

07- Steering - All Models для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10709401545 Black Upper Main Tube. Model Without DPSBlack Upper Main Tube. Model Without DPS
-
10709401750 Black Upper Main Tube. Model With DPSBlack Upper Main Tube. Model With DPS
-
12709401542 Pitman Arm. Model Without DPSPitman Arm. Model Without DPS
-
15709401240 Black SteeringBlack Steering
-
20709401748 Pitman Arm. Model With DPS Except XMRPitman Arm. Model With DPS Except XMR
-
23709401756 Pitman Arm. Model XMRPitman Arm. Model XMR
-
30709400493 Handle GripHandle Grip
-
37709400449 End PieceEnd Piece
-
50709401799 Steering SupportSteering Support
-
51709400509 StiffnerStiffner
-
60207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
100250200086 Flat Washer. Model Without DPSFlat Washer. Model Without DPS
-
110250000047 Hex. Flanged Elastic Nut M12. Model Without DPSHex. Flanged Elastic Nut M12. Model Without DPS
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
155207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
158503190396 Ball Bearing. Model Without DPSBall Bearing. Model Without DPS
-
160709400783 Spherical Half BushingSpherical Half Bushing
-
165709401370 Spherical Half Bushing. Model Without DPSSpherical Half Bushing. Model Without DPS
-
167293250177 Seal. Model Without DPSSeal. Model Without DPS
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180>180a703500922 Tie Rod Ass'y. Except Model XMR. Includes 180 to 180aTie Rod Ass'y. Except Model XMR. Includes 180 to 180a
-
180>180a703500923 Tie Rod Ass'y. Model XMR. Includes 180 to 180aTie Rod Ass'y. Model XMR. Includes 180 to 180a
-
180a709401837 Ball Joint, LH ThreadBall Joint, LH Thread
-
185709401839 Ball Joint, RH ThreadBall Joint, RH Thread
-
200293300068 O-RingO-Ring
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
235250400034 Cotter Pin. Model Without DPSCotter Pin. Model Without DPS
-
240709400939 Steering Cover. Except Model XT, HunterSteering Cover. Except Model XT, Hunter
-
250709401614 Power Steering. Model With DPSPower Steering. Model With DPS
-
260709402184 Power Steering Module Bracket. Model With DPSPower Steering Module Bracket. Model With DPS
-
260709401742 RH Power Steering Bracket. Model With DPSRH Power Steering Bracket. Model With DPS
-
263709401743 Power Steering Support. Model With DPSPower Steering Support. Model With DPS
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Model With DPSHex. Flanged Screw M8 X 20, Scotch Grip. Model With DPS
-
300709400406 LH Mirror. Model Europe, T3LH Mirror. Model Europe, T3
-
300709400407 RH Mirror. Model Europe, T3RH Mirror. Model Europe, T3
-
410207683544 Hex. Flanged Screw M8 X 35. Model With DPSHex. Flanged Screw M8 X 35. Model With DPS
-
415233281414 Hex. Flanged Elastic Nut M8. Model With DPSHex. Flanged Elastic Nut M8. Model With DPS
-
420233081416 Hex. Flanged Nut M8. Model With DPSHex. Flanged Nut M8. Model With DPS
-
450>450e703100352 Handle Guard Ass'y, XT. Model XT, Hunter. Includes 450 to 450eHandle Guard Ass'y, XT. Model XT, Hunter. Includes 450 to 450e
-
450a709400822 Handle Bar Protector. Model XT, HunterHandle Bar Protector. Model XT, Hunter
-
450b704902966 DPS Decal. Model XT, HunterDPS Decal. Model XT, Hunter
-
450c241142560 Hex. Flanged Screw K40 X 25. Model XT, HunterHex. Flanged Screw K40 X 25. Model XT, Hunter
-
450d211200035 Flat Washer. Model XT, HunterFlat Washer. Model XT, Hunter
-
450e517303264 U-Clamp. Model XT, HunterU-Clamp. Model XT, Hunter
