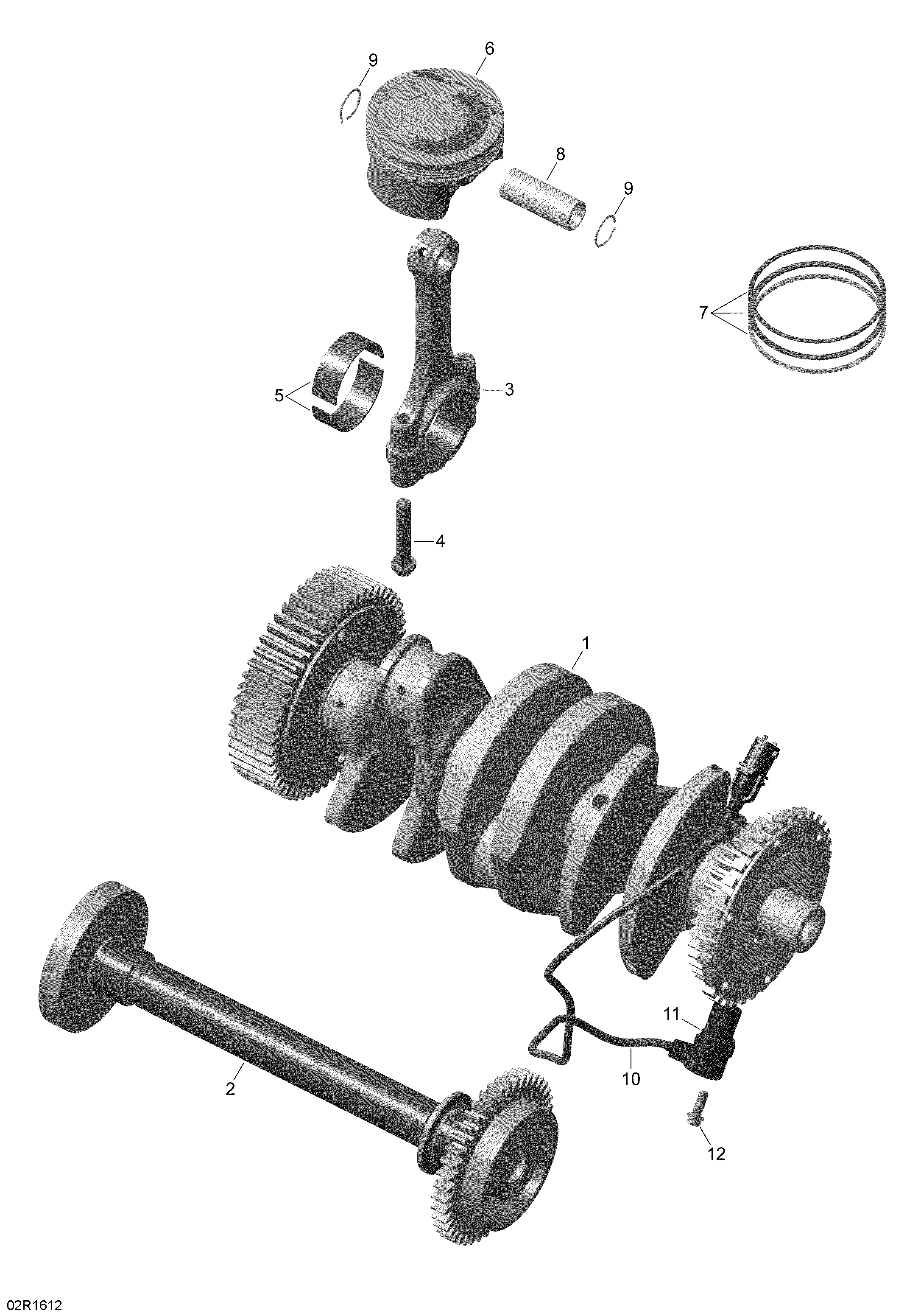

01- Crankshaft, Pistons and Balance Shaft для BRP RT - 2016
-
№АртикулНазвание
-
1420219786 CrankshaftCrankshaft
-
2420637206 Balance ShaftBalance Shaft
-
3420217595 Connecting Rod Ass'y. Includes 3 to 4Connecting Rod Ass'y. Includes 3 to 4
-
4420441460 Connecting Rod Screw M9 X 1Connecting Rod Screw M9 X 1
-
5420233291 Plain BearingPlain Bearing
-
6420685741 Piston 83.97 mm Ass'y. Includes 6 to 7Piston 83.97 mm Ass'y. Includes 6 to 7
-
7420685744 Piston Ring SetPiston Ring Set
-
8420216360 Piston PinPiston Pin
-
9420845107 Piston CirclipPiston Circlip
-
10420966570 Crankshaft Position Sensor Ass'y. Includes 10 to 11Crankshaft Position Sensor Ass'y. Includes 10 to 11
-
11420431580 O-RingO-Ring
-
12420440164 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
