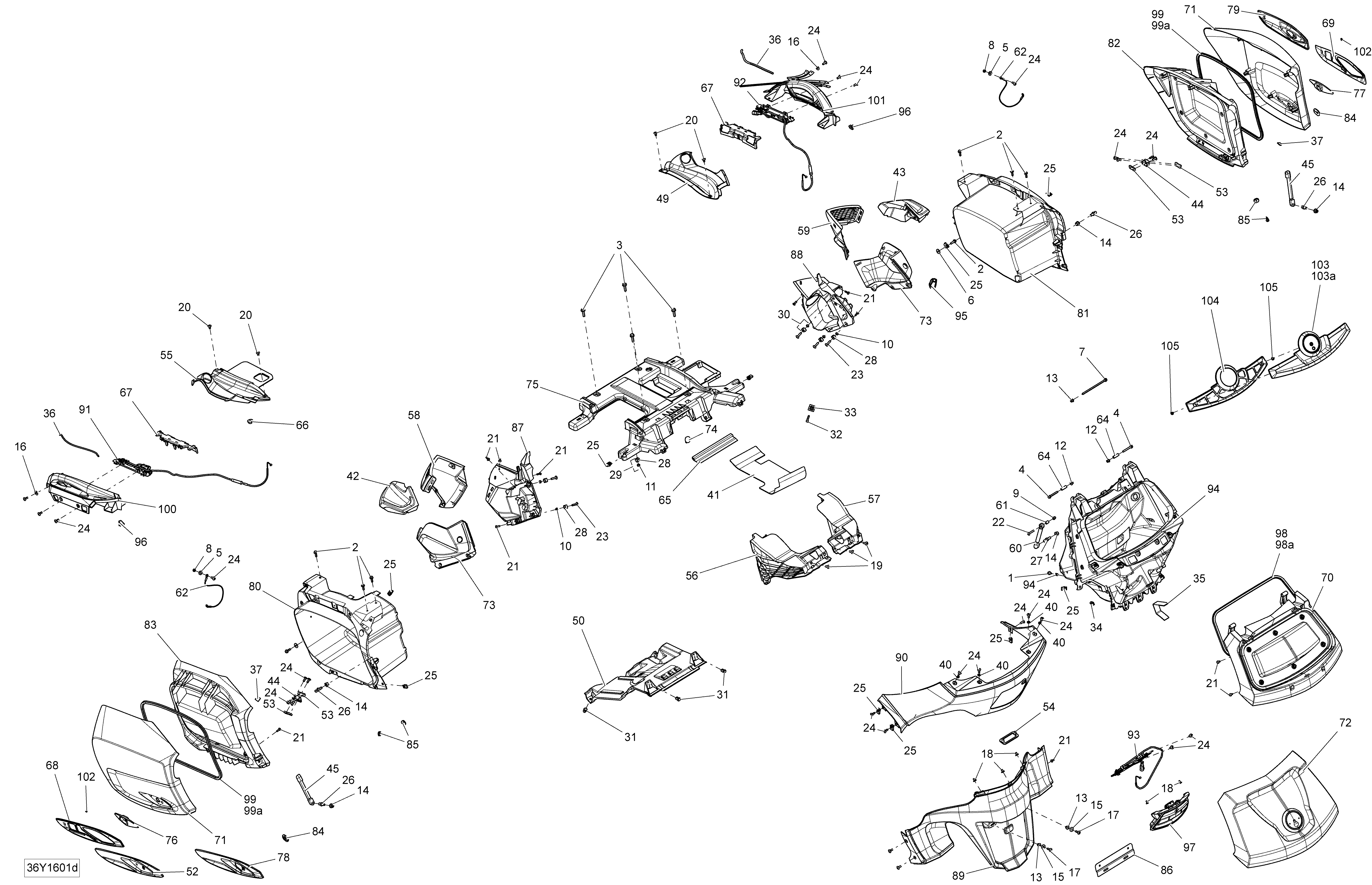

09- Luggages - Except Package Standard (Japan) для BRP RT - 2016
-
№АртикулНазвание
-
1207561234 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
3207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
4207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
5211200055 Flat Washer, Stainless/NeopreneFlat Washer, Stainless/Neoprene
-
6224061201 Flat WasherFlat Washer
-
7230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
8232061414 Hex. Nut M6Hex. Nut M6
-
9232361493 Domed Nut M6Domed Nut M6
-
10232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
11232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
12233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
13233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
16234062670 Flat Washer, StainlessFlat Washer, Stainless
-
17250000303 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
18250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
19250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
21250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
22250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
23250000880 Torx-Truss M/S M6 X 25Torx-Truss M/S M6 X 25
-
24250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
25250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
26250300016 Ball Head StudBall Head Stud
-
27250300039 Ball Head StudBall Head Stud
-
28269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
29269500725 Nut Housing Ass'yNut Housing Ass'y
-
30269501166 Nut Housing Ass'yNut Housing Ass'y
-
31293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
32293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
33293750040 Tie-rap MountTie-rap Mount
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35414843500 VELCRO-#8MVA HOOKVELCRO-#8MVA HOOK
-
36515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
37518327441 Lateral Console FoamLateral Console Foam
-
40705003207 Plastic WasherPlastic Washer
-
41705004173 Heat ShieldHeat Shield
-
42708000614 Deep Black LH Arm RestDeep Black LH Arm Rest
-
43708000615 Deep Black RH Arm RestDeep Black RH Arm Rest
-
44708300006 HingeHinge
-
45708300011 Gaz ShockGaz Shock
-
49708300027 RH Handle PannelRH Handle Pannel
-
50708300028 Under Tail Rear Wheel CoverUnder Tail Rear Wheel Cover
-
52708301179 Platinium Chrome RH Moulding. Model RT with Package SPlatinium Chrome RH Moulding. Model RT with Package S
-
52708301178 Platinium Chrome LH Moulding. Model RT with Package SPlatinium Chrome LH Moulding. Model RT with Package S
-
52708301834 Black Carbon Moulding Rh. Model RT with Package SPEBlack Carbon Moulding Rh. Model RT with Package SPE
-
52708301833 Moulding Lh. Model RT with Package SPEMoulding Lh. Model RT with Package SPE
-
53708300129 PlatePlate
-
54708300177 PlatePlate
-
55708300209 LH Handle PannelLH Handle Pannel
-
56708300327 LH Inner FenderLH Inner Fender
-
57708300328 RH Inner FenderRH Inner Fender
-
58708300381 Deep Black LH GrillDeep Black LH Grill
-
59708300382 Deep Black RH GrillDeep Black RH Grill
-
60708300383 Gaz ShockGaz Shock
-
61708300384 SpacerSpacer
-
62708300385 Retainer CableRetainer Cable
-
64708300394 SpacerSpacer
-
65708300397 SealSeal
-
66708300405 CapCap
-
67708300514 Latch ProtectorLatch Protector
-
68708300650 LH Moulding TrimLH Moulding Trim
-
69708300651 RH Moulding TrimRH Moulding Trim
-
70708300678 Inner CoverInner Cover
-
71708301191 Vegas White RH Cover. Model RT with Color Pearl WhiteVegas White RH Cover. Model RT with Color Pearl White
-
71708301190 Vegas White LH Cover. Model RT with Color Pearl WhiteVegas White LH Cover. Model RT with Color Pearl White
-
71708302013 Black Monolith RH Cover. Model RT with Color Monolith BlackBlack Monolith RH Cover. Model RT with Color Monolith Black
-
71708302012 Black Monolith LH Cover. Model RT with Color Monolith BlackBlack Monolith LH Cover. Model RT with Color Monolith Black
-
71708301405 Intense Red RH Cover. Model RT with Color Intense RedIntense Red RH Cover. Model RT with Color Intense Red
-
71708301404 Intense Red LH Cover. Model RT with Color Intense RedIntense Red LH Cover. Model RT with Color Intense Red
-
72708300700 Vegas White Central Cover. Model RT with Color Pearl WhiteVegas White Central Cover. Model RT with Color Pearl White
-
72708301394 Steel Black Central Cover. Model RT with Color Monolith BlackSteel Black Central Cover. Model RT with Color Monolith Black
-
72708301395 Intense Red Pearl Central Cover. Model RT with Color Intense RedIntense Red Pearl Central Cover. Model RT with Color Intense Red
-
73708300709 Vegas White RH Arm Cover. Model RT with Color Pearl WhiteVegas White RH Arm Cover. Model RT with Color Pearl White
-
73708300708 Vegas White LH Arm Cover. Model RT with Color Pearl WhiteVegas White LH Arm Cover. Model RT with Color Pearl White
-
73708301409 Steel Black RH Arm Cover. Model RT with Color Monolith BlackSteel Black RH Arm Cover. Model RT with Color Monolith Black
-
73708301408 Steel Black LH Arm Cover. Model RT with Color Monolith BlackSteel Black LH Arm Cover. Model RT with Color Monolith Black
-
73708301411 Intense Red RH Arm Cover. Model RT with Color Intense RedIntense Red RH Arm Cover. Model RT with Color Intense Red
-
73708301410 Intense Red LH Arm Cover. Model RT with Color Intense RedIntense Red LH Arm Cover. Model RT with Color Intense Red
-
74708300716 Vegas White LH Cap. Model RT with Color Pearl WhiteVegas White LH Cap. Model RT with Color Pearl White
-
74708301412 Steel Black LH Cap. Model RT with Color Monolith BlackSteel Black LH Cap. Model RT with Color Monolith Black
-
74708301413 Intense Red LH Cap. Model RT with Color Intense RedIntense Red LH Cap. Model RT with Color Intense Red
-
75708300781 Rear Support Ass'yRear Support Ass'y
-
76708300979 LH Flash SupportLH Flash Support
-
77708300980 RH Flash SupportRH Flash Support
-
78708301014 Chrome LH MouldingChrome LH Moulding
-
79708301015 Chrome RH MouldingChrome RH Moulding
-
80708301016 LH CargoLH Cargo
-
81708301017 RH CargoRH Cargo
-
82708301022 RH Cover InteriorRH Cover Interior
-
83708301023 LH Cover InteriorLH Cover Interior
-
84708301024 Retaining WasherRetaining Washer
-
85708301025 GrommetGrommet
-
86708301523 Plate Support licensePlate Support license
-
87708301555 LH Sound BoxLH Sound Box
-
88708301556 RH Sound BoxRH Sound Box
-
89708301557 Rear FenderRear Fender
-
90708301564 Vegas White Rear Pannel. Model RT with Color Pearl WhiteVegas White Rear Pannel. Model RT with Color Pearl White
-
90708301571 Steel Black Rear Pannel. Model RT with Color Monolith BlackSteel Black Rear Pannel. Model RT with Color Monolith Black
-
90708301572 Intense Red Rear Pannel. Model RT with Color Intense RedIntense Red Rear Pannel. Model RT with Color Intense Red
-
91708301640 LH LatchLH Latch
-
92708301641 RH LatchRH Latch
-
93708301642 Center LatchCenter Latch
-
94708301798 Storage BinStorage Bin
-
95708302047 Rh Radio Antenna BaseRh Radio Antenna Base
-
96710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
97708301039 Main ControlMain Control
-
98293830151 SealSeal
-
99293830151 SealSeal
-
100708300496 LH Passenger Handle Heat Ass'yLH Passenger Handle Heat Ass'y
-
101708300498 RH Passenger Handle Heat Ass'yRH Passenger Handle Heat Ass'y
-
102250100163 Pressure NutPressure Nut
-
103708301822 MouldingMoulding
-
104708300652 Central Moulding TrimCentral Moulding Trim
-
105250100163 Pressure NutPressure Nut
-
103a219400192 Moulding KitMoulding Kit
-
98a293830151 SealSeal
-
99a293830151 SealSeal
