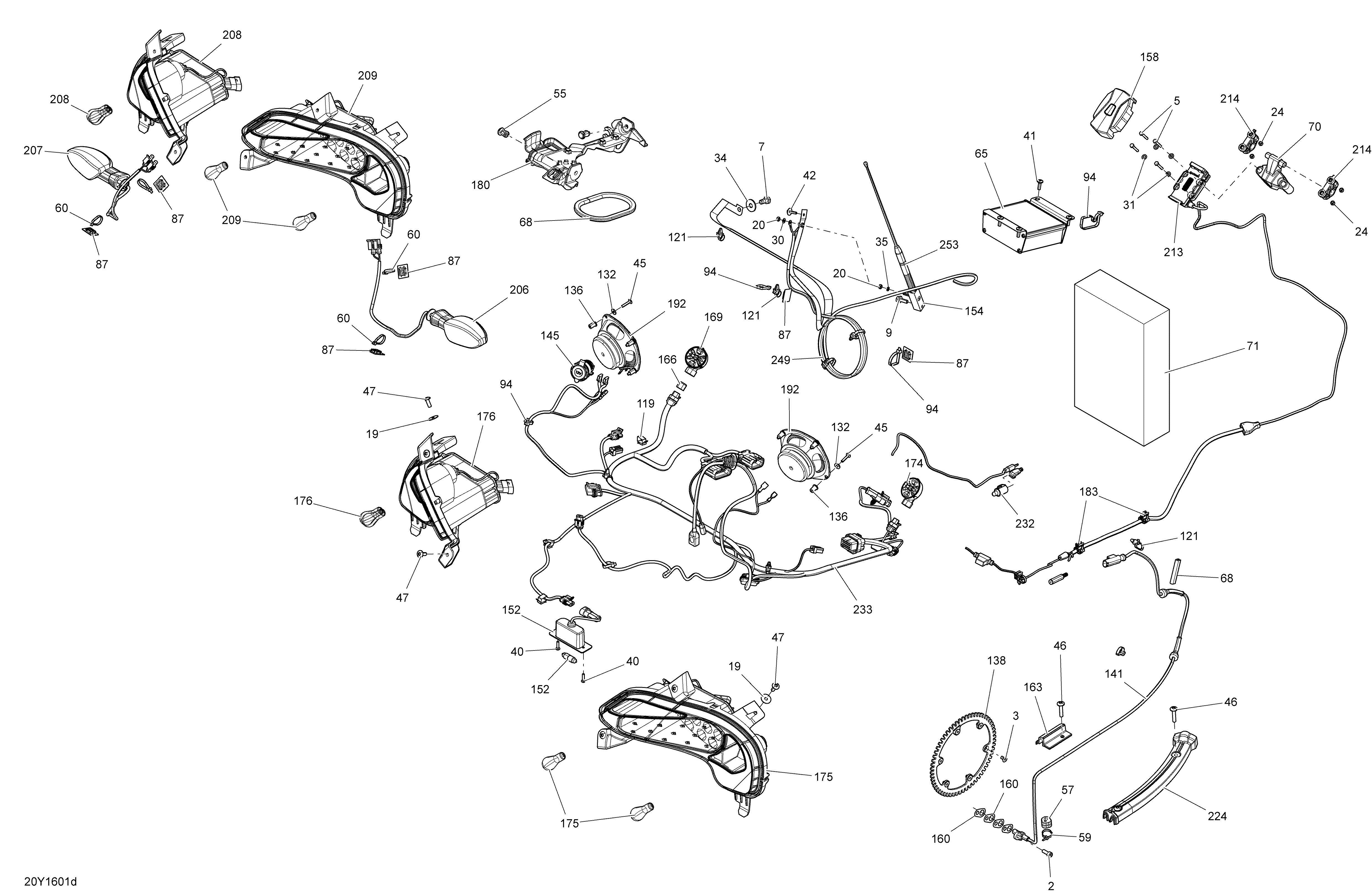

10- Electrical System - Tail Light And Accessories для BRP RT - 2016
-
№АртикулНазвание
-
2205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
3205851036 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
5207142544 Hex. Screw M4 X 25. Australia ModelHex. Screw M4 X 25. Australia Model
-
7207381660 Hex. Screw M8 X 16, Scotch GripHex. Screw M8 X 16, Scotch Grip
-
9207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
19224060201 Flat WasherFlat Washer
-
20232041200 Brass Hex Nut M4 DIN.934Brass Hex Nut M4 DIN.934
-
24232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
30234040200 Brass Flat Washer DIN.433 M4Brass Flat Washer DIN.433 M4
-
31234051600 Flat Washer M5, StainlessFlat Washer M5, Stainless
-
34234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
35234140602 Curved Stainless Lock Washer DIN.128ACurved Stainless Lock Washer DIN.128A
-
40250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
41250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
42250000725 Screw M4 X 16Screw M4 X 16
-
45250000783 TORX-TRUSS M/S M4 X 20TORX-TRUSS M/S M4 X 20
-
46250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
47250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
55293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
57293720084 GrommetGrommet
-
59293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
60293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
65710004792 Radio AssemblyRadio Assembly
-
68271001530 TrimTrim
-
70709401318 GPS Support, Black. Package LTDGPS Support, Black. Package LTD
-
71710003433 GPS Kit. Package LTD North AmericaGPS Kit. Package LTD North America
-
71710004885 GPS Kit. Package LTD Except North AmericaGPS Kit. Package LTD Except North America
-
87293750040 Tie-rap MountTie-rap Mount
-
94414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
119414227300 ClipClip
-
132517225900 Flat WasherFlat Washer
-
136705003635 Well Rubber Nut M4 X 0.7Well Rubber Nut M4 X 0.7
-
138705601372 Sensor WheelSensor Wheel
-
141706202361 Speed SensorSpeed Sensor
-
145710001248 Outlet DCOutlet DC
-
152710001451 License LightLicense Light
-
154710001532 Antenna SupportAntenna Support
-
158710001538 GPS Protector Support. Package LTDGPS Protector Support. Package LTD
-
160710002023 ShimShim
-
163710002145 Hose SupportHose Support
-
166710002212 Rubber Plug, 16.65 X 5.35 mm. Package STDRubber Plug, 16.65 X 5.35 mm. Package STD
-
169710002349 LH Housing. Except Package STDLH Housing. Except Package STD
-
174710002464 RH Housing Passenger SwitchRH Housing Passenger Switch
-
175710002501 RH Rear Tail LightRH Rear Tail Light
-
176710002502 LH Rear Tail LightLH Rear Tail Light
-
180710002860 Rear SupportRear Support
-
183710002896 Tie-Rap ClipTie-Rap Clip
-
192710003232 Rear SpeakerRear Speaker
-
206710003566 RH Rear Flasher. Japan ModelRH Rear Flasher. Japan Model
-
207710003567 LH Rear Flasher. Japan ModelLH Rear Flasher. Japan Model
-
208710003575 LH Rear Tail Light. Japan ModelLH Rear Tail Light. Japan Model
-
209710003576 RH Rear Tail Light. Japan ModelRH Rear Tail Light. Japan Model
-
213710003822 GPS Harness. Package LTDGPS Harness. Package LTD
-
214710003848 Clamp. Package LTDClamp. Package LTD
-
224710004281 ProtectorProtector
-
232710004656 Rubber PlugRubber Plug
-
233710004664 Cargo Harness. See Cargo HarnessCargo Harness. See Cargo Harness
-
249710004930 Antenna Cable AssemblyAntenna Cable Assembly
-
253710005084 Short AntennaShort Antenna
