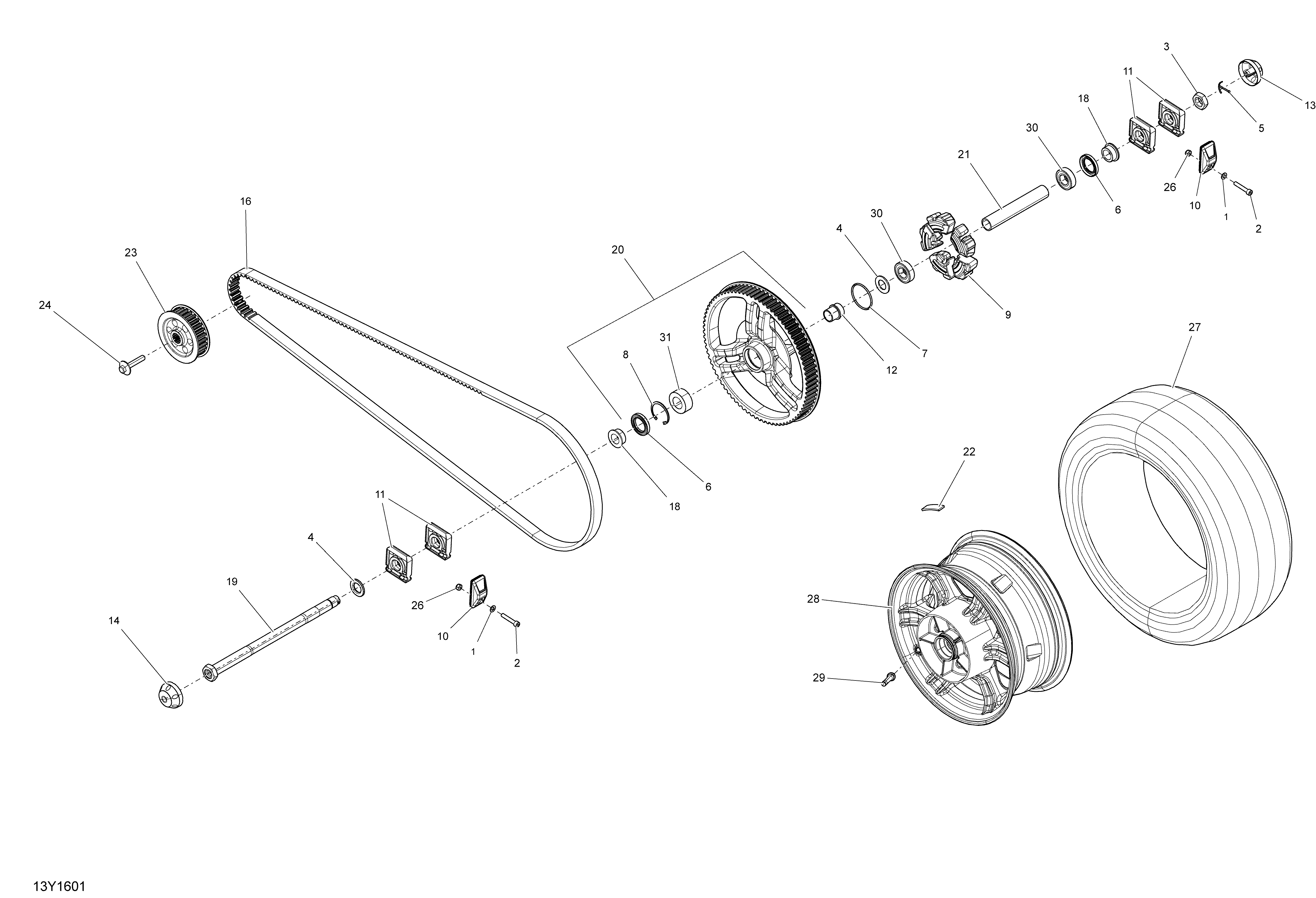

08- Drive System, Rear для BRP RT - 2016
-
№АртикулНазвание
-
1234081410 Flat Washer 8 mmFlat Washer 8 mm
-
2250000713 Socket Screw DIN.912Socket Screw DIN.912
-
3250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
4250200156 Flat WasherFlat Washer
-
5250400047 Cotter PinCotter Pin
-
6293200094 SealSeal
-
7293300124 O-RingO-Ring
-
8293370053 CirclipCirclip
-
9705500736 DamperDamper
-
10705500758 Adjustment SupportAdjustment Support
-
11705500770 Sliding BlockSliding Block
-
12705500853 SpacerSpacer
-
13705501022 Cap RHCap RH
-
14705501081 Cap LHCap LH
-
16705501304 Drive BeltDrive Belt
-
18705501602 SpacerSpacer
-
19705501691 Rear Wheel AxleRear Wheel Axle
-
20705502015 Silver Pulley Ass'y, 79 Teeth. Model with Package STDSilver Pulley Ass'y, 79 Teeth. Model with Package STD
-
20705502016 Carbon Black Pulley Ass'y, 79 Teeth. Model without Package STDCarbon Black Pulley Ass'y, 79 Teeth. Model without Package STD
-
21705502093 SpacerSpacer
-
22705502106 Self Adhesive WeightSelf Adhesive Weight
-
23705502134 Sprocket 28 ThoothSprocket 28 Thooth
-
24705502292 Screw-Hex.Flange Din.6921 S.GripScrew-Hex.Flange Din.6921 S.Grip
-
26250100141 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
27705501464 Rear TireRear Tire
-
28705502089 Metallic Silver Rear Rim. Model with Package STDMetallic Silver Rear Rim. Model with Package STD
-
28705501992 Black Rear Rim. Model without Package STDBlack Rear Rim. Model without Package STD
-
29705400193 Rim Valve With CapRim Valve With Cap
-
30293350067 Ball BearingBall Bearing
-
31293350065 Double Row BearingDouble Row Bearing
