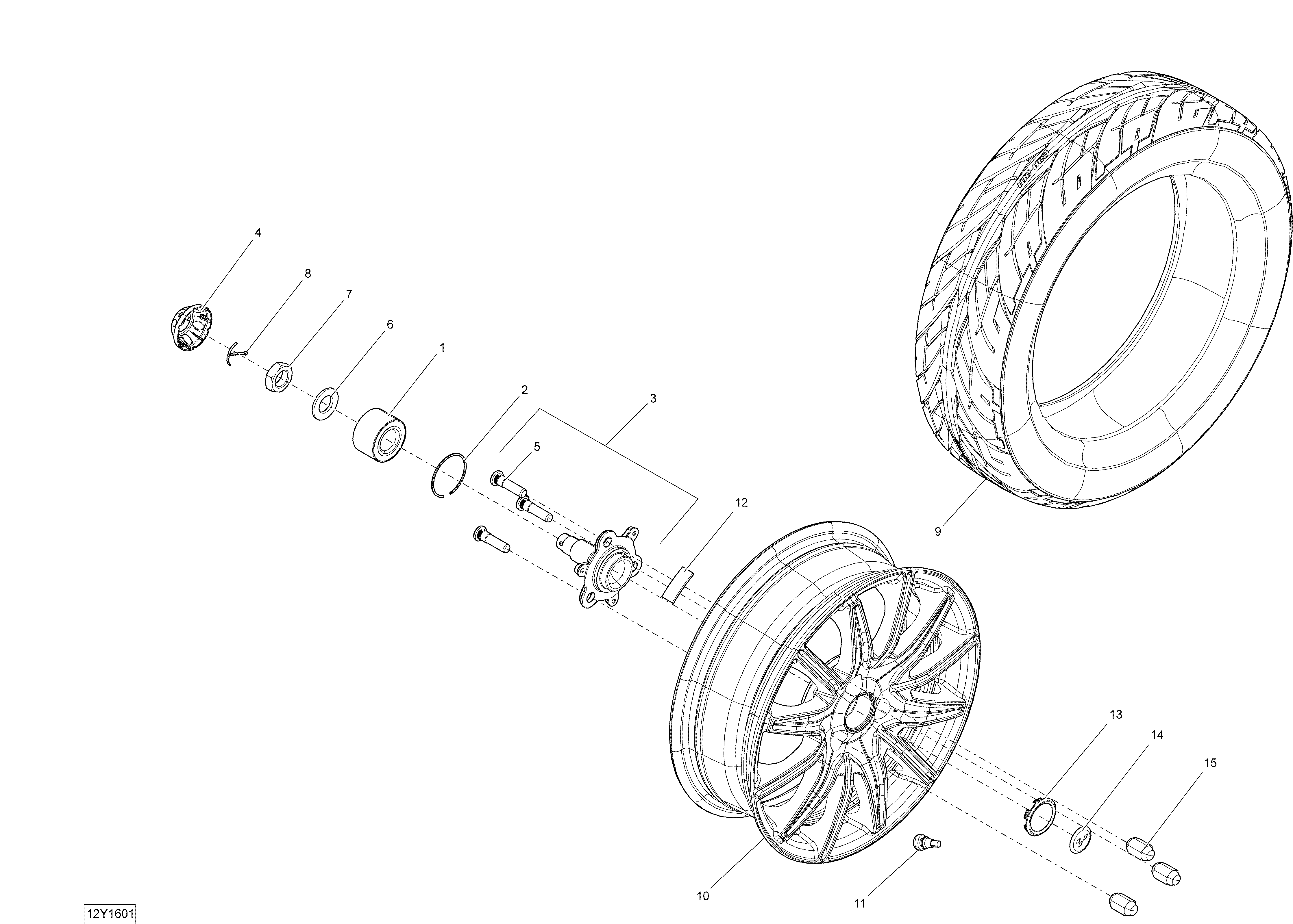

07- Drive System, Front для BRP RT - 2016
-
№АртикулНазвание
-
1293350040 Cone BearingCone Bearing
-
2293370019 CirclipCirclip
-
3706202435 HubHub
-
4705401100 Wheel CapWheel Cap
-
5250300058 Wheel StudWheel Stud
-
6250200156 Flat WasherFlat Washer
-
7250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
8250400047 Cotter PinCotter Pin
-
9706202317 Front TireFront Tire
-
10706202214 Carbon Black Front Rim. Model with Package SCarbon Black Front Rim. Model with Package S
-
10705401734 Black Chrome Front Wheel. Model with Package SPEBlack Chrome Front Wheel. Model with Package SPE
-
10219800372 Chrome Front Wheel. Model with Package LTDChrome Front Wheel. Model with Package LTD
-
10706201790 Silver Front Wheel. Model with Package STDSilver Front Wheel. Model with Package STD
-
11705400193 Rim Valve With CapRim Valve With Cap
-
12705502106 Self Adhesive WeightSelf Adhesive Weight
-
13705400388 Wheel CapWheel Cap
-
14704905260 Spyder LogoSpyder Logo
-
15250100155 Black Wheel Nut M12 X 1.5. Model with Package S / SPEBlack Wheel Nut M12 X 1.5. Model with Package S / SPE
-
15250100154 Chrome Wheel Nut M12 X 1.5. Model with Package STD / LTDChrome Wheel Nut M12 X 1.5. Model with Package STD / LTD
