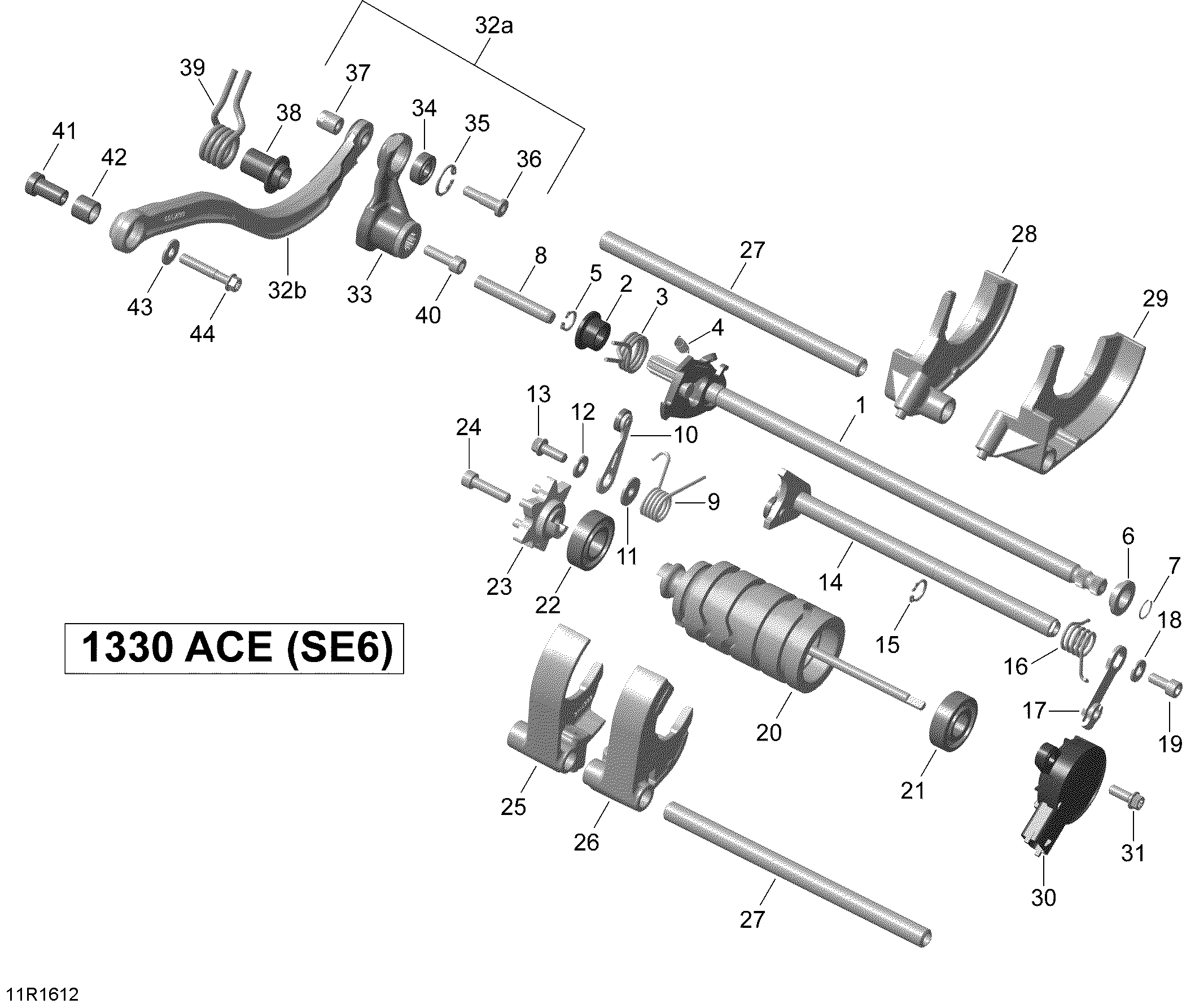

05- Shifting System - SE6 для BRP RT - 2016
-
№АртикулНазвание
-
1420637433 Shift Shaft Ass'y. Includes 1 to 5Shift Shaft Ass'y. Includes 1 to 5
-
2420247948 SleeveSleeve
-
3420239422 SpringSpring
-
4420239430 SpringSpring
-
5420945060 Retaining Ring 11 X 1Retaining Ring 11 X 1
-
6420247662 Step RingStep Ring
-
7420245440 Snap RingSnap Ring
-
8420229384 Pin 8, M6 X 55Pin 8, M6 X 55
-
9420239243 Index SpringIndex Spring
-
10420248489 Index LeverIndex Lever
-
11420227716 Step RingStep Ring
-
12224061121 Flat WasherFlat Washer
-
13420440164 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
14420637155 Gear Locking Shaft Ass'y. Includes 14 to 15Gear Locking Shaft Ass'y. Includes 14 to 15
-
15420945470 Retaining RingRetaining Ring
-
16420838419 SpringSpring
-
17420248275 Control LeverControl Lever
-
18224061121 Flat WasherFlat Washer
-
19420840391 Allen Screw M6 X 14Allen Screw M6 X 14
-
20420657167 Shift DrumShift Drum
-
21420932290 Ball BearingBall Bearing
-
22420232625 Ball BearingBall Bearing
-
23420657174 Shim IndexShim Index
-
24420840686 Allen Screw M8 X 40Allen Screw M8 X 40
-
25420657147 Shift ForkShift Fork
-
26420657142 Shift ForkShift Fork
-
27420657150 Fork SpindleFork Spindle
-
28420657137 Shift ForkShift Fork
-
29420657133 Shift ForkShift Fork
-
30420265120 Angle Rotation SensorAngle Rotation Sensor
-
31420440164 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
32a420657196 Shift Actuating Lever Ass'y. Includes 32a to 37Shift Actuating Lever Ass'y. Includes 32a to 37
-
33420657216 Gear Shift Lever Ass'y. Includes 33 to 35Gear Shift Lever Ass'y. Includes 33 to 35
-
36420441790 Fitting BoltFitting Bolt
-
37420242350 Hex. Nut M6Hex. Nut M6
-
38420647221 SleeveSleeve
-
39420638011 SpringSpring
-
40420241939 Allen Screw M6 X 20Allen Screw M6 X 20
-
41420249180 SleeveSleeve
-
42420232031 Needle BushingNeedle Bushing
-
43420627400 WasherWasher
-
44420440270 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
