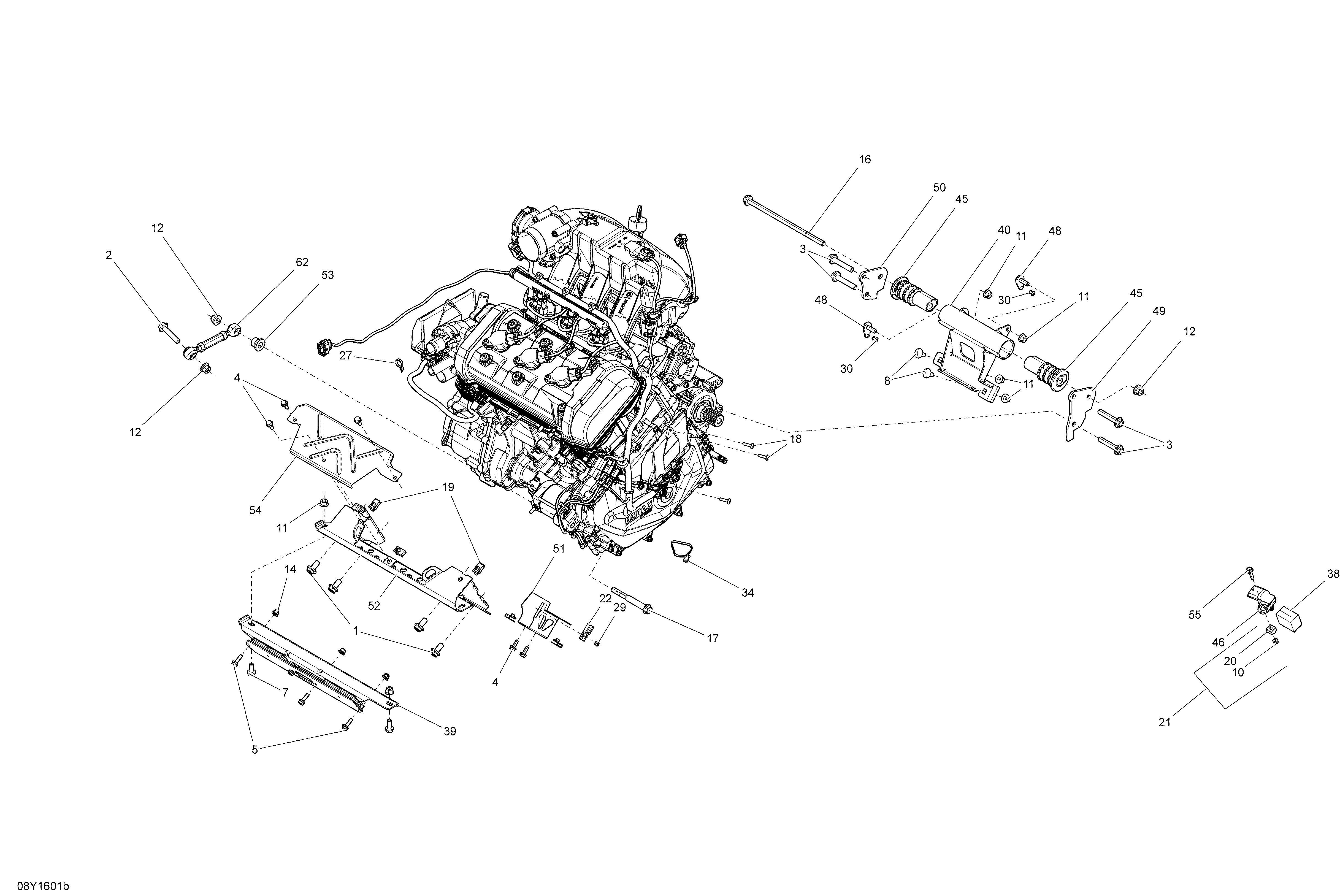

01- Engine - SE6 для BRP RT - 2016
-
№АртикулНазвание
-
1207502044 Flanged Hex Screw M10 X 20Flanged Hex Screw M10 X 20
-
2207504546 Hex. Flanged Screw M10 X 45 Scotch GripHex. Flanged Screw M10 X 45 Scotch Grip
-
3207505544 Hex. Flanged Screw M10 X 55, Scotch GripHex. Flanged Screw M10 X 55, Scotch Grip
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
8207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
10232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
11233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
12233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16250000507 Flanged Hex Screw M10 X 220Flanged Hex Screw M10 X 220
-
17250000702 Hex. Flanged Screw M10 X 100Hex. Flanged Screw M10 X 100
-
18250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
19250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
20269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
21269500725 Nut Housing Ass'yNut Housing Ass'y
-
22270000141 ClipClip
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
34515175220 Tie RapTie Rap
-
38707000586 FilterFilter
-
39707000876 Rubber MountRubber Mount
-
40707000877 Frame EtensionFrame Etension
-
45707000973 Rubber MountRubber Mount
-
46707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
48707001292 AttachAttach
-
49707001293 LH Engine SupportLH Engine Support
-
50707001294 RH Engine SupportRH Engine Support
-
51707001353 Connector SupportConnector Support
-
52707001561 Front Engine SupportFront Engine Support
-
53707001736 SpacerSpacer
-
54707601057 Upper Heat DeflectorUpper Heat Deflector
-
55207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
62707001918 Connecting RodConnecting Rod
