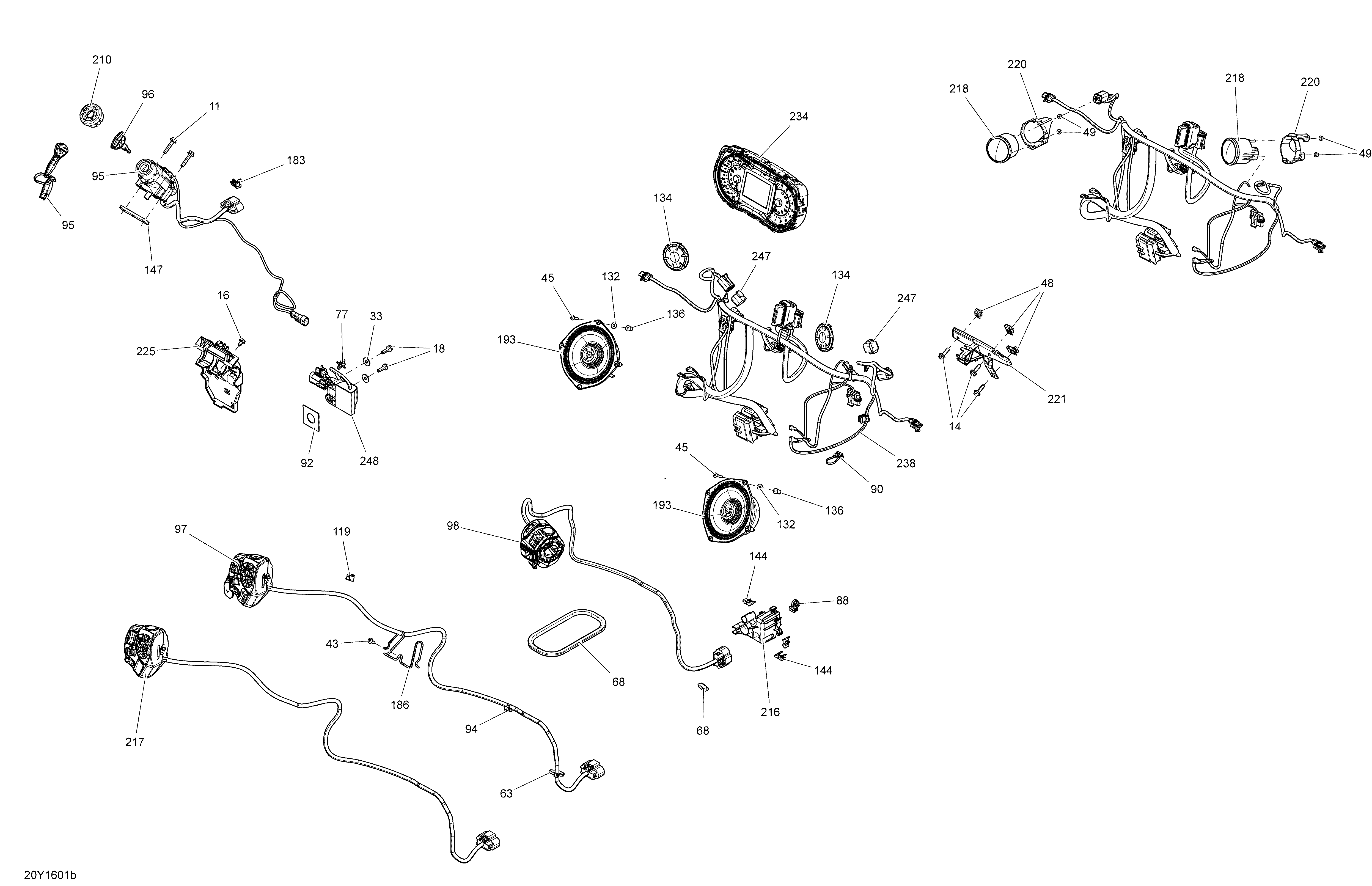

10- Electrical System - Accessories для BRP RT - 2016
-
№АртикулНазвание
-
11207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
18210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
33234062410 Flat Washer 6 mmFlat Washer 6 mm
-
43250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
45250000783 TORX-TRUSS M/S M4 X 20TORX-TRUSS M/S M4 X 20
-
48250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
49250100142 Hex. Serrated Flange NutHex. Serrated Flange Nut
-
63293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
68271001530 TrimTrim
-
77293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
88293750058 Locking Tie RapLocking Tie Rap
-
90293750063 Clip Tie-RapClip Tie-Rap
-
92293830091 Rubber BumperRubber Bumper
-
94414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
95710004277 Ignition SwitchIgnition Switch
-
96710004408 Ignition Key KitIgnition Key Kit
-
97710004589 Housing-Switch LH. SE6Housing-Switch LH. SE6
-
98710004583 Housing-Switch RHHousing-Switch RH
-
119414227300 ClipClip
-
132517225900 Flat WasherFlat Washer
-
134705003421 Gauge Cap. Package STDGauge Cap. Package STD
-
136705003635 Well Rubber Nut M4 X 0.7Well Rubber Nut M4 X 0.7
-
144710001222 LockLock
-
147710001365 Switch SupportSwitch Support
-
183710002896 Tie-Rap ClipTie-Rap Clip
-
186710003017 Grommet SpindleGrommet Spindle
-
193710003233 Front SpeakerFront Speaker
-
210710003594 Switch CoverSwitch Cover
-
216710004086 Connector SupportConnector Support
-
217710004164 LH Switch Housing. SM6LH Switch Housing. SM6
-
218710004208 Fuel Gauge. Except Package STDFuel Gauge. Except Package STD
-
218710004210 Temp Gauge. Except Package STDTemp Gauge. Except Package STD
-
220710004239 Housing Support. Except Package STDHousing Support. Except Package STD
-
221710004256 Connector SupportConnector Support
-
225710004308 Wire SupportWire Support
-
234710004723 Speed-ProgSpeed-Prog
-
234710004723 Speed-ProgSpeed-Prog
-
234a415129349 LensLens
-
238710004755 Dashboard Harness. See Dashboard HarnessDashboard Harness. See Dashboard Harness
-
247710004904 Connector Plug. Package STDConnector Plug. Package STD
-
248710004916 Dess ModuleDess Module
