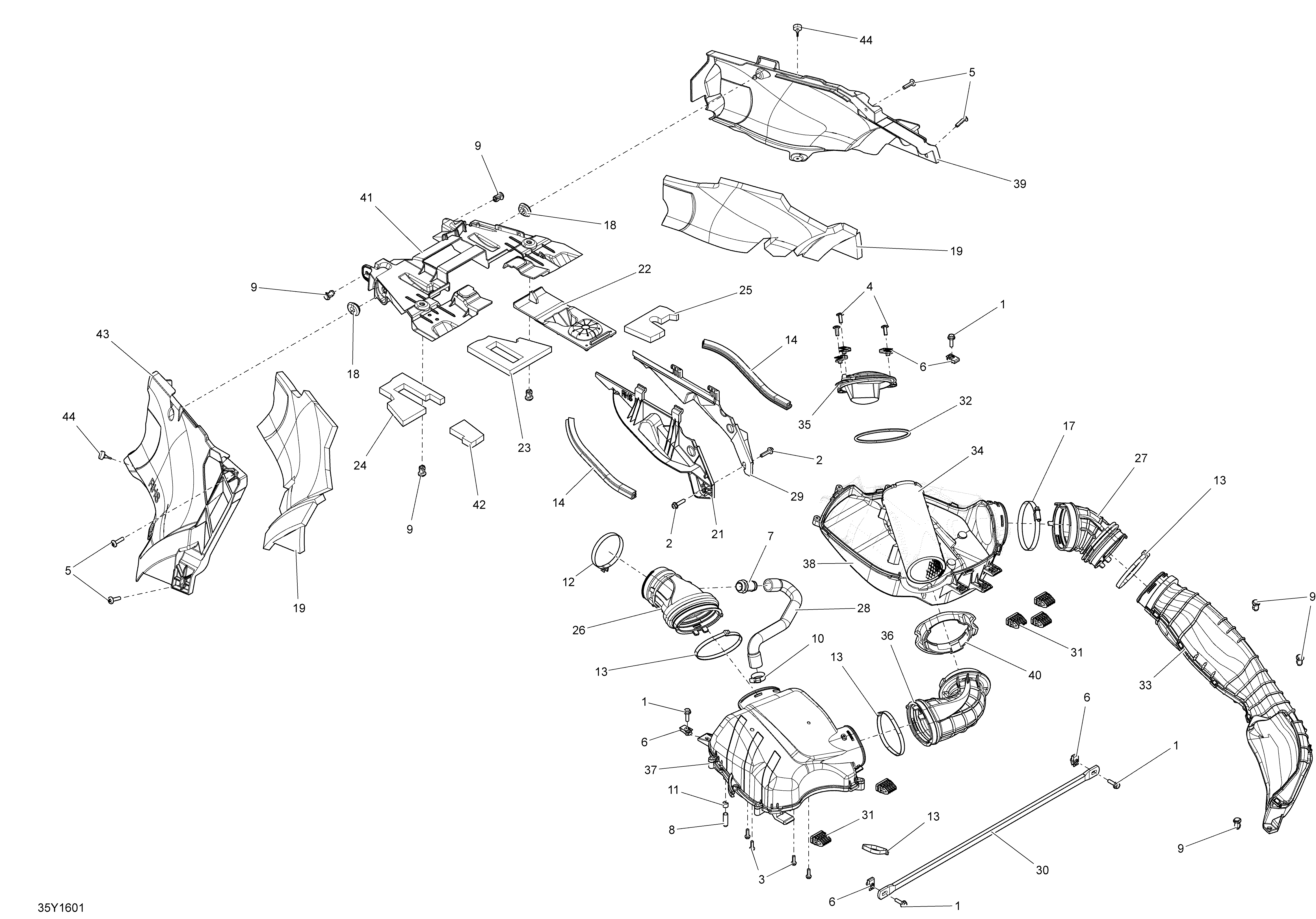

02- Air Intake для BRP RT - 2016
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
3243141680 Hex. Screw M4.8 X 1.8Hex. Screw M4.8 X 1.8
-
4250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
5250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7273000234 BreatherBreather
-
8293000105 Cap PlugCap Plug
-
9293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
10293650173 Tridon Gear ClampTridon Gear Clamp
-
11414554800 Spring ClampSpring Clamp
-
12508000346 Gemi ClampGemi Clamp
-
13509000165 Tie RapTie Rap
-
14219800142 TrimTrim
-
17514052924 Norma ClampNorma Clamp
-
18705000321 Oval WasherOval Washer
-
19707800339 RH Acoustic Shell FoamRH Acoustic Shell Foam
-
19707800338 LH Acoustic Shell FoamLH Acoustic Shell Foam
-
21707800340 RH Center Acoustic ShellRH Center Acoustic Shell
-
22707800343 Center BellowsCenter Bellows
-
23707800353 LH Rear FoamLH Rear Foam
-
24707800354 RH Rear FoamRH Rear Foam
-
25707800356 LH Front FoamLH Front Foam
-
26707800388 Air Intake AdaptorAir Intake Adaptor
-
27707800389 AdapterAdapter
-
28707800406 Formed HoseFormed Hose
-
29707800413 LH Acoustic ShellLH Acoustic Shell
-
30707800432 Link RodLink Rod
-
31707800452 Rubber StopperRubber Stopper
-
32707800455 O-ringO-ring
-
33707800477 Air Inlet ValveAir Inlet Valve
-
34707800483 Air FilterAir Filter
-
35707800484 CapCap
-
36707800485 Intake AdaptorIntake Adaptor
-
37707800488 RH Air Intake SilencerRH Air Intake Silencer
-
38707800489 LH Air Intake SilencerLH Air Intake Silencer
-
39707800508 LH Acoustic ShellLH Acoustic Shell
-
40707800525 RingRing
-
41707800562 Acoustic SupportAcoustic Support
-
42707800563 RH FoamRH Foam
-
43707800661 Acous Shell RHAcous Shell RH
-
44708000759 Rubber StopperRubber Stopper
