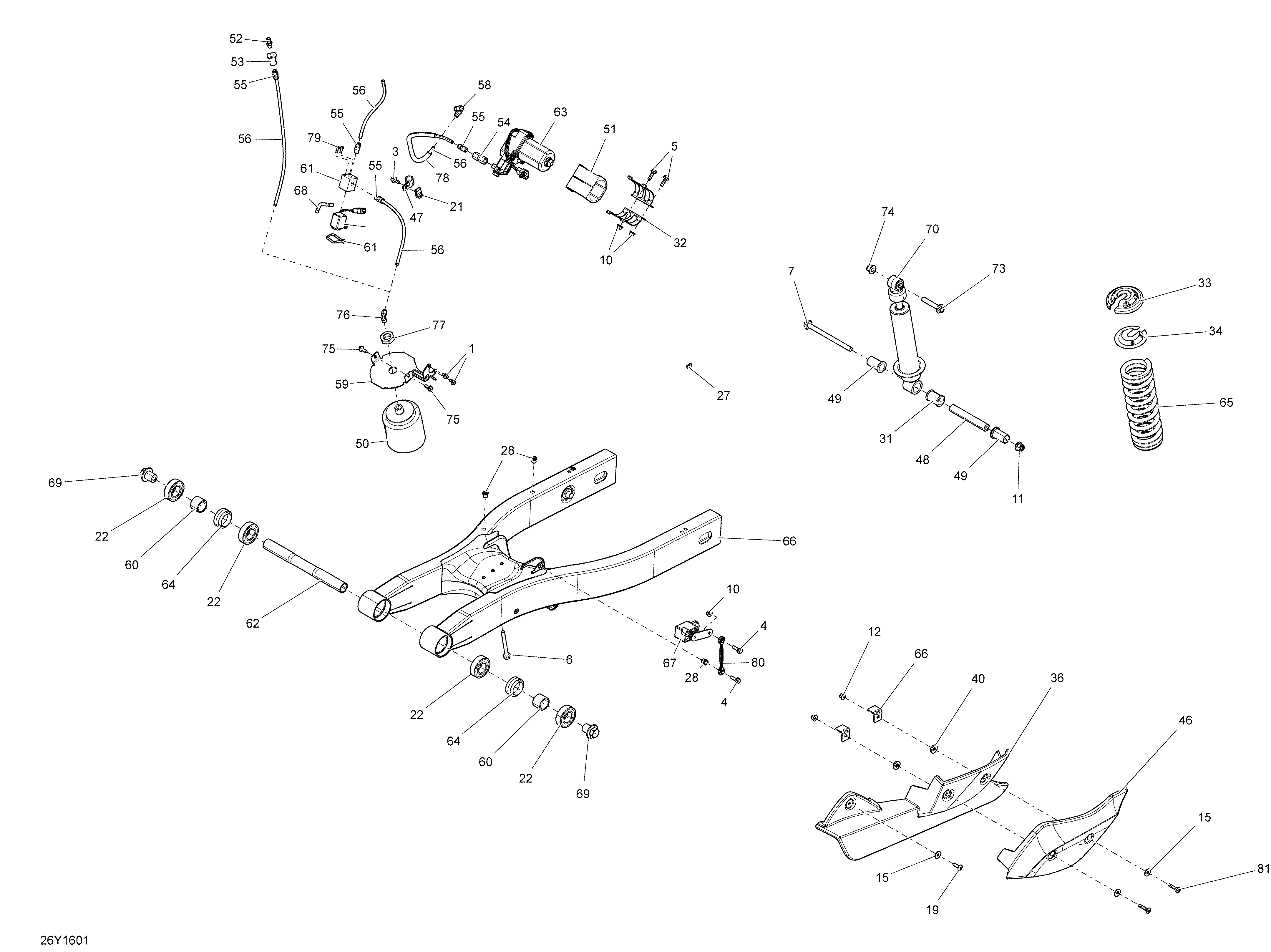

08- Suspension, Rear для BRP RT - 2016
-
№АртикулНазвание
-
1207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207687544 Hex. Flanged Screw M8 X 75Hex. Flanged Screw M8 X 75
-
7230604034 Flanged Hex. Screw M10 X 140Flanged Hex. Screw M10 X 140
-
10233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
11233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
15234062670 Flat Washer, StainlessFlat Washer, Stainless
-
19250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
21250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
22293350055 Ball BearingBall Bearing
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28293450275 InsertInsert
-
31503191609 Urethane CushionUrethane Cushion
-
32503193103 Compressor BracketCompressor Bracket
-
33503193781 Spring StopperSpring Stopper
-
34503193782 CapCap
-
36705002092 Lower Belt GuardLower Belt Guard
-
40705003696 Adhesive SpacerAdhesive Spacer
-
46705009446 Belt Guard MouldingBelt Guard Moulding
-
47705600232 Hose Retainer 13 mmHose Retainer 13 mm
-
48706000409 Shock Absorber ShaftShock Absorber Shaft
-
49706000410 SpacerSpacer
-
50219800175 Air Damper KitAir Damper Kit
-
51706000631 Compressor IsolatorCompressor Isolator
-
52706000678 Air ValveAir Valve
-
53706000735 Pneumatic ConnectorPneumatic Connector
-
54706000831 Ckeck ValveCkeck Valve
-
55706000869 ConnectorConnector
-
56415129507 Hose. Model without Package STDHose. Model without Package STD
-
56706000891 Hose. Model without Package STDHose. Model without Package STD
-
56706000893 Hose. Model with Package STDHose. Model with Package STD
-
58706000928 Elbow 90°Elbow 90°
-
59706001082 Support PlateSupport Plate
-
60706001152 SpacerSpacer
-
61706001175 Air Manifold Ass'yAir Manifold Ass'y
-
62706001182 Swing Arm AxleSwing Arm Axle
-
63706001349 CompressorCompressor
-
64706001366 SleeveSleeve
-
65706001542 Shock Absorber SpringShock Absorber Spring
-
66706001574 Swing ArmSwing Arm
-
67710001651 Position SensorPosition Sensor
-
68515175442 Tubing 6 mmTubing 6 mm
-
69706001579 Bolt M20Bolt M20
-
70706001552 Shock AbsorberShock Absorber
-
74233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
75210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
76706001018 Elbow 90°Elbow 90°
-
77250100119 Jam Nut M20Jam Nut M20
-
78515175442 Tubing 6 mmTubing 6 mm
-
79205041254 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
80706202505 Tie RodTie Rod
-
81250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
