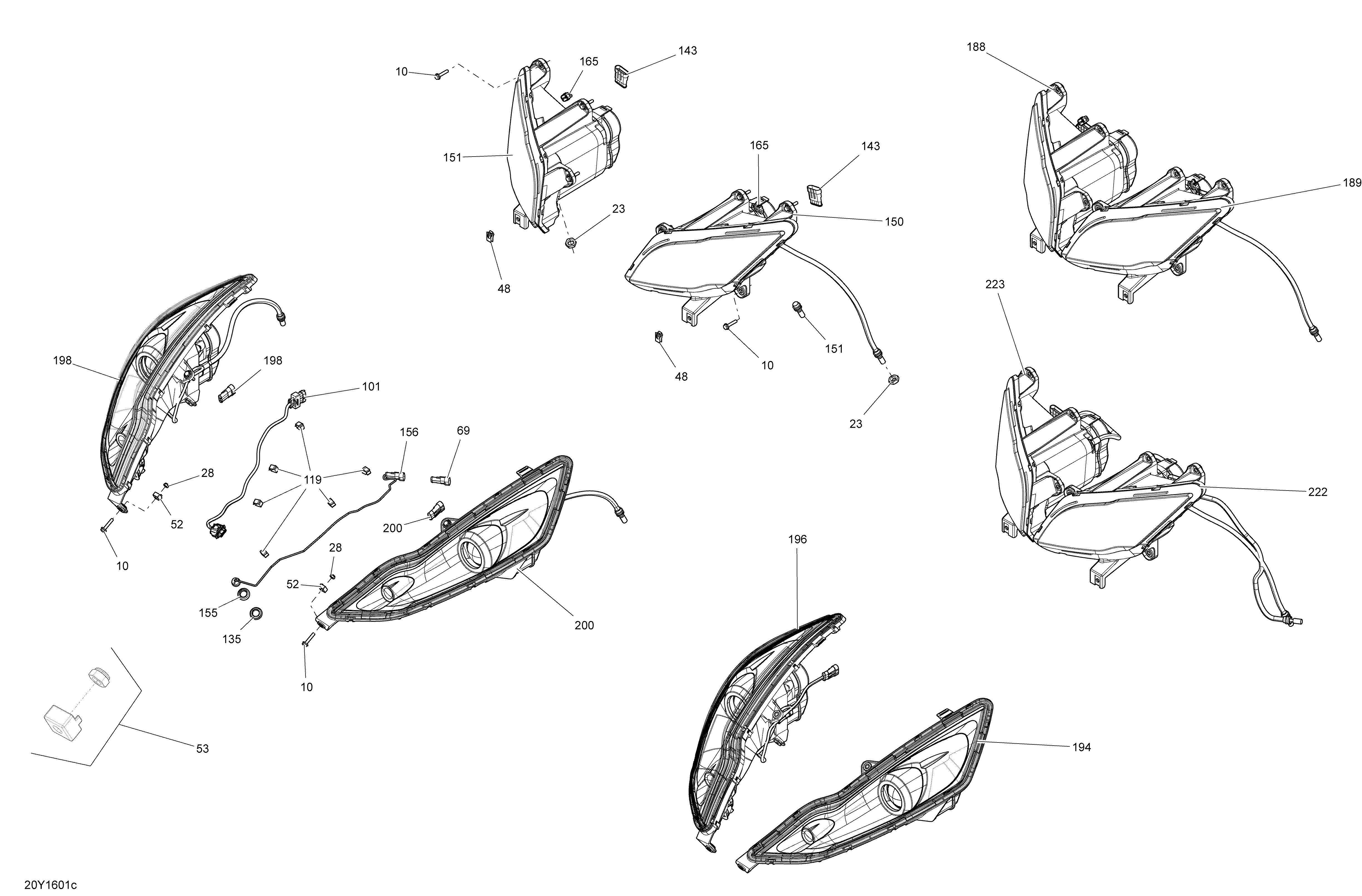

10- Electrical System - Headlamp для BRP RT - 2016
-
№АртикулНазвание
-
10207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
23232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
28232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
48250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
52269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
53269500725 Nut Housing Ass'yNut Housing Ass'y
-
69710004906 Connector Plug. Package STDConnector Plug. Package STD
-
101710004764 AAPTS HarnessAAPTS Harness
-
119414227300 ClipClip
-
135705003464 Cap. Package STDCap. Package STD
-
143710000779 HousingHousing
-
151710001384 LH High Beam Ass'y. Except North AmericaLH High Beam Ass'y. Except North America
-
151a219800140 BulbBulb
-
153710001386 RH High Beam Ass'y. Except North AmericaRH High Beam Ass'y. Except North America
-
153a219800140 BulbBulb
-
155710001533 Trunk Light. Except Package STDTrunk Light. Except Package STD
-
156710003096 Auxilary Light. Package S, Special, LTD North AmericaAuxilary Light. Package S, Special, LTD North America
-
165710002162 Packard Connector With PlugPackard Connector With Plug
-
188710003097 RH Bi-Halogen Beam Ass'y. Package S, Special, LTD North AmericaRH Bi-Halogen Beam Ass'y. Package S, Special, LTD North America
-
188710001537 RH Bi-Halogen Beam Ass'y. Package STD North AmericaRH Bi-Halogen Beam Ass'y. Package STD North America
-
188a219800136 BulbBulb
-
189710001536 LH Bi-Halogen Beam Ass'y. Package STD North AmericaLH Bi-Halogen Beam Ass'y. Package STD North America
-
189710003098 LH Bi-Halogen Beam Ass'y. Package S, Special, LTD North AmericaLH Bi-Halogen Beam Ass'y. Package S, Special, LTD North America
-
189a219800136 BulbBulb
-
194710003256 LH Fog Light Ass'y. Package S, Special, LTD North AmericaLH Fog Light Ass'y. Package S, Special, LTD North America
-
194a219800149 BulbBulb
-
196710003257 RH Fog Light Ass'y. Package S, Special, LTD North AmericaRH Fog Light Ass'y. Package S, Special, LTD North America
-
196a219800149 BulbBulb
-
198710003258 RH Low Beam Ass'y. Europe, Australian, Japan ModelRH Low Beam Ass'y. Europe, Australian, Japan Model
-
198a219800136 BulbBulb
-
200710003259 LH Low Beam Ass'y. Europe, Australian, Japan ModelLH Low Beam Ass'y. Europe, Australian, Japan Model
-
200a219800136 BulbBulb
-
222710004261 LH Headlamp Ass'y. Japan ModelLH Headlamp Ass'y. Japan Model
-
222a219800140 BulbBulb
-
223710004262 RH Headlamp Ass'y. Japan ModelRH Headlamp Ass'y. Japan Model
-
223A219800140 BulbBulb
