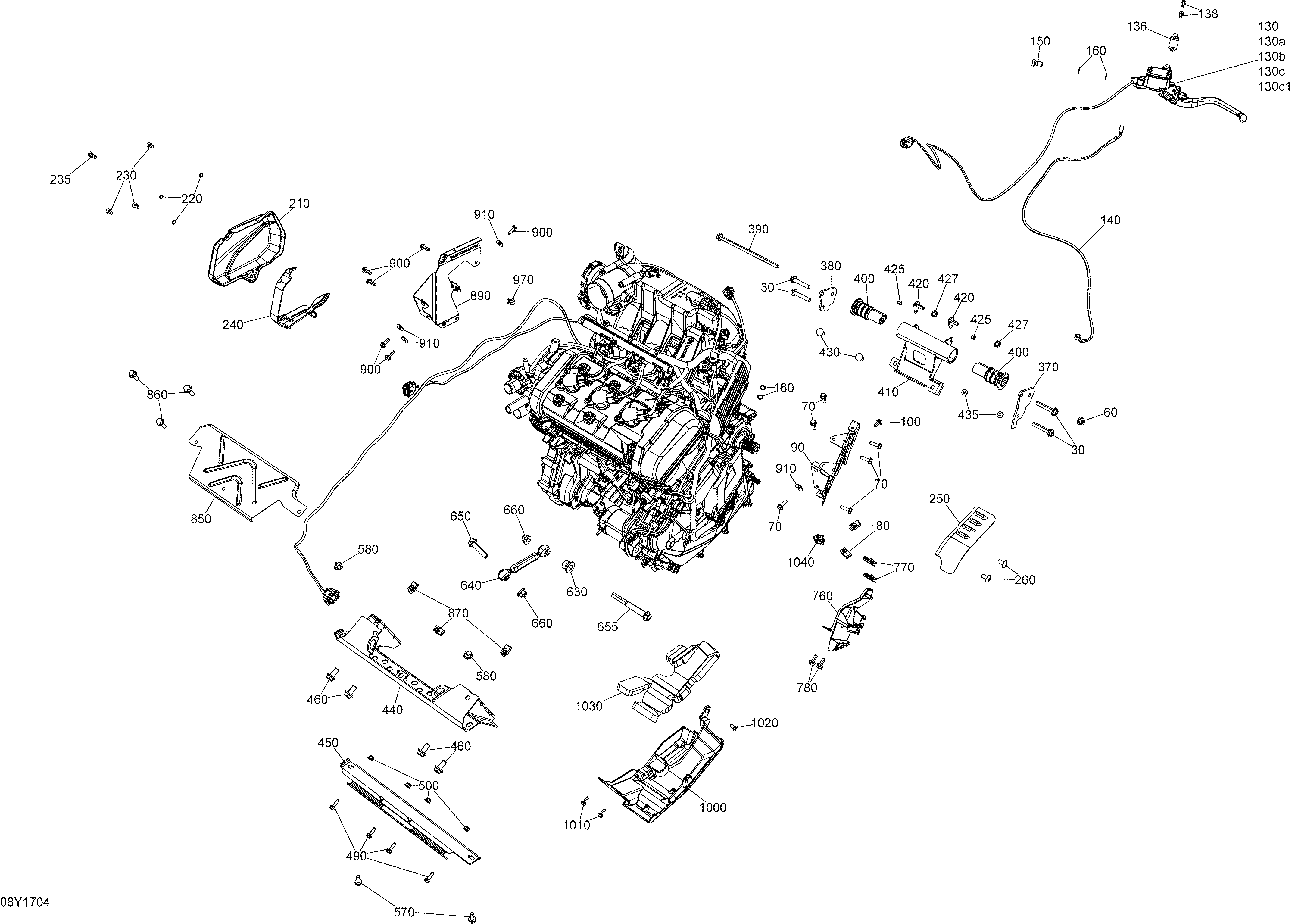

01- Engine - All Models для BRP F3 - 2017
-
№АртикулНазвание
-
30207505544 Hex. Flanged Screw M10 X 55, Scotch GripHex. Flanged Screw M10 X 55, Scotch Grip
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
70250000768 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
80250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
90707001529 ECM SupportECM Support
-
100207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
130>130c1707001489 Clutch Lever Ass'y. SM6. Includes 130 to 130c1Clutch Lever Ass'y. SM6. Includes 130 to 130c1
-
130a719000049 Clamps KitClamps Kit
-
130b219800336 MicroswitchMicroswitch
-
130c>130c1219800096 Cap Set. Includes 130c to 130c1Cap Set. Includes 130c to 130c1
-
130c1415129356 Screw M4 X 20Screw M4 X 20
-
136719000049 Clamps Kit. SM6Clamps Kit. SM6
-
138250000433 Torx Screw M6 X 20. SM6Torx Screw M6 X 20. SM6
-
140707001490 Hose. SM6Hose. SM6
-
150507032551 Banjo Bolt. SM6Banjo Bolt. SM6
-
160414920600 Washer. SM6Washer. SM6
-
210707601741 Cover Paint. SE6Cover Paint. SE6
-
220250200160 Flate Washer M8, Aluminum. SE6Flate Washer M8, Aluminum. SE6
-
230211000127 Socket Head Screw M8 X 10, Scotch Grip. SE6Socket Head Screw M8 X 10, Scotch Grip. SE6
-
235205582060 Socket Head Screw M8 X 20, Scotch Grip. SE6Socket Head Screw M8 X 20, Scotch Grip. SE6
-
240707001628 Wire Cover. SE6Wire Cover. SE6
-
250707001660 Sprocket CoverSprocket Cover
-
260250000746 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
370707001293 LH Engine SupportLH Engine Support
-
380707001294 RH Engine SupportRH Engine Support
-
390250000507 Flanged Hex Screw M10 X 220Flanged Hex Screw M10 X 220
-
400707000973 Rubber MountRubber Mount
-
410707000877 Frame ExtensionFrame Extension
-
420707001292 AttachAttach
-
425390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
427233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
430207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
435233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
440707001561 Front Engine SupportFront Engine Support
-
450707000876 Rubber MountRubber Mount
-
460207502044 Flanged Hex Screw M10 X 20Flanged Hex Screw M10 X 20
-
490207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
500233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
570207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
580233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
630707001736 SpacerSpacer
-
640707001918 Connecting RodConnecting Rod
-
650207504546 Hex. Flanged Screw M10 X 45 Scotch GripHex. Flanged Screw M10 X 45 Scotch Grip
-
655250000702 Hex. Flanged Screw M10 X 100Hex. Flanged Screw M10 X 100
-
660233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
760707001627 Connector SupporConnector Suppor
-
770250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
780207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
850707601057 Upper Heat DeflectorUpper Heat Deflector
-
860207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
870250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
890707001530 TCM SupportTCM Support
-
900250000768 Hex. Flanged Screw M6 X 20. SE6Hex. Flanged Screw M6 X 20. SE6
-
900250000768 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
910234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
970414420700 Spring Clamp. SM6Spring Clamp. SM6
-
1000707001930 Skid PlateSkid Plate
-
1010207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
1020235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
1030707001657 Acoustic FoamAcoustic Foam
-
1040709000633 Harness SupportHarness Support
