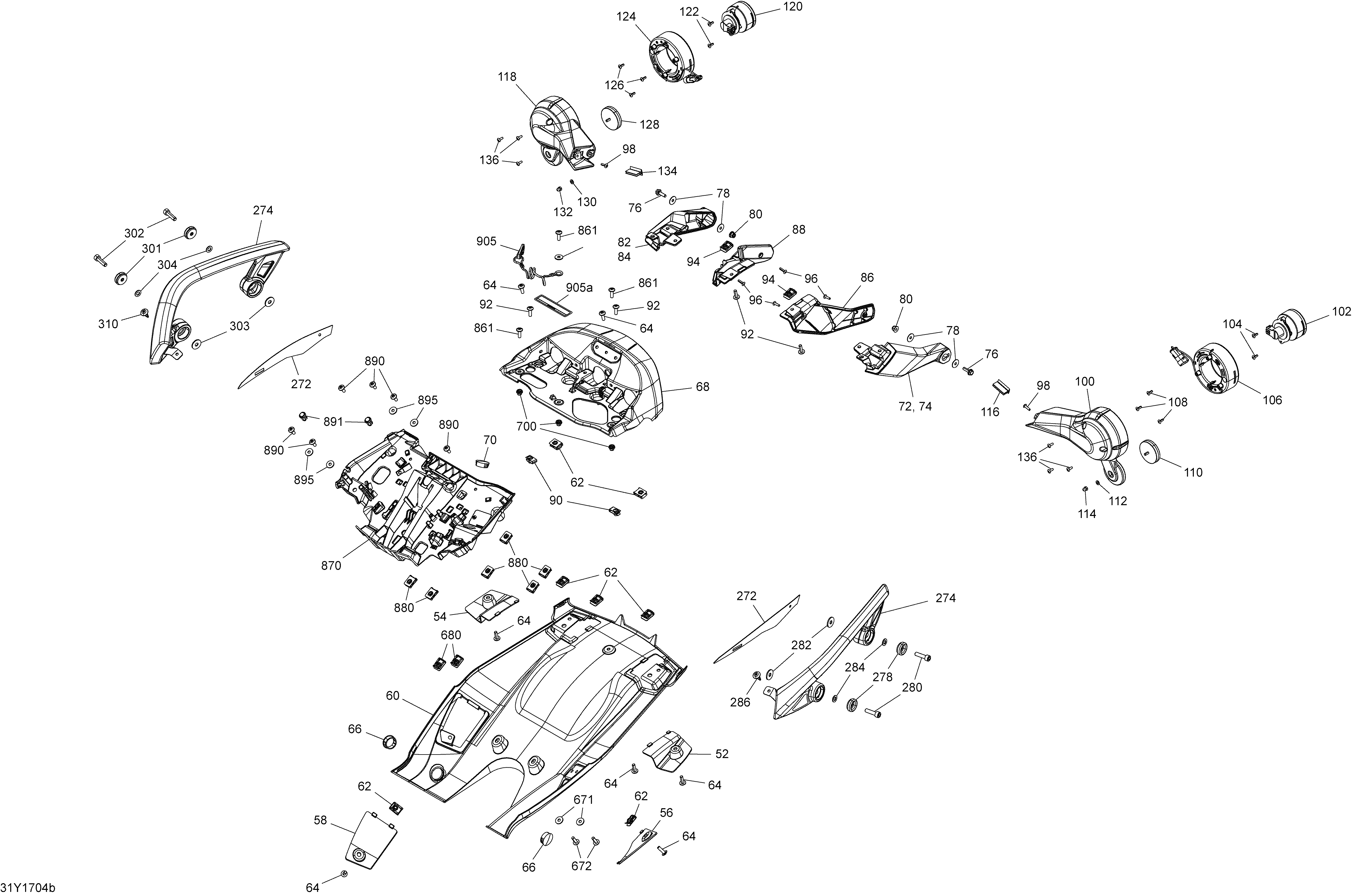

09- Body And Accessories - Luggages - Package STD-S для BRP F3 - 2017
-
№АртикулНазвание
-
52708301449 LH Rear Cap. North AmericaLH Rear Cap. North America
-
54708301450 RH Rear Cap. North AmericaRH Rear Cap. North America
-
56708301513 LH Front CapLH Front Cap
-
58708301514 RH Front CapRH Front Cap
-
60708001415 Under Tail CoverUnder Tail Cover
-
62250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
64250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
66414916600 Nylon CapNylon Cap
-
68708001492 Rear SupportRear Support
-
70414916600 Nylon CapNylon Cap
-
72708001622 LH Support. Except North America, JapanLH Support. Except North America, Japan
-
74708002222 Lh Flasher Support. JapanLh Flasher Support. Japan
-
76207662044 Hex. Flanged Screw M6 X 20. JapanHex. Flanged Screw M6 X 20. Japan
-
78224060201 Flat Washer. JapanFlat Washer. Japan
-
80233261414 Hex. Flanged Elastic Nut M6. JapanHex. Flanged Elastic Nut M6. Japan
-
82708001623 RH Support. Except North America, JapanRH Support. Except North America, Japan
-
84708002223 Rh Flasher Support. JapanRh Flasher Support. Japan
-
86708001624 LH Support Cap. Except North AmericaLH Support Cap. Except North America
-
88708001625 RH Support Cap. Except North AmericaRH Support Cap. Except North America
-
90250100113 Panel Nut, M6 X 1.0. Except North AmericaPanel Nut, M6 X 1.0. Except North America
-
92250000446 Torx Screw M6 X 20, Scotch Grip. Except North AmericaTorx Screw M6 X 20, Scotch Grip. Except North America
-
94250100169 Panel Nut M6 X 1. Except North AmericaPanel Nut M6 X 1. Except North America
-
96250000759 Torx-Truss Pt K40 X 16. Except North AmericaTorx-Truss Pt K40 X 16. Except North America
-
98250000287 Flanged Torx Screw K40 X 16. JapanFlanged Torx Screw K40 X 16. Japan
-
100708002232 LH Housing Ass'yLH Housing Ass'y
-
102710004057 Rear FlasherRear Flasher
-
104250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
106710004056 Rear LightRear Light
-
108250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
110705011221 Red ReflectorRed Reflector
-
112234051670 Flat Washer M5Flat Washer M5
-
114250100152 Cap Nut M5Cap Nut M5
-
116293250047 Neoprene SealNeoprene Seal
-
118708002233 RH Housing Ass'yRH Housing Ass'y
-
120710004057 Rear FlasherRear Flasher
-
122250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
124710004056 Rear LightRear Light
-
126250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
128705011221 Red ReflectorRed Reflector
-
130234051670 Flat Washer M5Flat Washer M5
-
132250100152 Cap Nut M5Cap Nut M5
-
134293250047 Neoprene SealNeoprene Seal
-
136250000577 Torx Truss K40 X 12. JapanTorx Truss K40 X 12. Japan
-
272704905469 Adhesif Double FaceAdhesif Double Face
-
274708001413 LH Passenger HandleLH Passenger Handle
-
274708001414 RH Passenger HandleRH Passenger Handle
-
278708302048 BushingBushing
-
280250000823 Socket Head Screw M8 X 30, Scotch GripSocket Head Screw M8 X 30, Scotch Grip
-
282234082410 Flat Washer 8 mmFlat Washer 8 mm
-
284234081670 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
286414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
301708302048 BushingBushing
-
302250000823 Socket Head Screw M8 X 30, Scotch GripSocket Head Screw M8 X 30, Scotch Grip
-
303234082410 Flat Washer 8 mmFlat Washer 8 mm
-
304234081670 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
310414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
671234062670 Flat Washer, StainlessFlat Washer, Stainless
-
672250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
680250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
700293450232 InsertInsert
-
861250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
870708301698 Cargo Rear SupportCargo Rear Support
-
880250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
890250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
891293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
895250200164 Flat washer M6Flat washer M6
-
905>905a708001910 Lanyard. Includes 905 to 905aLanyard. Includes 905 to 905a
-
905a704905127 Cord DecalCord Decal
