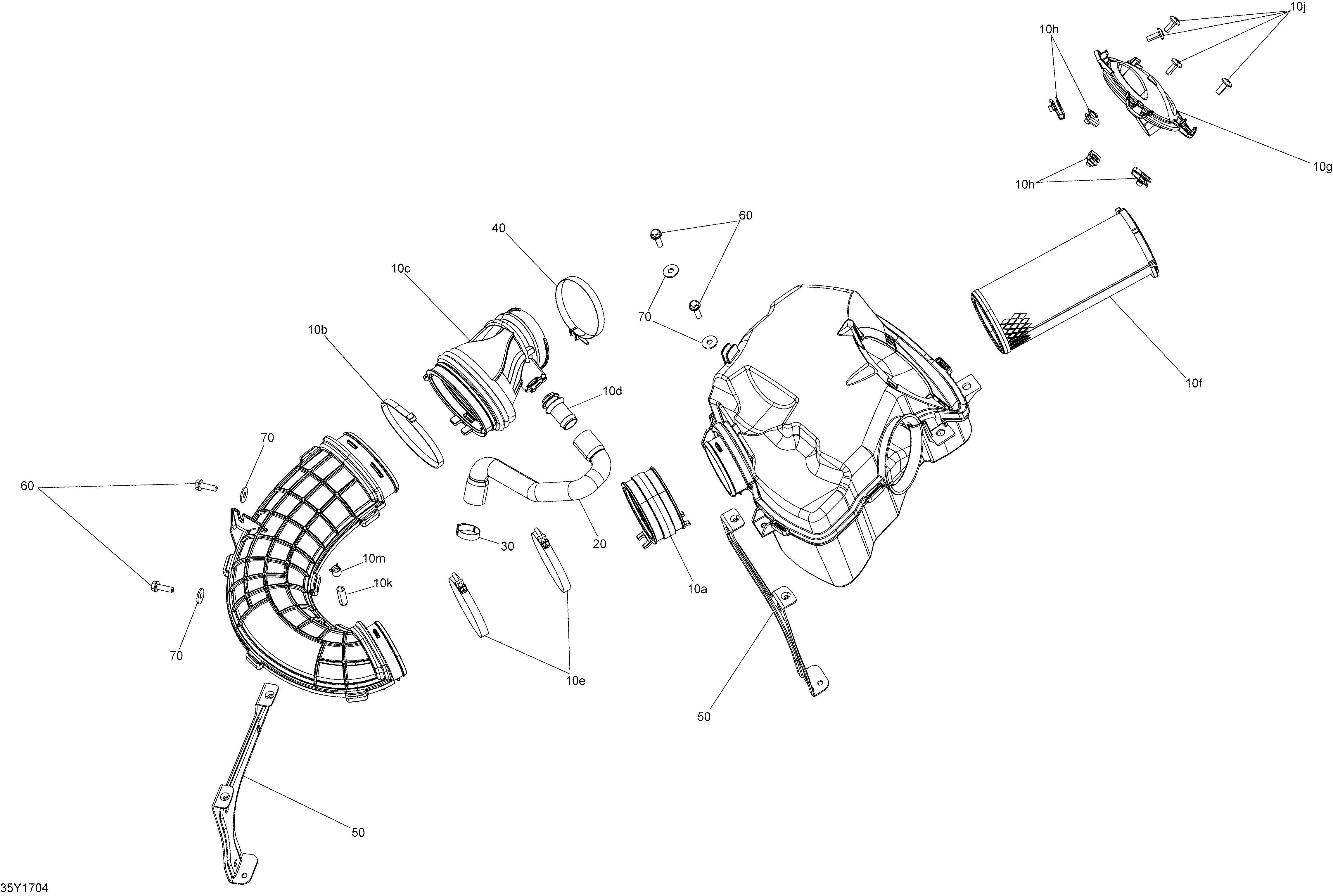

02- Air Intake - All Models для BRP F3 - 2017
-
№АртикулНазвание
-
10>10m707800584 Air Intake. Includes 10 to 10mAir Intake. Includes 10 to 10m
-
10a707800590 Intake AdaptorIntake Adaptor
-
10b509000165 Tie RapTie Rap
-
10c707800388 Air Intake AdaptorAir Intake Adaptor
-
10d273000234 BreatherBreather
-
10e508000150 Gemi ClampGemi Clamp
-
10f707800483 Air FilterAir Filter
-
10g707800596 CoverCover
-
10h250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10j250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
10k293000105 Cap PlugCap Plug
-
10m414554800 Spring ClampSpring Clamp
-
20707800406 Formed HoseFormed Hose
-
30509000442 Oetiker Gear ClampOetiker Gear Clamp
-
40508000346 Gemi ClampGemi Clamp
-
50707800602 Air Intake BracketAir Intake Bracket
-
60250000768 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
70234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
