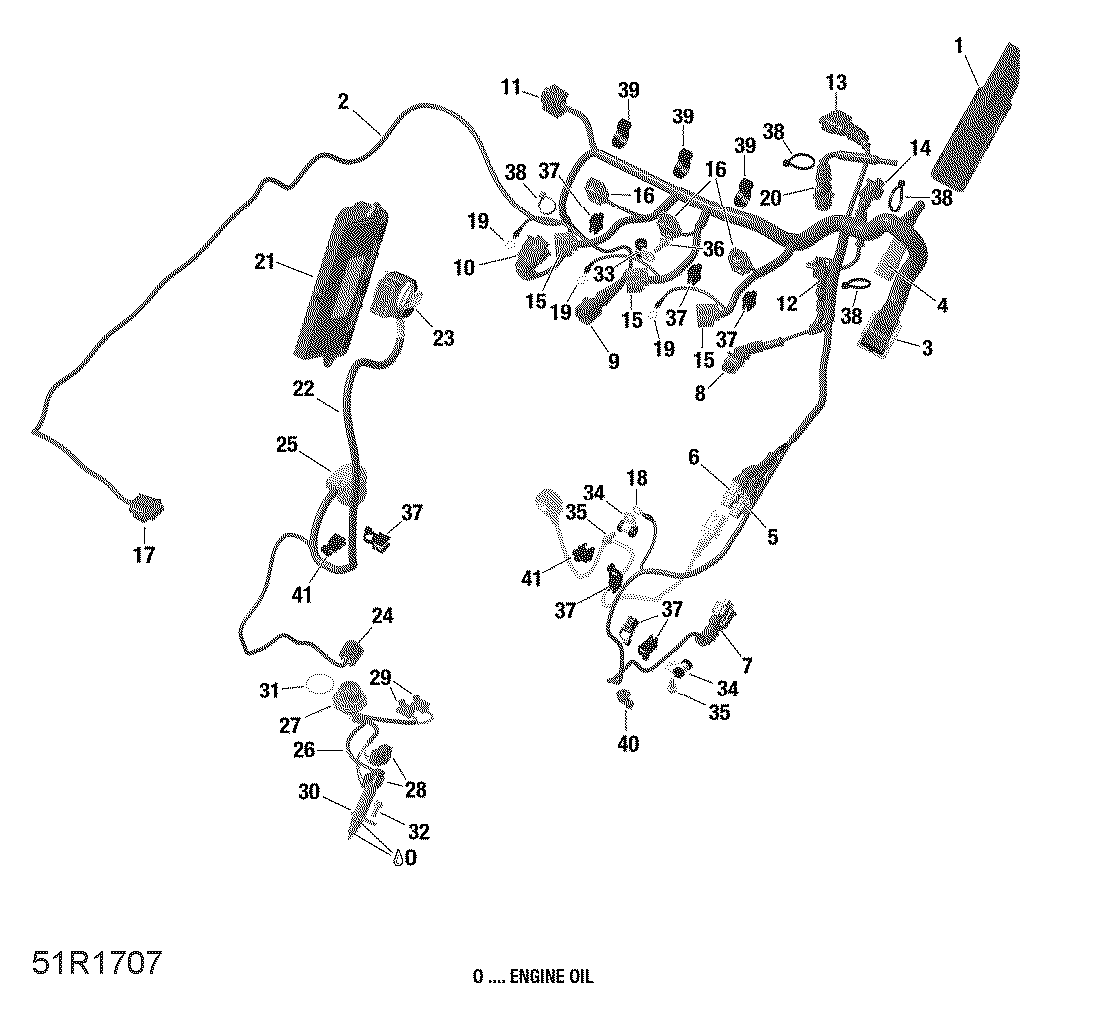

10- Engine Harness and Electronic Module - SE6 для BRP F3 - 2017
-
№АртикулНазвание
-
1420666716 ECM, Engine Controle Module. Built Before Aug 1rst 2016. North America VersionECM, Engine Controle Module. Built Before Aug 1rst 2016. North America Version
-
1420666726 ECM, Engine Controle Module. Built Before Aug 1rst 2016 Except North America VersionECM, Engine Controle Module. Built Before Aug 1rst 2016 Except North America Version
-
1420464236 ECM, Engine Controle Module. Built Aug 1rst 2016 And Up, North America VersionECM, Engine Controle Module. Built Aug 1rst 2016 And Up, North America Version
-
1420666289 ECM, Engine Controle Module. Built Aug 1rst 2016 And Up, Except North America VersionECM, Engine Controle Module. Built Aug 1rst 2016 And Up, Except North America Version
-
2>20420266786 Engine Wiring HarnessEngine Wiring Harness
-
20420666780 CSV Blind PlugCSV Blind Plug
-
21420266879 Transmission Module. Built Before Aug 1rst 2016Transmission Module. Built Before Aug 1rst 2016
-
21420266879 Transmission Module. Built Aug 1rst 2016 And Up, North America VersionTransmission Module. Built Aug 1rst 2016 And Up, North America Version
-
21420666756 Transmission Module. Built Aug 1rst 2016 And Up, Except North America VersionTransmission Module. Built Aug 1rst 2016 And Up, Except North America Version
-
22>25420266884 Transmission Wiring HarnessTransmission Wiring Harness
-
26>31420264101 Wiring HarnessWiring Harness
-
31420450480 O-RingO-Ring
-
32420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
33420853412 Cable clipCable clip
-
34420853414 ClampClamp
-
35420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
36420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
37420951650 Cable ClampCable Clamp
-
38420866714 Tie RapTie Rap
-
39420866716 Tie-RapTie-Rap
-
40420951341 Tie-Rap With MountTie-Rap With Mount
-
41420651810 Tie-Rap With MountTie-Rap With Mount
