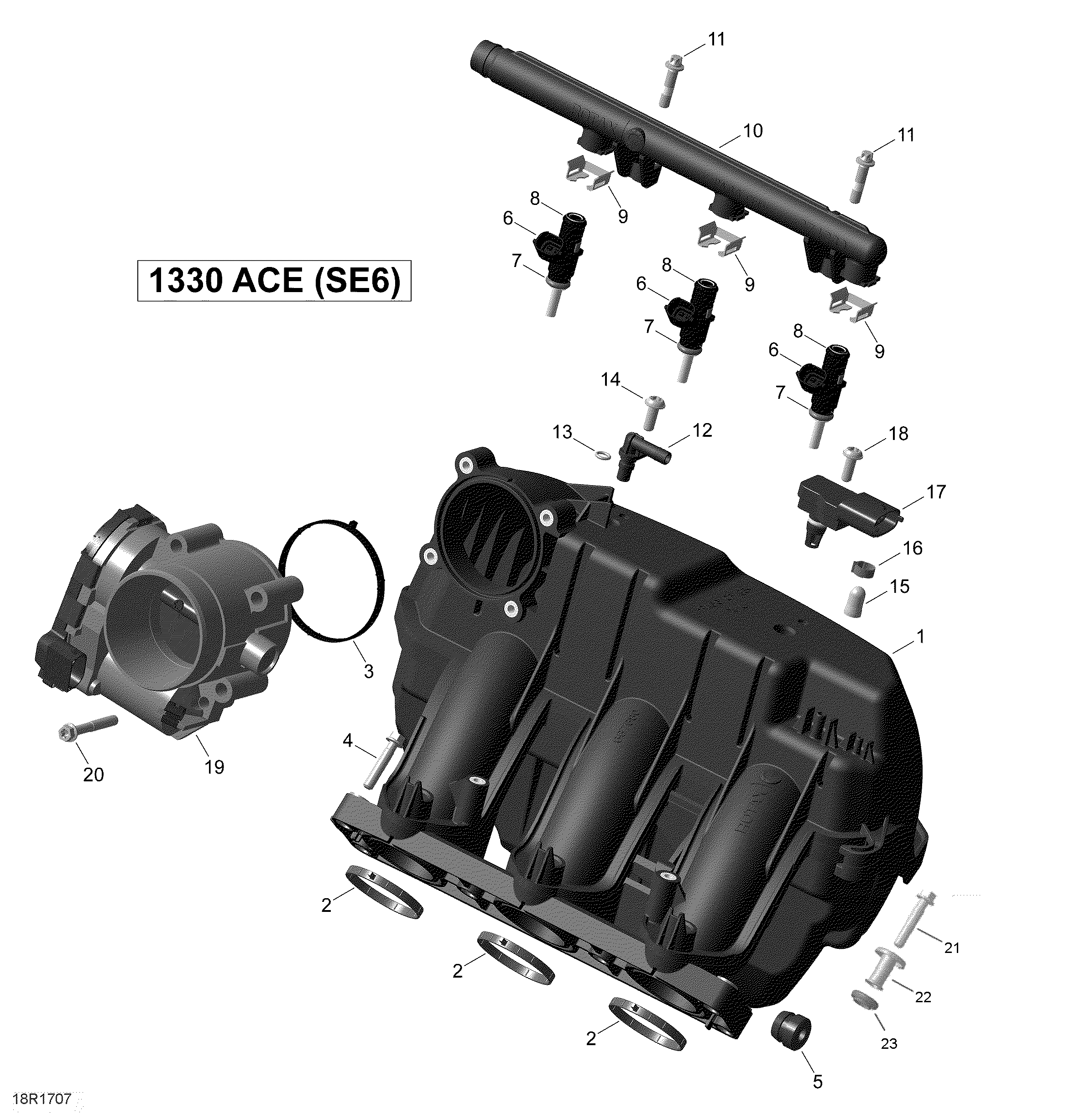

02- Air Intake Manifold and Throttle Body - All Models для BRP F3 - 2017
-
№АртикулНазвание
-
1420667687 Air Intake Manifold Ass'y. Includes 1 to 3Air Intake Manifold Ass'y. Includes 1 to 3
-
2420431667 Gasket. One Piece GasketGasket. One Piece Gasket
-
3420431901 GasketGasket
-
4420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
5420201170 IsolatorIsolator
-
6420274216 Fuel Injector. Includes 6 to 8Fuel Injector. Includes 6 to 8
-
7420431890 O-RingO-Ring
-
8420631220 O-RingO-Ring
-
9420853030 ClipClip
-
10420274230 Fuel RailFuel Rail
-
11420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
12420201191 FittingFitting
-
13420230530 O-RingO-Ring
-
14420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
15420960770 CapCap
-
16420853653 ClampClamp
-
17707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
18420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
19420892595 Throttle BodyThrottle Body
-
20420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
21420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
22>23420629175 Distance Sleeve Ass'yDistance Sleeve Ass'y
