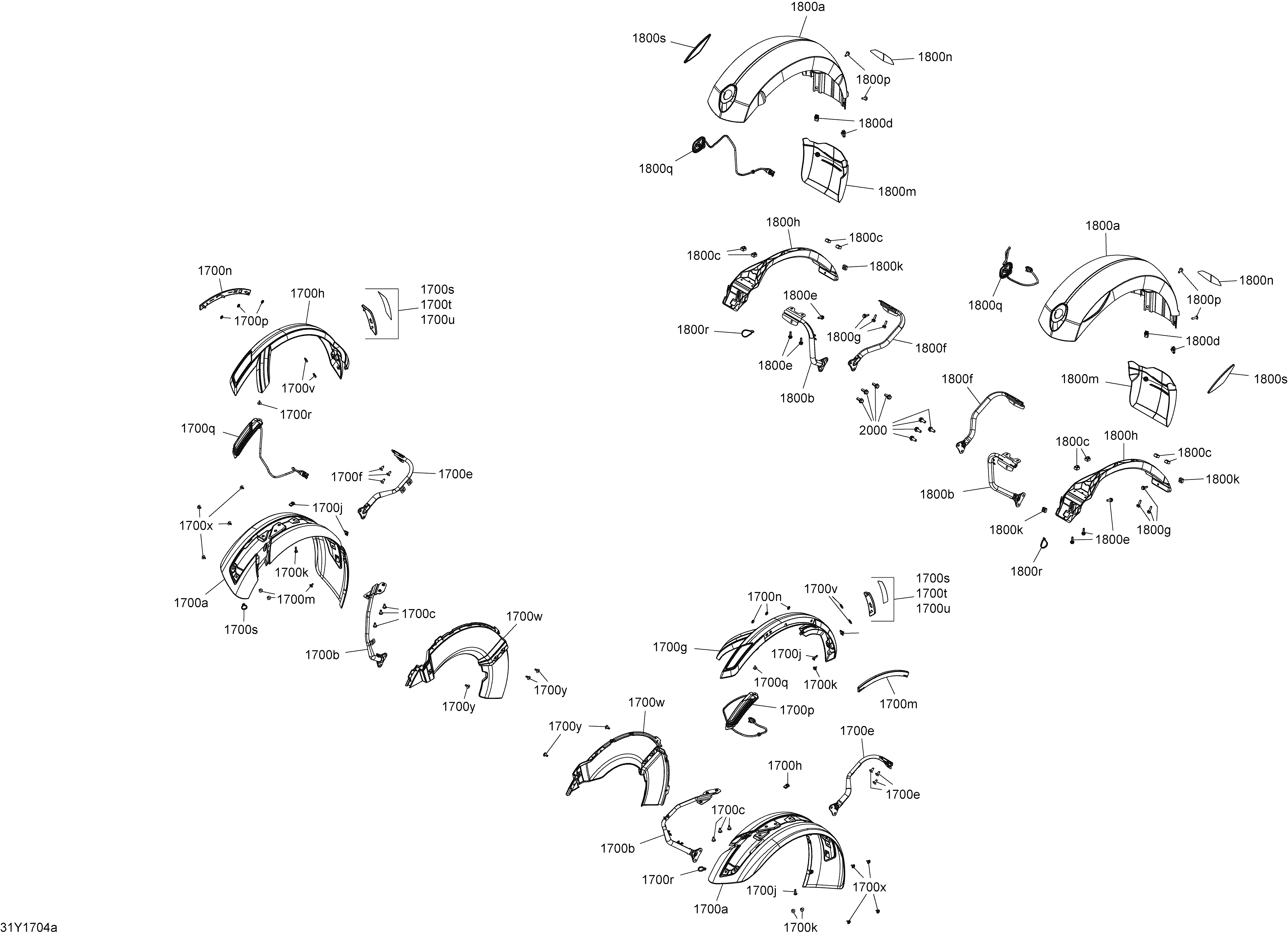

09- Body And Accessories - Front Fender - All Models для BRP F3 - 2017
-
№АртикулНазвание
-
1700a705006500 Metallic Magnesium Front Fender LH. Package T MagnesiumMetallic Magnesium Front Fender LH. Package T Magnesium
-
1700a705006500 Metallic Magnesium Front Fender LH. Package LTD MagnesiumMetallic Magnesium Front Fender LH. Package LTD Magnesium
-
1700a705008021 Vegas White LH Front Fender. WhiteVegas White LH Front Fender. White
-
1700a705006908 Metallic Black Front Fender LH. Package T Monolith BlackMetallic Black Front Fender LH. Package T Monolith Black
-
1700a705006908 Metallic Black Front Fender LH. Package SMetallic Black Front Fender LH. Package S
-
1700a705006908 Metallic Black Front Fender LH. Package LTD Monolith BlackMetallic Black Front Fender LH. Package LTD Monolith Black
-
1700a705008740 Red Front Fender LH. Red. Manufactured Date Before Aug 1rst 2016Red Front Fender LH. Red. Manufactured Date Before Aug 1rst 2016
-
1700a705012642 Red Front Fender LH. Red. Manufactured Date Aug 1rst 2016 And UpRed Front Fender LH. Red. Manufactured Date Aug 1rst 2016 And Up
-
1700a705006501 Metallic Magnesium Front Fender RH. Package LTD MagnesiumMetallic Magnesium Front Fender RH. Package LTD Magnesium
-
1700a705006501 Metallic Magnesium Front Fender RH. Package T MagnesiumMetallic Magnesium Front Fender RH. Package T Magnesium
-
1700a705006510 Vegas White RH Front Fender. WhiteVegas White RH Front Fender. White
-
1700a705006909 Metallic Black Front Fender RH. Package SMetallic Black Front Fender RH. Package S
-
1700a705006909 Metallic Black Front Fender RH. Package LTD Monolith BlackMetallic Black Front Fender RH. Package LTD Monolith Black
-
1700a705006909 Metallic Black Front Fender RH. Package T Monolith BlackMetallic Black Front Fender RH. Package T Monolith Black
-
1700a705008741 Red Front Fender RH. Red. Manufactured Date Before Aug 1rst 2016Red Front Fender RH. Red. Manufactured Date Before Aug 1rst 2016
-
1700a705012643 Red Front Fender RH. Red. Manufactured Date Aug 1rst 2016 And UpRed Front Fender RH. Red. Manufactured Date Aug 1rst 2016 And Up
-
1700b705011297 LH Front Support. Except STDLH Front Support. Except STD
-
1700b705011301 RH Front Support. Except STDRH Front Support. Except STD
-
1700c210261650 Hex. Flanged Screw M6 X 16. Except STDHex. Flanged Screw M6 X 16. Except STD
-
1700c210261650 Hex. Flanged Screw M6 X 16. Except STDHex. Flanged Screw M6 X 16. Except STD
-
1700d250200164 Flat washer M6. Except STDFlat washer M6. Except STD
-
1700d250200164 Flat washer M6. Except STDFlat washer M6. Except STD
-
1700e705011298 LH Rear Support. Except STDLH Rear Support. Except STD
-
1700e210261650 Hex. Flanged Screw M6 X 16. Except STDHex. Flanged Screw M6 X 16. Except STD
-
1700e705011302 RH Rear Support. Except STDRH Rear Support. Except STD
-
1700f250200164 Flat washer M6. Except STDFlat washer M6. Except STD
-
1700f210261650 Hex. Flanged Screw M6 X 16. Except STDHex. Flanged Screw M6 X 16. Except STD
-
1700g705006513 Metal. Magnesium Frt Fender Moulding LH. Package T MagnesiumMetal. Magnesium Frt Fender Moulding LH. Package T Magnesium
-
1700g705006513 Metal. Magnesium Frt Fender Moulding LH. Package LTD MagnesiumMetal. Magnesium Frt Fender Moulding LH. Package LTD Magnesium
-
1700g705006520 White Front Fender Moulding LH. WhiteWhite Front Fender Moulding LH. White
-
1700g705006912 Carbone Black Front Fender Moulding LH. Package SCarbone Black Front Fender Moulding LH. Package S
-
1700g705008742 Red Front Fender Moulding LH. Red. Manufactured Date Before Aug 1rst 2016Red Front Fender Moulding LH. Red. Manufactured Date Before Aug 1rst 2016
-
1700g705012641 Red Front Fender Moulding LH. Red. Manufactured Date Aug 1rst 2016 And UpRed Front Fender Moulding LH. Red. Manufactured Date Aug 1rst 2016 And Up
-
1700g705008746 Steel Black LH Front Fender Moulding. Package LTD Monolith BlackSteel Black LH Front Fender Moulding. Package LTD Monolith Black
-
1700g705008746 Steel Black LH Front Fender Moulding. Package T Monolith BlackSteel Black LH Front Fender Moulding. Package T Monolith Black
-
1700g250200164 Flat washer M6. Except STDFlat washer M6. Except STD
-
1700h250100176 Panel Nut M5 X 0.8. Except STDPanel Nut M5 X 0.8. Except STD
-
1700h705006514 Metal. Magnesium Frt Fender Moulding RH. Package LTD MagnesiumMetal. Magnesium Frt Fender Moulding RH. Package LTD Magnesium
-
1700h705006514 Metal. Magnesium Frt Fender Moulding RH. Package T MagnesiumMetal. Magnesium Frt Fender Moulding RH. Package T Magnesium
-
1700h705006521 White Front Fender Moulding RH. WhiteWhite Front Fender Moulding RH. White
-
1700h705006913 Carbone Black Front Fender Moulding RH. Package SCarbone Black Front Fender Moulding RH. Package S
-
1700h705008743 Red Front Fender Moulding RH. Red. Manufactured Date Before Aug 1rst 2016Red Front Fender Moulding RH. Red. Manufactured Date Before Aug 1rst 2016
-
1700h705012644 Red Front Fender Moulding RH. Red. Manufactured Date Aug 1rst 2016 And UpRed Front Fender Moulding RH. Red. Manufactured Date Aug 1rst 2016 And Up
-
1700h705008747 Steel Black RH Front Fender Moulding. Package LTD Monolith BlackSteel Black RH Front Fender Moulding. Package LTD Monolith Black
-
1700h705008747 Steel Black RH Front Fender Moulding. Package T Monolith BlackSteel Black RH Front Fender Moulding. Package T Monolith Black
-
1700j250000724 Torx Screw M5 X 20. Except STDTorx Screw M5 X 20. Except STD
-
1700j250100176 Panel Nut M5 X 0.8. Except STDPanel Nut M5 X 0.8. Except STD
-
1700k250000805 Plastite Screw M4 X 10. Except STDPlastite Screw M4 X 10. Except STD
-
1700k250000724 Torx Screw M5 X 20. Except STDTorx Screw M5 X 20. Except STD
-
1700m705008661 Yellow LH Reflector. Except STDYellow LH Reflector. Except STD
-
1700m250000805 Plastite Screw M4 X 10. Except STDPlastite Screw M4 X 10. Except STD
-
1700n250100163 Pressure Nut. Except STDPressure Nut. Except STD
-
1700n705008662 Yellow RH Reflector. Except STDYellow RH Reflector. Except STD
-
1700p710004032 LH Position Light. Except STDLH Position Light. Except STD
-
1700p250100163 Pressure Nut. Except STDPressure Nut. Except STD
-
1700q250000805 Plastite Screw M4 X 10. Except STDPlastite Screw M4 X 10. Except STD
-
1700q710004033 RH Position Light. Except STDRH Position Light. Except STD
-
1700r293750002 Tie-Rap 142 mm. Except STDTie-Rap 142 mm. Except STD
-
1700r250000805 Plastite Screw M4 X 10. Except STDPlastite Screw M4 X 10. Except STD
-
1700s705005667 LH Rear Reflector. Except STD, North AmericaLH Rear Reflector. Except STD, North America
-
1700s293750002 Tie-Rap 142 mm. Except STDTie-Rap 142 mm. Except STD
-
1700t219800275 LH Rear Reflector Ass'y. Except STD, Except North AmericaLH Rear Reflector Ass'y. Except STD, Except North America
-
1700t705005949 RH Rear Reflector. Except STD, North AmericaRH Rear Reflector. Except STD, North America
-
1700t219800276 RH Rear Reflector Ass'y. Except STD, Except North AmericaRH Rear Reflector Ass'y. Except STD, Except North America
-
1700u219800275 LH Rear Reflector Ass'y. Except STD, Except North AmericaLH Rear Reflector Ass'y. Except STD, Except North America
-
1700u219800276 RH Rear Reflector Ass'y. Except STD, Except North AmericaRH Rear Reflector Ass'y. Except STD, Except North America
-
1700v250100163 Pressure Nut. Except STDPressure Nut. Except STD
-
1700v250100163 Pressure Nut. Except STDPressure Nut. Except STD
-
1700w705007616 LH Inner Fender. Except STDLH Inner Fender. Except STD
-
1700w705007617 RH Inner Fender. Except STDRH Inner Fender. Except STD
-
1700x250000805 Plastite Screw M4 X 10. Except STDPlastite Screw M4 X 10. Except STD
-
1700x250000805 Plastite Screw M4 X 10. Except STDPlastite Screw M4 X 10. Except STD
-
1700y250000851 Torx Screw M6 X 14. Except STDTorx Screw M6 X 14. Except STD
-
1700y250000851 Torx Screw M6 X 14. Except STDTorx Screw M6 X 14. Except STD
-
1700z250200164 Flat washer M6. Except STDFlat washer M6. Except STD
-
1700z250200164 Flat washer M6. Except STDFlat washer M6. Except STD
-
1800a705004615 LH Front Fender, Steel Black. Package STDLH Front Fender, Steel Black. Package STD
-
1800a705004616 RH Front Fender, Steel Black. Package STDRH Front Fender, Steel Black. Package STD
-
1800b705010102 LH Painted Fender Front Support. Package STDLH Painted Fender Front Support. Package STD
-
1800b705010103 RH Painted Fender Front Support. Package STDRH Painted Fender Front Support. Package STD
-
1800c269500725 Nut Housing Ass'y. Package STDNut Housing Ass'y. Package STD
-
1800d250000048 Panel Nut M6 X 1.0. Package STDPanel Nut M6 X 1.0. Package STD
-
1800e207662054 Hex. Flanged Screw M6 X 20. Package STDHex. Flanged Screw M6 X 20. Package STD
-
1800f705010100 LH Painted Fender Rear Support. Package STDLH Painted Fender Rear Support. Package STD
-
1800f705010101 RH Painted Fender Rear Support. Package STDRH Painted Fender Rear Support. Package STD
-
1800g207662054 Hex. Flanged Screw M6 X 20. Package STDHex. Flanged Screw M6 X 20. Package STD
-
1800h705002389 Central Front Fender Support. Package STDCentral Front Fender Support. Package STD
-
1800k269500725 Nut Housing Ass'y. Package STDNut Housing Ass'y. Package STD
-
1800m705001767 LH Mudguard. Package STDLH Mudguard. Package STD
-
1800m705001768 RH Mudguard. Package STDRH Mudguard. Package STD
-
1800n704901160 Reflective Stripe. Package STDReflective Stripe. Package STD
-
1800p250000446 Torx Screw M6 X 20, Scotch Grip. Package STDTorx Screw M6 X 20, Scotch Grip. Package STD
-
1800q710003295 Position Light. Package STDPosition Light. Package STD
-
1800r293750002 Tie-Rap 142 mm. Package STDTie-Rap 142 mm. Package STD
-
1800s705002423 Amber Lateral Reflector. Package STDAmber Lateral Reflector. Package STD
-
2000207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
