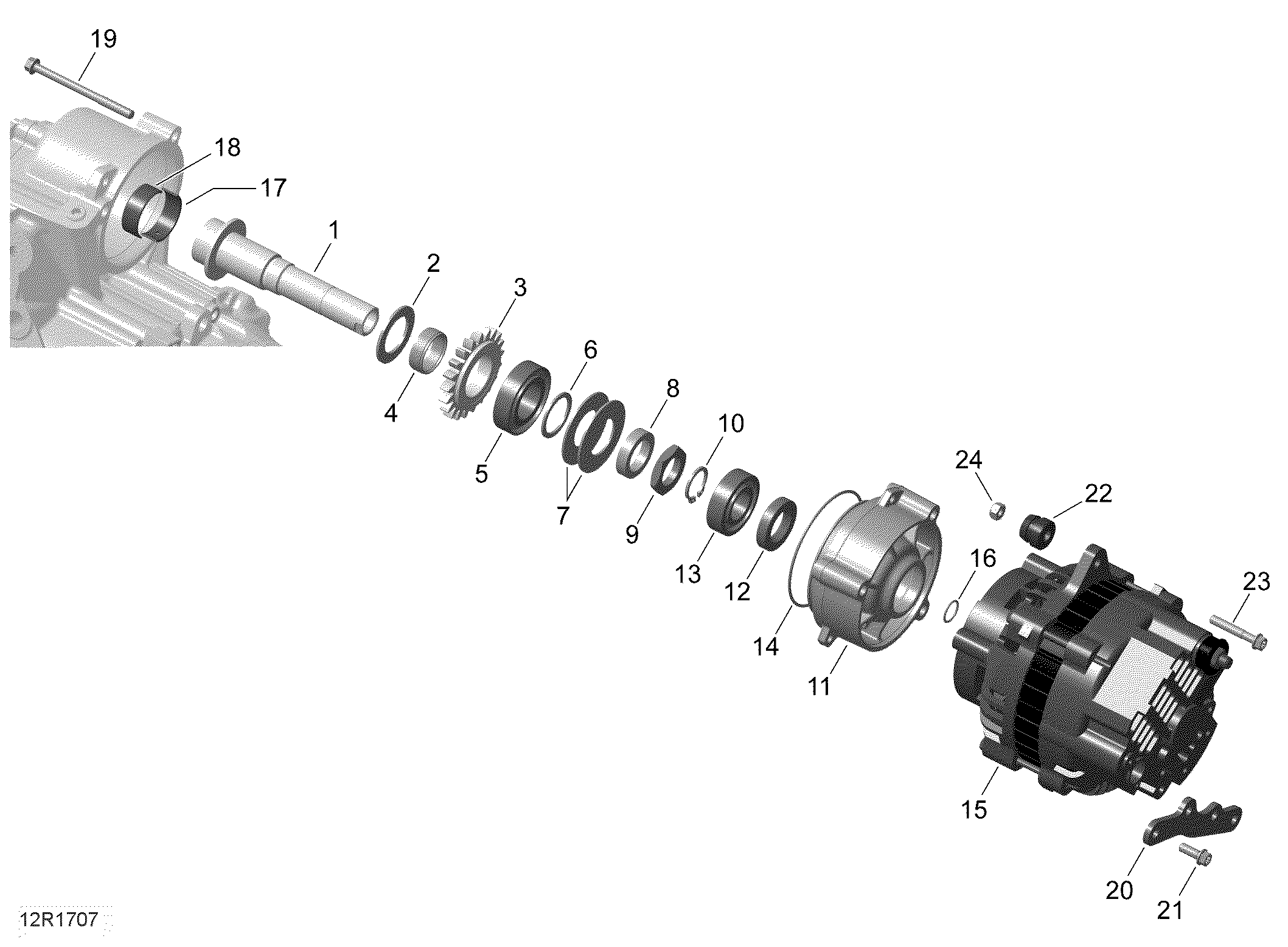

03- Alternator - All Models для BRP F3 - 2017
-
№АртикулНазвание
-
1420637122 Alternator Shaft Ass'y. Includes 1 to 10Alternator Shaft Ass'y. Includes 1 to 10
-
10420945665 Retaining RingRetaining Ring
-
11420210613 Alternator FlangeAlternator Flange
-
12420930267 Oil SealOil Seal
-
13420932660 Ball BearingBall Bearing
-
14420950490 O-RingO-Ring
-
15420685763 Alternator Ass'y. Includes 15 to 16Alternator Ass'y. Includes 15 to 16
-
16420430603 O-RingO-Ring
-
19420440657 Flanged Torx Screw M6 X 75Flanged Torx Screw M6 X 75
-
20420651711 Alternator SupportAlternator Support
-
21420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
22420201170 IsolatorIsolator
-
23420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
24420242371 Lock Nut M6Lock Nut M6
