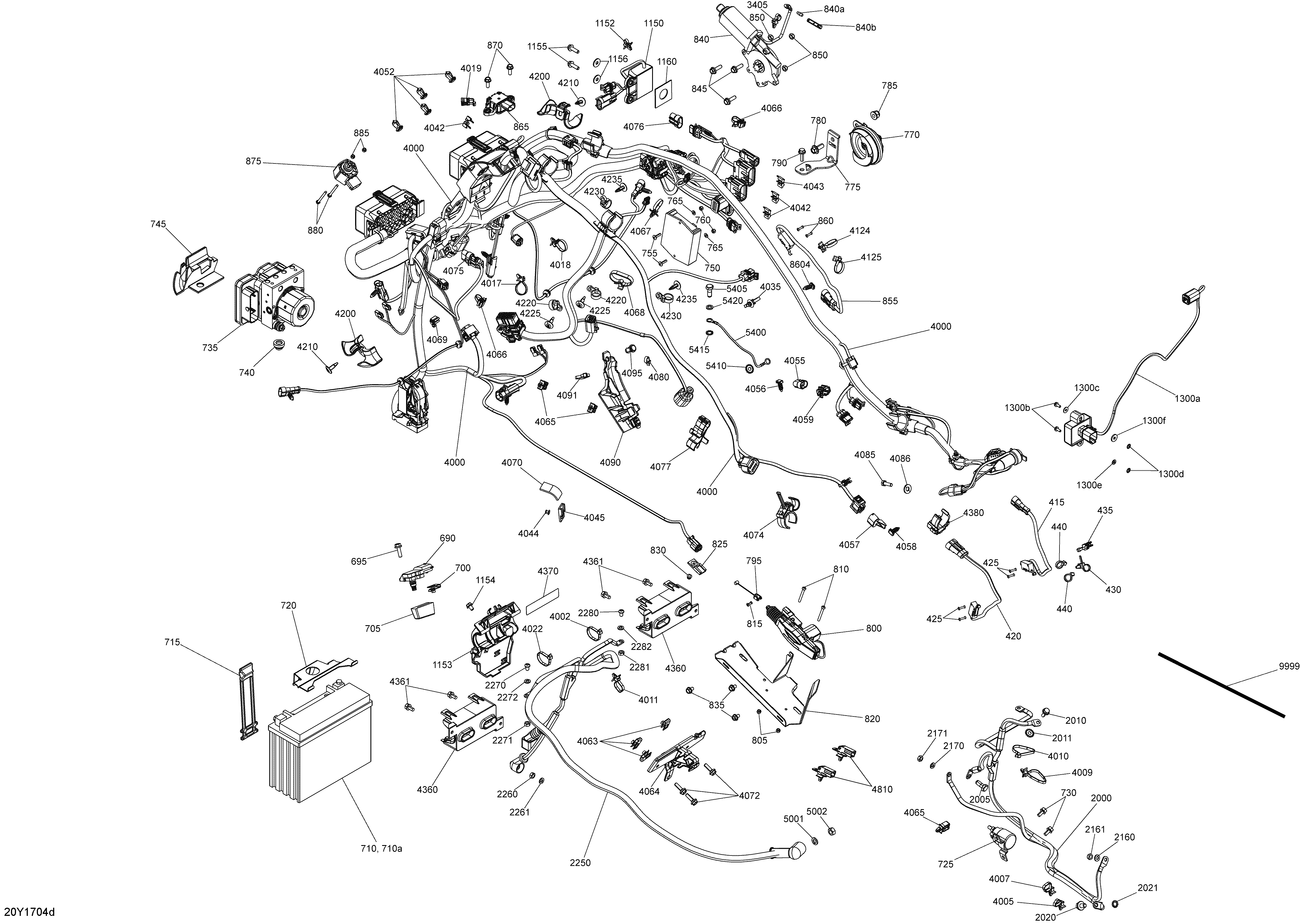

10- Electrical System - Lower - T, LTD для BRP F3 - 2017
-
№АртикулНазвание
-
35250000721 Torx ScrewTorx Screw
-
150250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
255a715900043 Bulb 12V 21WBulb 12V 21W
-
300710004421 USB OutletUSB Outlet
-
415710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
420710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
425293150150 Pop RivetPop Rivet
-
430293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
435710002899 Clip Tie-RapClip Tie-Rap
-
440293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
690707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
695207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
700250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
705707000586 FilterFilter
-
710410922962 Battery, 12 Volts, 21 Amperes. Includes 710 to 710aBattery, 12 Volts, 21 Amperes. Includes 710 to 710a
-
710a250000282 Battery Bolt KitBattery Bolt Kit
-
715520000528 LatchLatch
-
720710002893 Battery HolderBattery Holder
-
725710001364 Starter RelayStarter Relay
-
730210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
735219800375 VCM ModuleVCM Module
-
740710003279 Damper ShockDamper Shock
-
745710003996 VCM Harness ProtectorVCM Harness Protector
-
750710004883 PBM Module AssemblyPBM Module Assembly
-
755250000750 Torx Screw M4 X 16Torx Screw M4 X 16
-
760232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
765234041480 Flat Washer 4 mmFlat Washer 4 mm
-
770710004940 Horn. Man. Date Aug 1rst 2016 And UpHorn. Man. Date Aug 1rst 2016 And Up
-
770710004229 Horn. Man. Date Before Aug 1rst 2016Horn. Man. Date Before Aug 1rst 2016
-
775710005212 Horn Support. Man. Date Aug 1rst 2016 And UpHorn Support. Man. Date Aug 1rst 2016 And Up
-
775710004412 Black Horn Support. Man. Date Before Aug 1rst 2016Black Horn Support. Man. Date Before Aug 1rst 2016
-
780207682034 Hex. Flanged ScrewHex. Flanged Screw
-
785233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
790207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
795710002889 Reverse CableReverse Cable
-
800710003776 ActuatorActuator
-
805232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
810205444056 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
815390403000 Pop Rivet 5/32Pop Rivet 5/32
-
820710005642 Reverse Actuator SupportReverse Actuator Support
-
825270000141 ClipClip
-
830390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
835210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
840278003071 Control Gear Motor. Includes 840 to 840bControl Gear Motor. Includes 840 to 840b
-
840a278000231 Insulation SheathInsulation Sheath
-
840b278000230 Male TerminalMale Terminal
-
845207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
850232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
855710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
860293150150 Pop RivetPop Rivet
-
865710002677 Yaw Rate SensorYaw Rate Sensor
-
870210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
875219800354 Steering Position Sensor. Man. Date Before Aug 1rst 2016Steering Position Sensor. Man. Date Before Aug 1rst 2016
-
880207144044 Hex. Cap Screw. Man. Date Before Aug 1rst 2016Hex. Cap Screw. Man. Date Before Aug 1rst 2016
-
885232541484 Elastic Stop Nut M4. Man. Date Before Aug 1rst 2016Elastic Stop Nut M4. Man. Date Before Aug 1rst 2016
-
1150710004916 Dess ModuleDess Module
-
1152293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
1153710004308 Wire SupportWire Support
-
1154210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
1155210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
1156234062410 Flat Washer 6 mmFlat Washer 6 mm
-
1160293830091 Rubber BumperRubber Bumper
-
1300a710003142 Configuration Module. AustraliaConfiguration Module. Australia
-
1300b250000674 Hex. Screw Forming M4 X 16. Australia Man. Date Before Aug 1rst 2016Hex. Screw Forming M4 X 16. Australia Man. Date Before Aug 1rst 2016
-
1300b250000955 Hex. Screw Forming M4 X 30. Australia Man. Date Aug 1rst 2016 And UpHex. Screw Forming M4 X 30. Australia Man. Date Aug 1rst 2016 And Up
-
1300c234042600 Flat Washer 4 mm, Stainless. AustraliaFlat Washer 4 mm, Stainless. Australia
-
1300d211100002 Push Nut. AustraliaPush Nut. Australia
-
1300e213200016 Flat Washer, Emhart. AustraliaFlat Washer, Emhart. Australia
-
1300f234052400 Flat Washer 5 mm, Stainless. AustraliaFlat Washer 5 mm, Stainless. Australia
-
2000710005322 Starter Cable. Man. Date Aug 1rst 2016 And UpStarter Cable. Man. Date Aug 1rst 2016 And Up
-
2000710004738 Start Cable. Man. Date Before Aug 1rst 2016Start Cable. Man. Date Before Aug 1rst 2016
-
2005207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
2010207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2011250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
2020207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
2021234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
2160234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2161232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
2170234161601 Lock Washer Helical M6Lock Washer Helical M6
-
2171232061600 Hex. Nut M6Hex. Nut M6
-
2250710004736 Positive CablePositive Cable
-
2260232061600 Hex. Nut M6Hex. Nut M6
-
2261234161601 Lock Washer Helical M6Lock Washer Helical M6
-
2270205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
2271232061600 Hex. Nut M6Hex. Nut M6
-
2272234161601 Lock Washer Helical M6Lock Washer Helical M6
-
2280205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
2281232061600 Hex. Nut M6Hex. Nut M6
-
2282234161601 Lock Washer Helical M6Lock Washer Helical M6
-
3405515175220 Tie RapTie Rap
-
4000710005319 Main Harness SM6. SM6 Man. Date Aug 1rst 2016 And UpMain Harness SM6. SM6 Man. Date Aug 1rst 2016 And Up
-
4000710005320 Main Harness SE6. SE6 Man. Date Aug 1rst 2016 And UpMain Harness SE6. SE6 Man. Date Aug 1rst 2016 And Up
-
4000710004601 Harness, Frame. SM6 Man. Date Before Aug 1rst 2016Harness, Frame. SM6 Man. Date Before Aug 1rst 2016
-
4000710004602 Harness, Frame. SE6 Man. Date Before Aug 1rst 2016Harness, Frame. SE6 Man. Date Before Aug 1rst 2016
-
4002414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4005293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4007293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4009293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4010414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4011293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4017515175220 Tie RapTie Rap
-
4018515175220 Tie RapTie Rap
-
4019710005037 ClipClip
-
4022414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4042710001222 LockLock
-
4043710001222 Lock. SM6Lock. SM6
-
4044390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
4045270000141 ClipClip
-
4052293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4055710004906 Connector PlugConnector Plug
-
4056710002033 HolderHolder
-
4057710004902 Connector PlugConnector Plug
-
4058710002033 HolderHolder
-
4059710004903 Connector PlugConnector Plug
-
4063250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
4064710004256 Connector SupportConnector Support
-
4065709000634 Harness SupportHarness Support
-
4066293750058 Locking Tie RapLocking Tie Rap
-
4067293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4068710004947 Tie RapTie Rap
-
4069293750063 Clip Tie-RapClip Tie-Rap
-
4070709000401 Rubber PadRubber Pad
-
4072207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4074710004613 SupportSupport
-
4075710004901 Connector Plug. North AmericaConnector Plug. North America
-
4076710004901 Connector Plug. North AmericaConnector Plug. North America
-
4077710004669 Wire SupportWire Support
-
4080414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4085207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
4086234281704 Spring Washer M8Spring Washer M8
-
4090710004794 Harness HolderHarness Holder
-
4091414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4095293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4124293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4125293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4200710004931 Harness HolderHarness Holder
-
4210414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
4220710004424 Tie RapTie Rap
-
4225414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
4230710004424 Tie Rap. SE6Tie Rap. SE6
-
4235414745900 Tuflock Phillips Plastic Screw. SE6Tuflock Phillips Plastic Screw. SE6
-
4360710004472 Fuse Holder SupportFuse Holder Support
-
4361210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4370710003077 R/L Label DecalR/L Label Decal
-
4380710004299 Cable SupportCable Support
-
4810710004456 Connector With Cap. Package TConnector With Cap. Package T
-
5001234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
5002232081414 Hex. Nut M8Hex. Nut M8
-
5400710005134 Fuel Tank CableFuel Tank Cable
-
5405207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
5410250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
5415234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
5420250200111 WasherWasher
-
8604710002033 HolderHolder
-
9999710005067 OBD I Harness. EURO4OBD I Harness. EURO4
