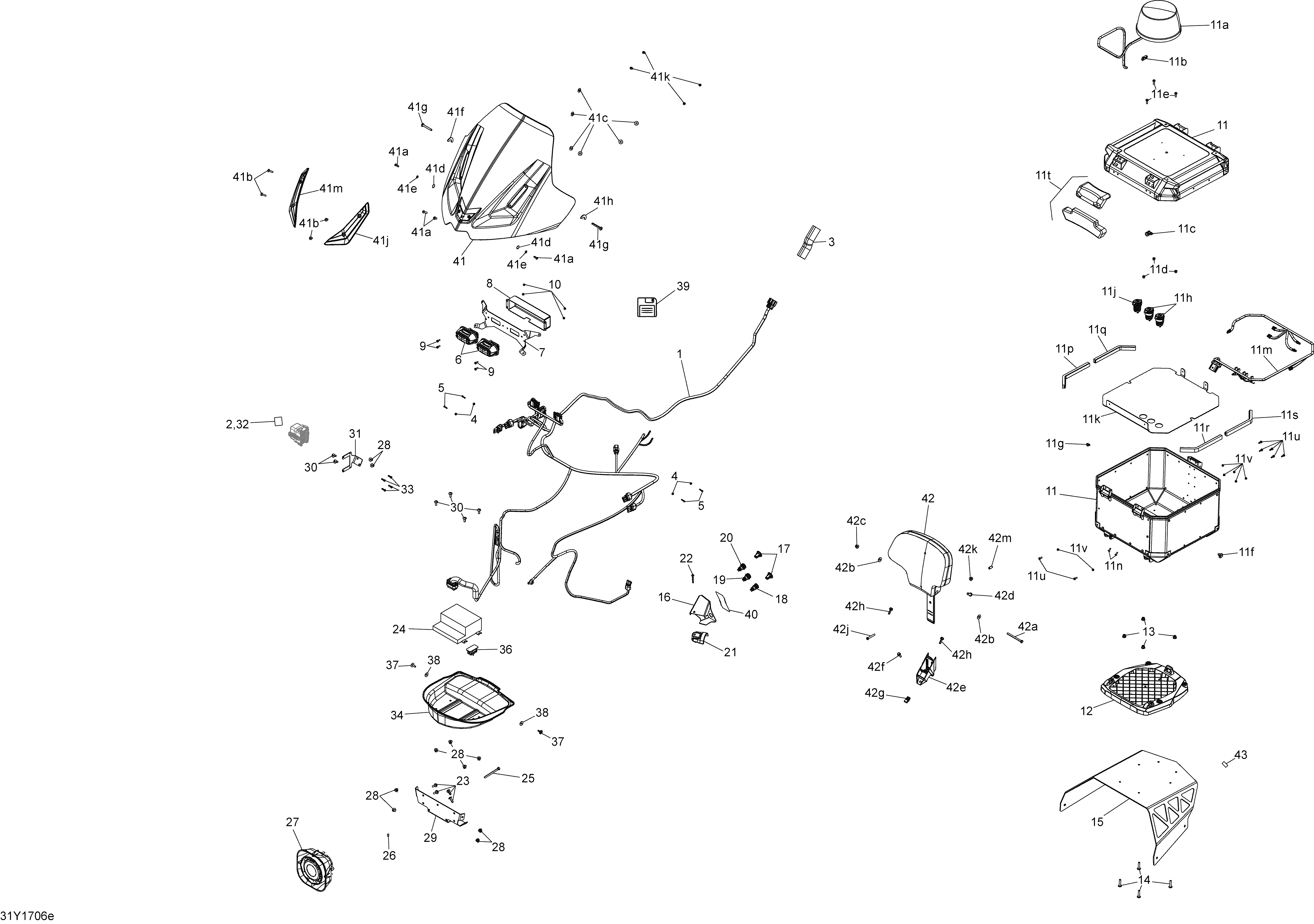

09- Accessories - Police Package - Europe для BRP F3 - 2017
-
№АртикулНазвание
-
1710005570 Secondary HarnessSecondary Harness
-
2710005571 Decal Fuse RelayDecal Fuse Relay
-
3293740058 Wire CoverWire Cover
-
4232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
5710004811 Socket Screw M3 X 14Socket Screw M3 X 14
-
6710005573 Blue Flasher Ass'yBlue Flasher Ass'y
-
7705010363 Console Flasher BracketConsole Flasher Bracket
-
8705010364 Harness CoverHarness Cover
-
9208641260 Phillips Screw M4 X 12Phillips Screw M4 X 12
-
10232541434 Elastic Stop NutElastic Stop Nut
-
11>11v710005575 Storage Box Ass'y. Incl 11 to 11vStorage Box Ass'y. Incl 11 to 11v
-
11a710005576 Flasher Ass'yFlasher Ass'y
-
11b515177442 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
11c293650256 ClampClamp
-
11d233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
11e210251650 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
11f293730018 Mount DartMount Dart
-
11g293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
11h710001248 Outlet DCOutlet DC
-
11j710004421 USB OutletUSB Outlet
-
11k710004813 Mounting PlateMounting Plate
-
11m710005312 Storage Box HarnessStorage Box Harness
-
11n250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
11p293200093 Neoprene SealNeoprene Seal
-
11q293200093 Neoprene SealNeoprene Seal
-
11r293200093 Neoprene SealNeoprene Seal
-
11s293200093 Neoprene SealNeoprene Seal
-
11t708200683 Pad KitPad Kit
-
11u208641260 Phillips Screw M4 X 12Phillips Screw M4 X 12
-
11v232541434 Elastic Stop NutElastic Stop Nut
-
12705010369 Storage Box SupportStorage Box Support
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
15705010370 Formed SupportFormed Support
-
16710005688 Switch SupportSwitch Support
-
17708400046 CapCap
-
18710005681 Flasher SwitchFlasher Switch
-
19710005684 Sirene Switch CTRL1Sirene Switch CTRL1
-
20710005685 Sirene Switch CTRL2Sirene Switch CTRL2
-
21709401578 GPS ClampGPS Clamp
-
22710005752 Bolt ?-20 X 5/16Bolt ?-20 X 5/16
-
23250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
24710005572 Siren AmplifierSiren Amplifier
-
25291004284 Thread Screw Filet 1/4-20 X 1 1/4Thread Screw Filet 1/4-20 X 1 1/4
-
26211200025 Lock Washer 1/4''Lock Washer 1/4''
-
27710004839 SirenSiren
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29710004838 Amplifier SupportAmplifier Support
-
30250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
31710004844 Fuse Box SupportFuse Box Support
-
32710001046 Fuse, 25 AMPFuse, 25 AMP
-
33250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
34705011901 Double BottomDouble Bottom
-
36710001999 Plug CarlingPlug Carling
-
37293150186 Pop Rivet 3/16Pop Rivet 3/16
-
38517124300 WasherWasher
-
39710005113 Speed ProgSpeed Prog
-
40704906347 Decal Police PackDecal Police Pack
-
41>41m219400746 Windshield Kit. Incl 41 to 41mWindshield Kit. Incl 41 to 41m
-
41a250000652 Socket Screw M5 X 16Socket Screw M5 X 16
-
41b250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
41c250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
41d293370112 Retaining RingRetaining Ring
-
41e234051670 Flat Washer M5Flat Washer M5
-
41f293830176 Rubber WasherRubber Washer
-
41g250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
41h293830176 Rubber WasherRubber Washer
-
41j705004961 LH Windshield MouldingLH Windshield Moulding
-
41k250100152 Cap Nut M5Cap Nut M5
-
41m705004962 RH Windshield MouldingRH Windshield Moulding
-
42>42m219400498 Backrest Kit. Incl 42 to 42mBackrest Kit. Incl 42 to 42m
-
42a207068060 Hex. Screw M6 x 80Hex. Screw M6 x 80
-
42b234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
42c233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
42d250000885 Head Screw M8 x 20Head Screw M8 x 20
-
42e708001678 Backrest SliderBackrest Slider
-
42f210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
42g250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
42h207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
42j205464060 Socket Screw M6 X 40Socket Screw M6 X 40
-
42k233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
42m515176141 CapCap
-
43704906369 Decal Maximum LoadDecal Maximum Load
